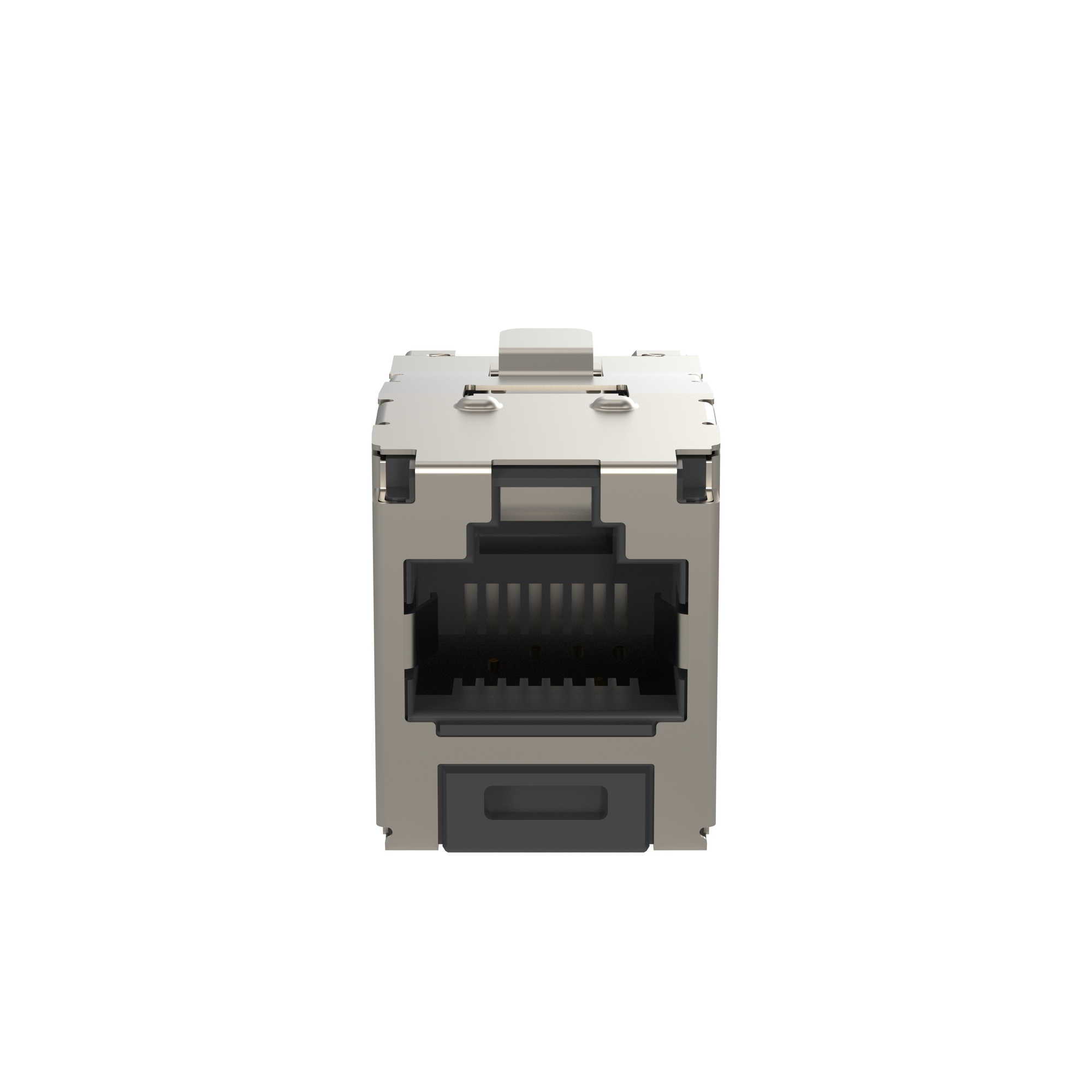

CJS688TGY PanNet TX6 Plus 8-Position 8-Wire Shielded TG Style Jack Module, Cat 6 RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Tin Plated Over Phosphorous Bronze, Black
- MFR:
- Panduit
- MFR #:
- CJS688TGY
- UPC:
- 074983035632
- Item #:
- 477254
CJS688TGY PanNet TX6 Plus 8-Position 8-Wire Shielded TG Style Jack Module, Cat 6 RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Tin Plated Over Phosphorous Bronze, Black
- MFR #:
- CJS688TGY
- UPC:
- 074983035632
- Item #:
- 477254
The Mini-Com Cat 6 Shielded RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Shielded Modular Patch Panels and Faceplates. The jack module is black.
| Catalog Number | CJS688TGY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Costa Rica |
| Made in USA | No |
| Application | Shielded |
| Cable Entry | T568A/T568B |
| Color | Black |
| Material | ABS/Tin Plated Over Phosphorous Bronze//Plastic |
| Standard | Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz, Complies with ANSI/TIA-1096A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Pr |
| UPC | 074983035632 |
| GTIN | 00074983035632 |
| Item Type | Jack Module |
| Width | 0.62 |
| Width UOM | Inch |
| Depth | 1.5 IN |
| Cross Reference Products | 3M VOL-OCK6-F|Belden AX104596|Lcom TSP8048C5S |
