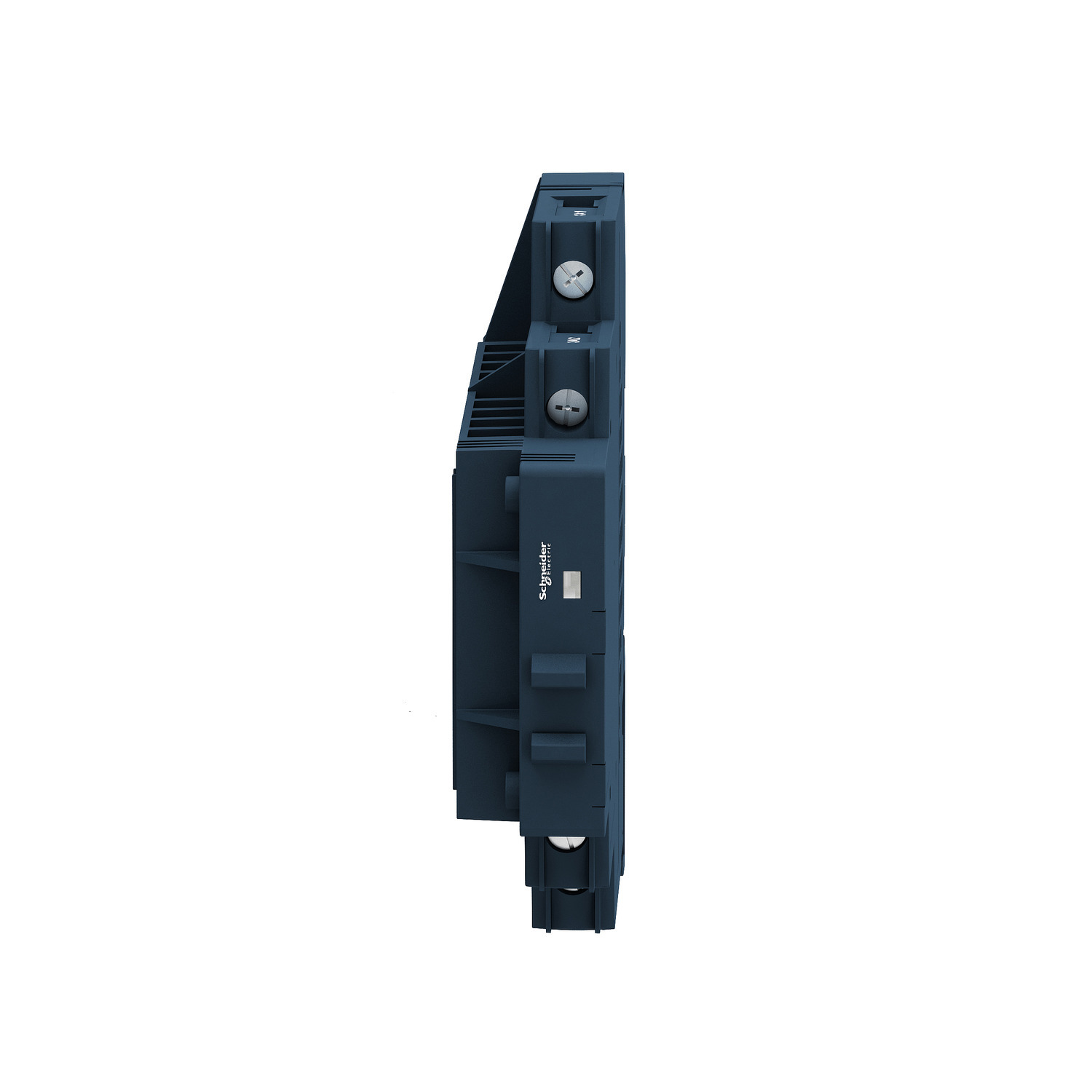

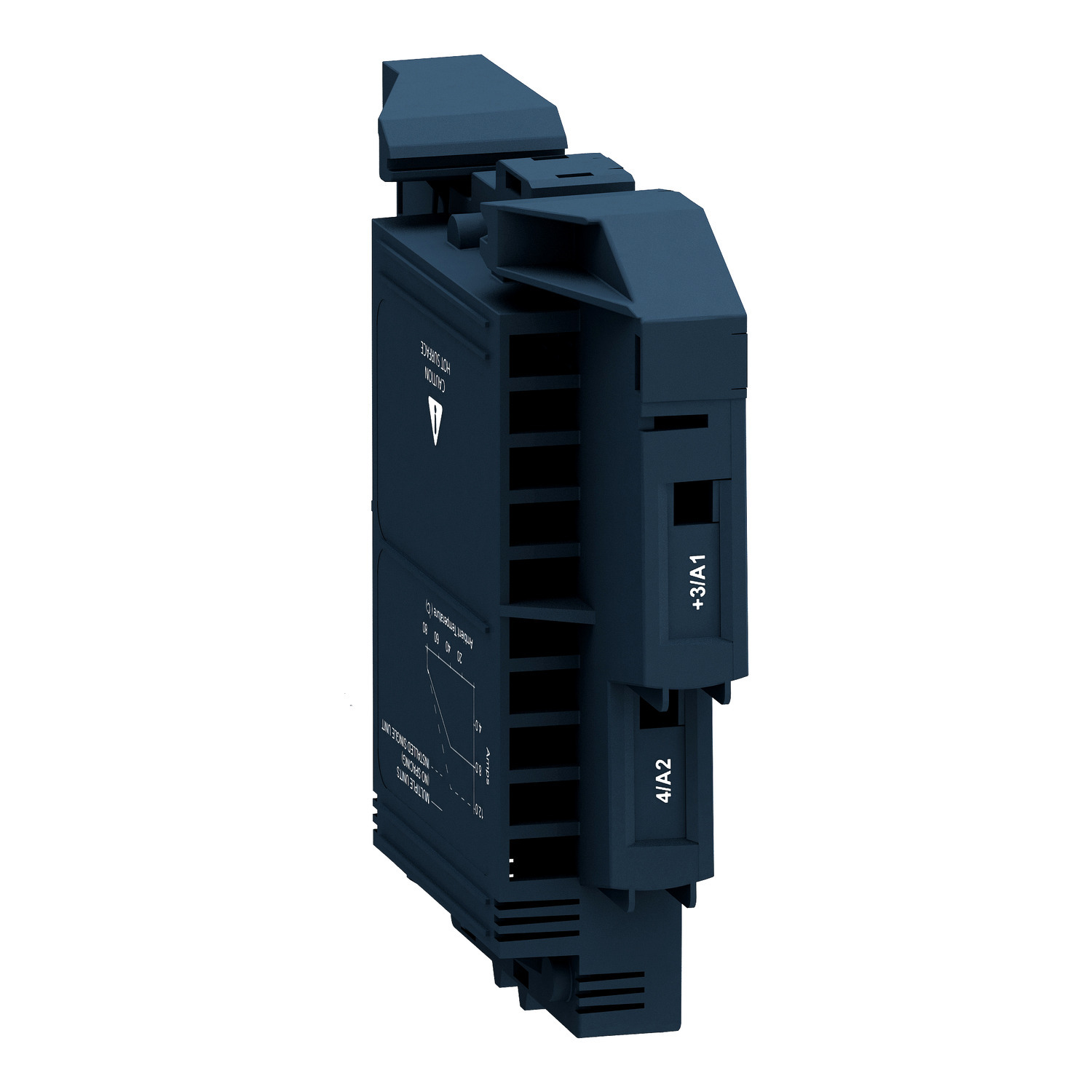

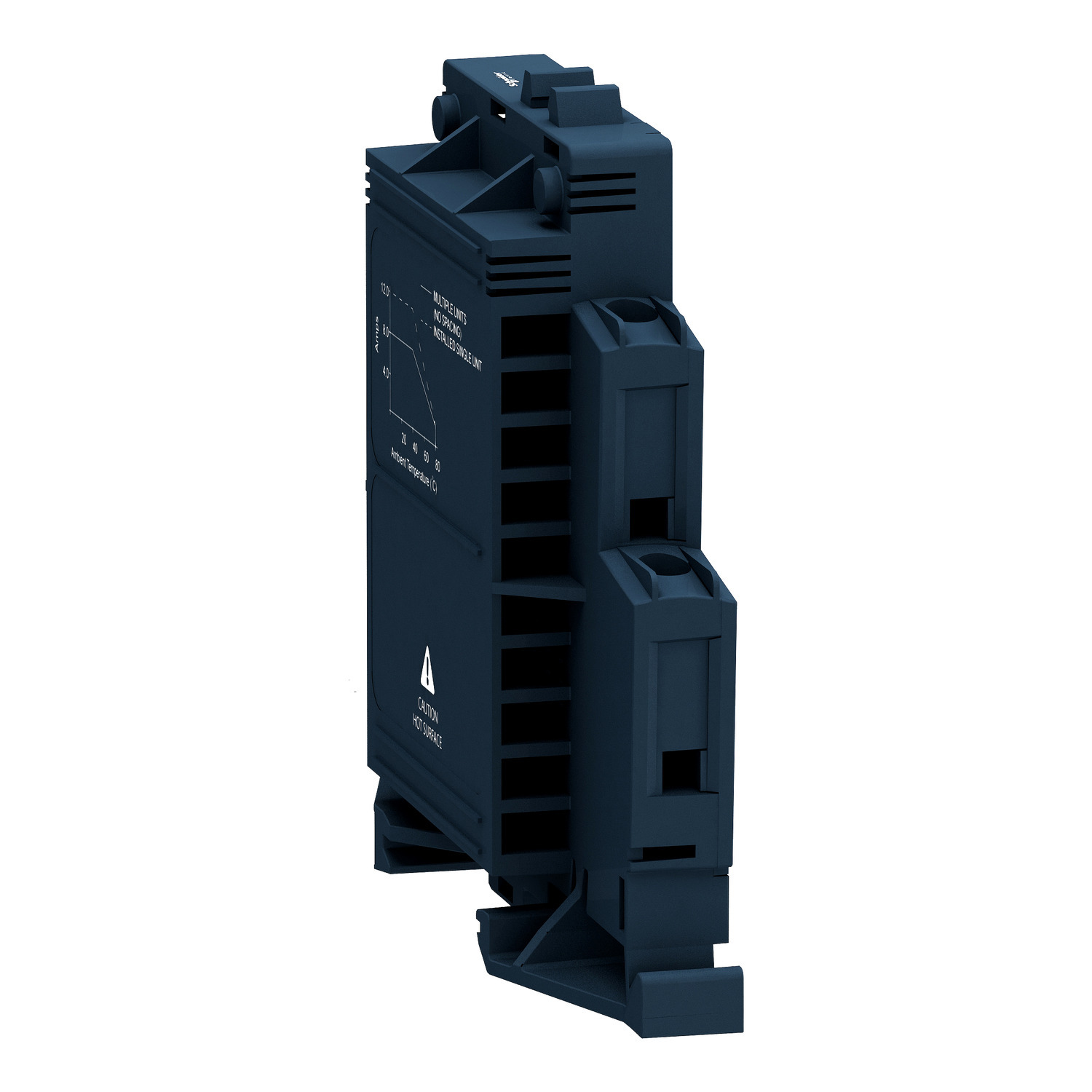

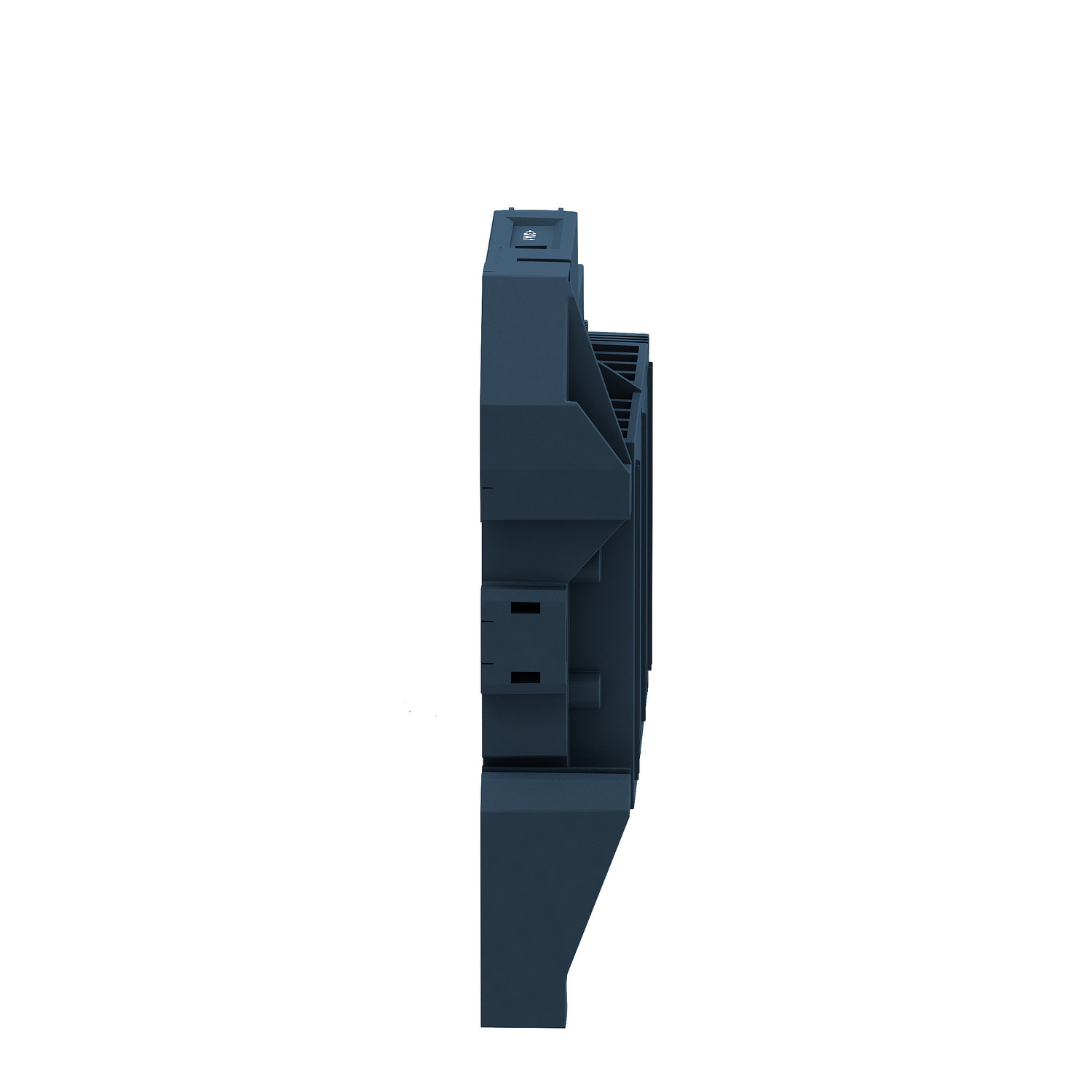

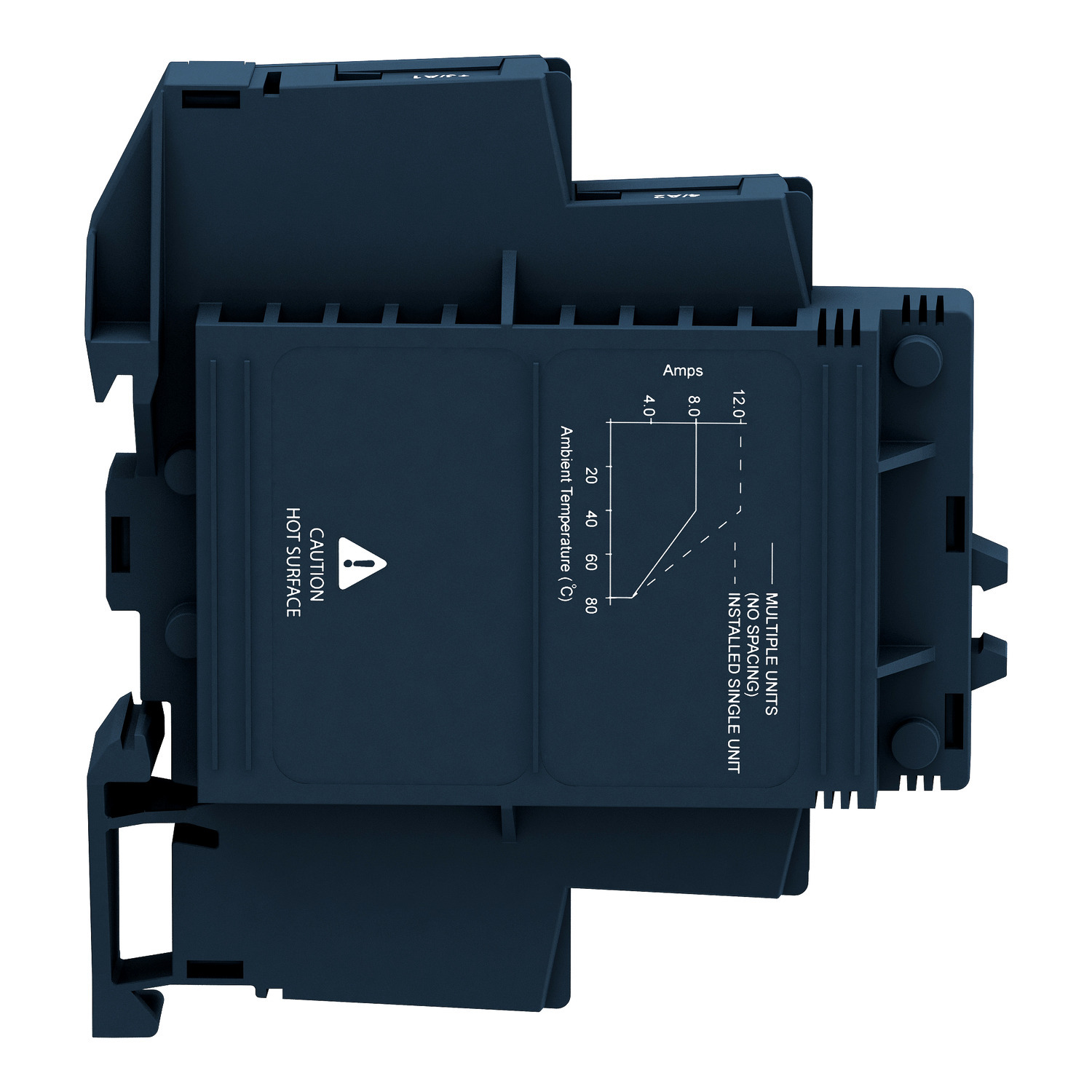

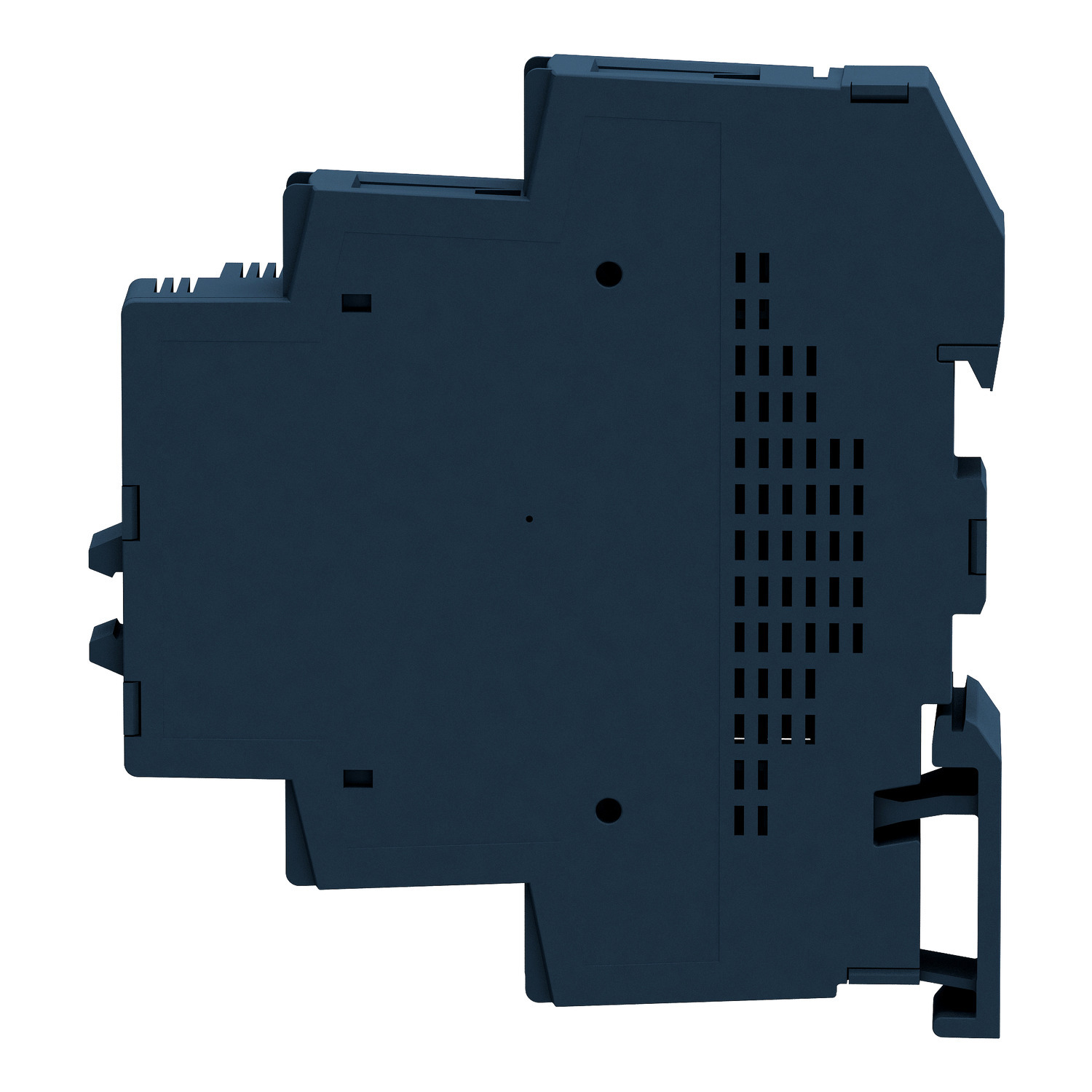

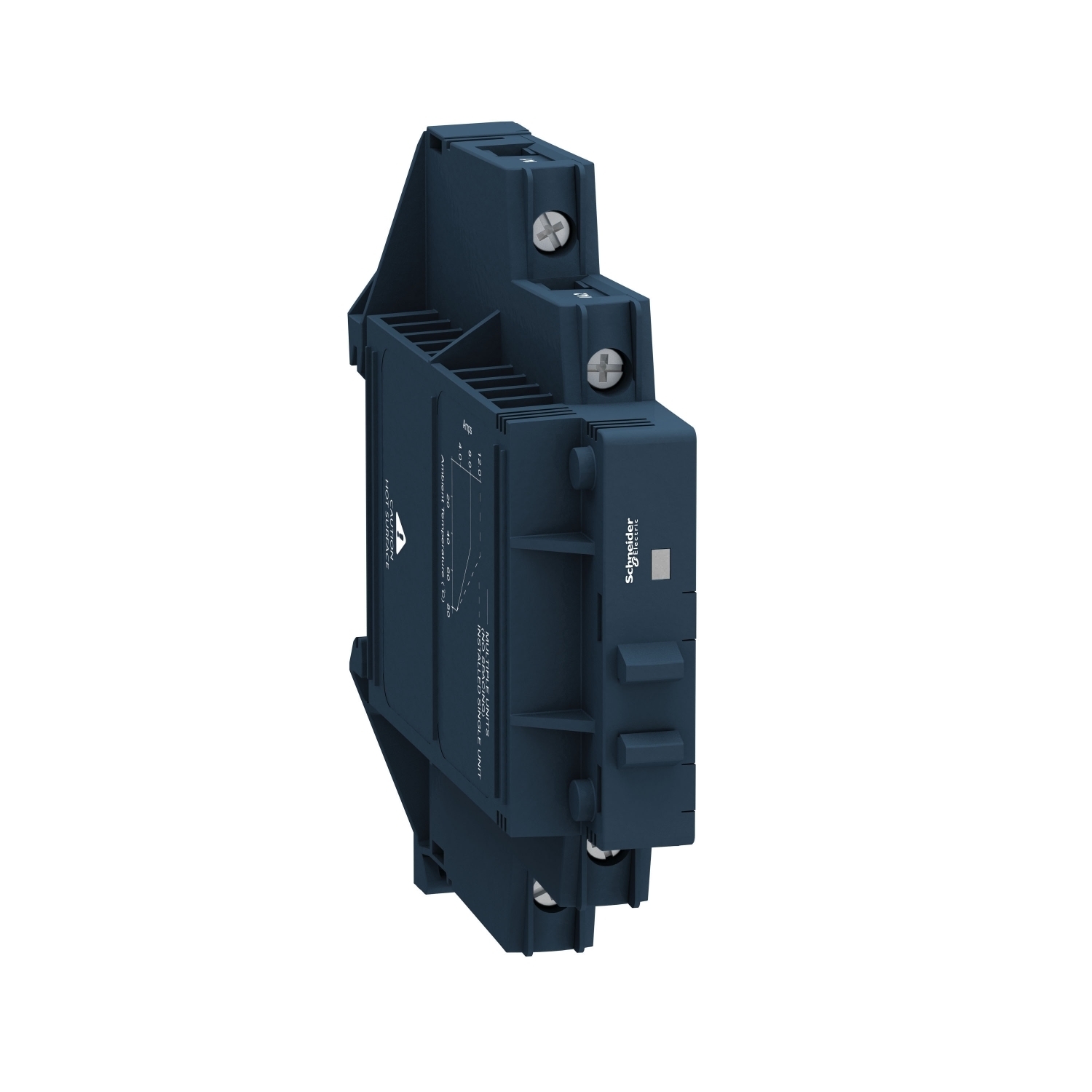

SSM1D212BD Zelio 1-Channel 1-Phase Solid State Relay, 12 A, 1NO 1 Form A SPST Contact, 4 to 32 V DC V Coil
- MFR:
- Schneider Electric
- MFR #:
- SSM1D212BD
- Item #:
- 477101
SSM1D212BD Zelio 1-Channel 1-Phase Solid State Relay, 12 A, 1NO 1 Form A SPST Contact, 4 to 32 V DC V Coil
- MFR #:
- SSM1D212BD
- Item #:
- 477101
This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Manuals & Documentation
| Catalog Number | SSM1D212BD |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Mexico |
| Made in USA | No |
| Phase | 1 |
| Resistance | 0.045 Ohm on-state |
| Response Time | 0.6 ms (turn-on);0.3 ms (turn-off) |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267287235&lang=en-us |
| GTIN | 03606480579462 |
| Item Type | Modular DIN rail relay |
