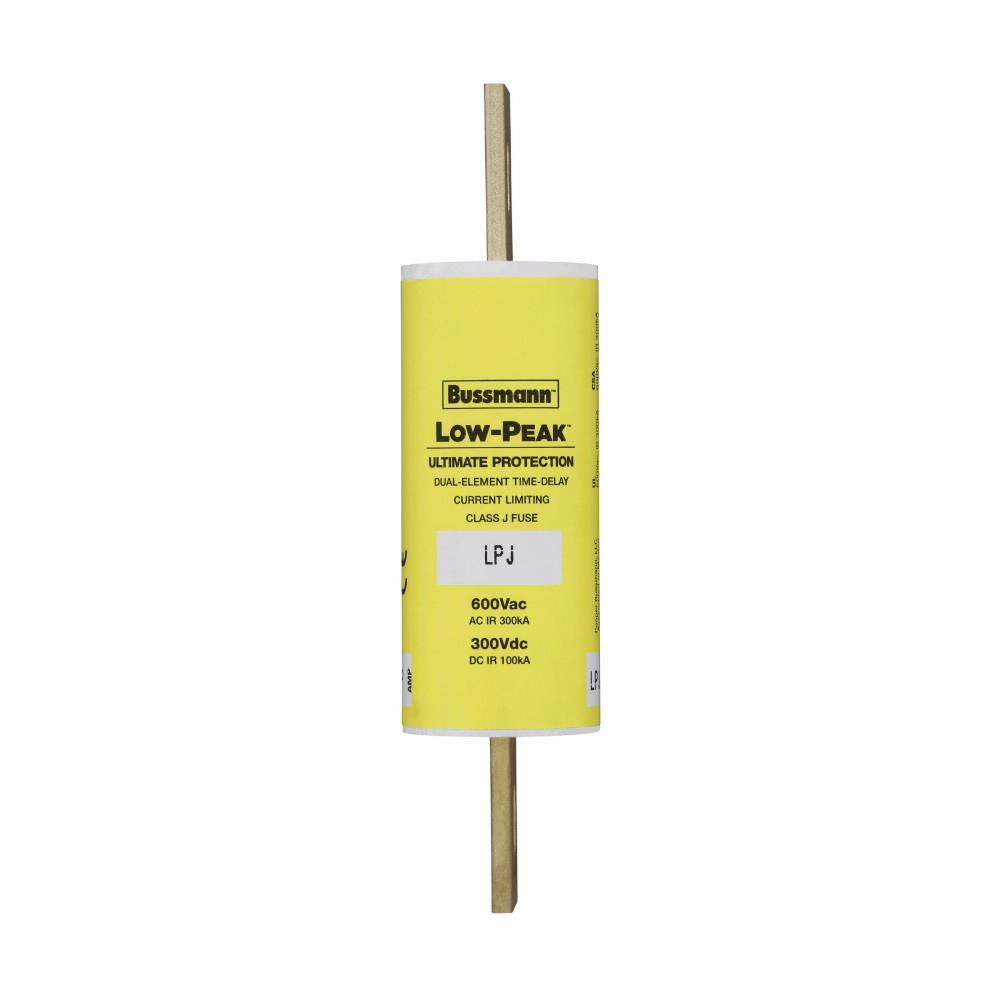

LPJ-70SP Low-Peak Current Limiting Time Delay Fuse, 70 A, 600 V AC/300 V DC, 300/100 kA, Class J, Cartridge Body

MFR:
Eaton Bussmann
MFR #:
LPJ-70SP
UPC:
051712523370
Item #:
47570

Bussmann's UL Class J fuse products extend both our Low-Peak family of products with our LPJ_SP and LPJ_SPI dual-element, time-delay fuses as well as our Limitron line offering fast-acting JKS fuses. The LPJ fuses provide industry leading 300,000 amp interrupting rating at 600Vac RMS Sym and 100kA Vdc while delivering a minimum of 10 seconds of 500 percent rated current ride-through performance which is ideal for sizing of high inrush loads. The LPJ products are available with optional permanent replace fuse indication. These UL Class J products in sizes 1 to 600 amps provide exceptional performance at 600 Vac and 300 Vdc (see spec sheets for specific details) in a compact size rejecting footprint

Manuals & Documentation
Catalog Number LPJ-70SP
Manufacturer Eaton Bussmann
Brand Eaton Bussmann Series
Country of Origin Mexico
Made in USA No
Amperage Rating 70
Application Branch Circuit Breaker Panelboard Mains, Industrial Control, Machinery Disconnects, Power Panelboards
Connection Bolted Blade End X Bolted Blade End
Interrupt Rating 300000 Amp (RMS Symmetrical UL), 100000 Amp (DC)
Response Time 10 S at 500%
Standard UL, CSA C22.2, CE
UPC 051712523370
GTIN 00051712523370
Item Type Current Limiting, Time Delay
Size 1.13 In Diameter X 4.63 In Length
Voltage Rating 600 Vac, 300 Vdc
