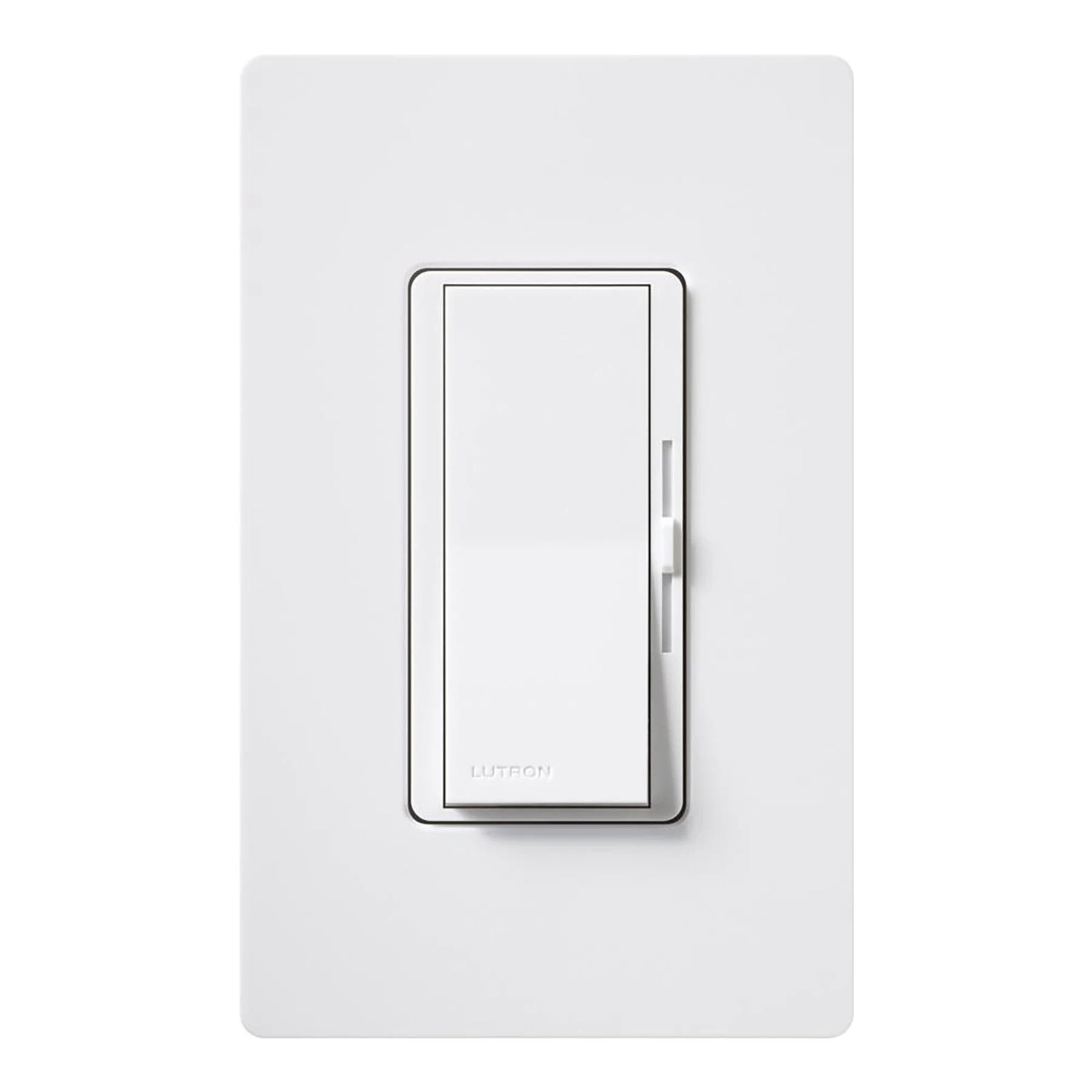

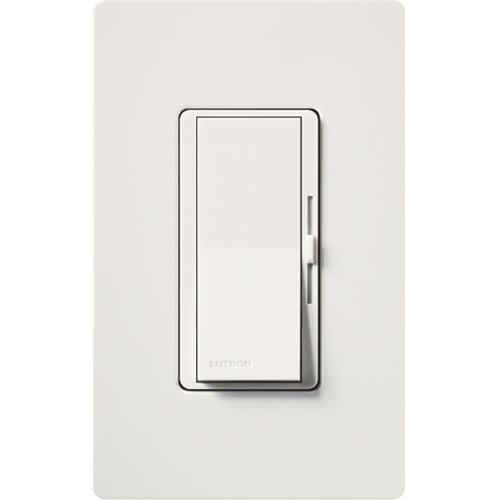

DVCL-253PH-WH Diva LED+ Dimmer Switch, No Neutral Required, 250W LED, 1 Pole/3-Way, 120V, White
- MFR:
- Lutron Electronics
- MFR #:
- DVCL-253PH-WH
- UPC:
- 784276092043
- Item #:
- 474176
DVCL-253PH-WH Diva LED+ Dimmer Switch, No Neutral Required, 250W LED, 1 Pole/3-Way, 120V, White
- MFR #:
- DVCL-253PH-WH
- UPC:
- 784276092043
- Item #:
- 474176

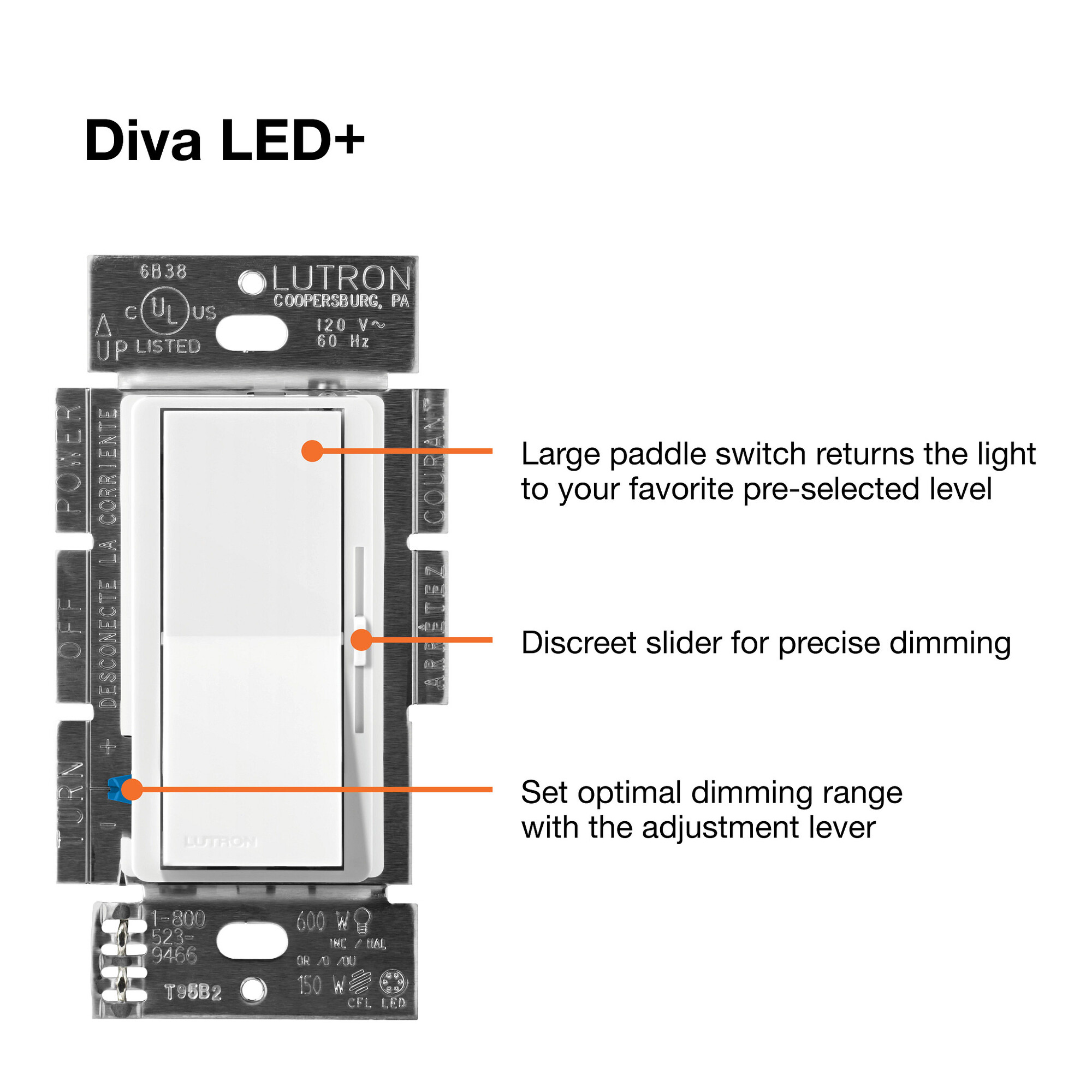

The Diva 250-Watt LED+ dimmer switch works with dimmable LED and CFL screw-in bulbs up to 250-Watt and is also compatible with up to 600-Watt of standard incandescent and halogen bulbs, allowing you to control all 4 bulb types on the same circuit. It is designed to control a broad range of dimmable LED and CFL bulbs from a variety of brands including Philips, Cree, GE, EcoSmart and Lighting Science. With the same features as Lutron's Diva dimmer switch, the large paddle switch turns the light on/off and returns to your favorite setting. The discreet slider adjusts the light level to suit any activity. Coordinating Claro wall plate sold separately.
Manuals & Documentation
| Catalog Number | DVCL-253PH-WH |
| Manufacturer | Lutron Electronics |
| Brand | Lutron |
| Actuator | Paddle switch |
| Application | Lighting Control |
| Color | White |
| Connection | Wire Leads |
| Enclosure | Plastic |
| Frequency Rating | 60 HZ |
| Insulation | Plastic |
| Material | Plastic/Metal |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Controls 250 W dimmable LED/CFL (screw-base), 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads. Paddle turns on/off. Slide up to brighten, down to dim. Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents. |
| Standard | UL, CSA, NEMA SSL-7A Type 2 |
| UPC | 784276092043 |
| GTIN | 00784276092043 |
| Item Type | Dimmer, 3-way/single-pole, clamshell packaging |

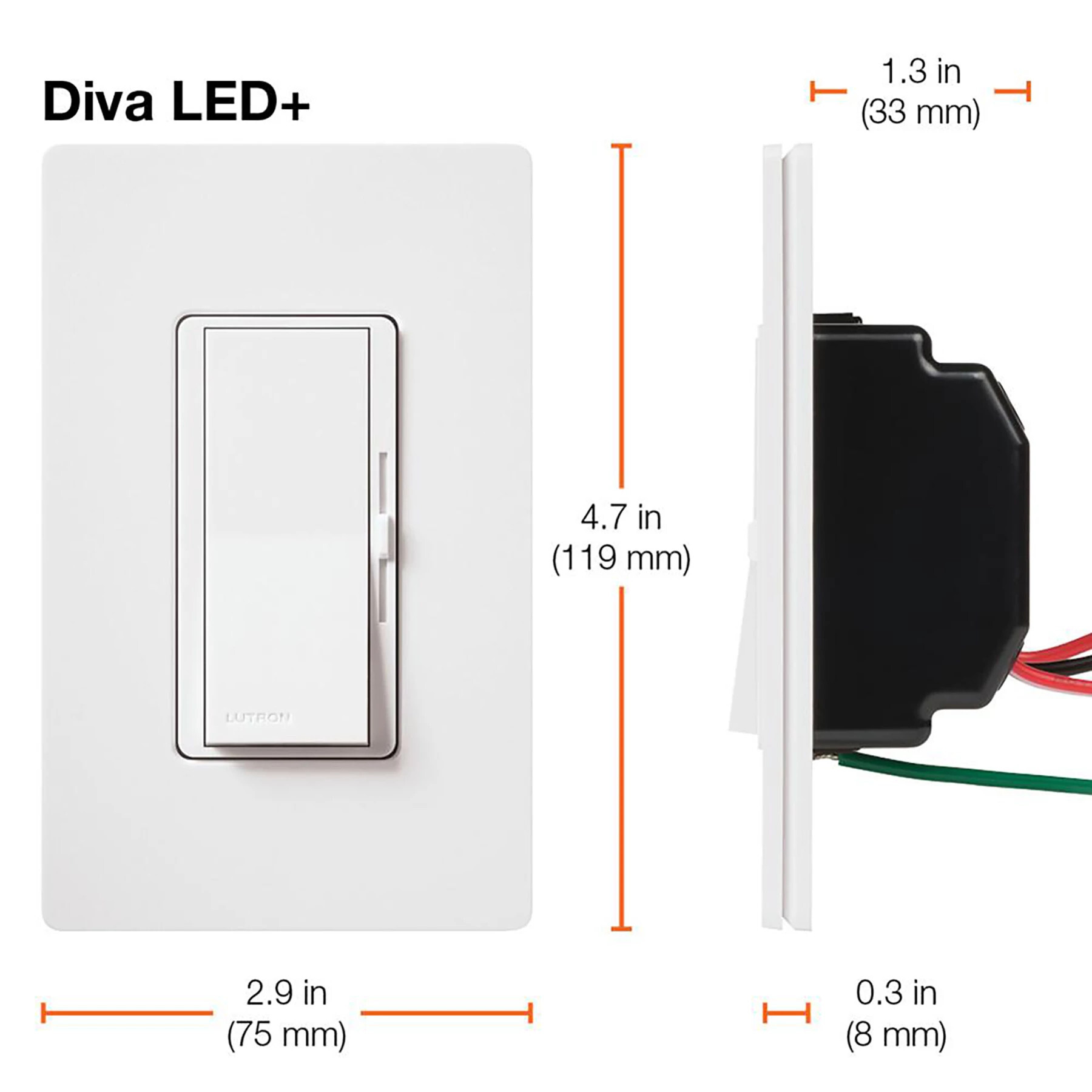

| Size | 4.69 x 2.94 |
| Environmental Conditions | Indoor use only |
| Operating Temperature | 32 to 104 F |
| Voltage Rating | 120 |
| Wattage | 600 W |
