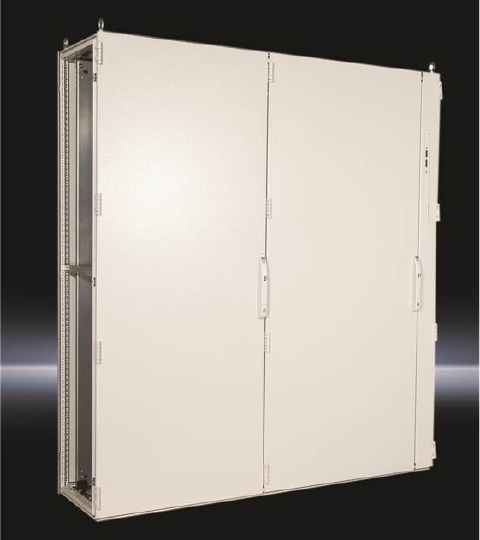

9951148 TS8 Compact Disconnect Enclosure, 63 in W x 24 in D x 79 in H, NEMA 12/IP55, Carbon Steel

MFR:
Rittal
MFR #:
9951148
UPC:
639889874442
Item #:
473355

TS 8 Flange Mount Disconnect Enclosure, material: Enclosure frame: Sheet steel, 1.5 mm, Roof: Sheet steel, 1.5 mm, Gland plates: Sheet steel, 1.5 mm, Rear panel: Sheet steel, 1.5 mm, Door: Sheet steel, 2.0 mm, Mounting plate: Sheet steel 3.0 mm, surface: Enclosure frame: Dipcoat-primed, Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint, Mounting plate and gland plates: Zinc-plated, color: RAL 7035, supply includes: TS 8 enclosure frame with doors and roof plate, Rear panel, Gland plate, Mounting plate, 4 eyebolts, Padlock Comfort handle, Flange Door with Low Amperage Adapter Plate Pre-Installed, Ride-Up Roller 4538000 Pre-Installed

Catalog Number 9951148
Manufacturer Rittal
Brand Rittal Corp
Country of Origin United States
Made in USA Yes
Application Commercial, Industrial
Color RAL 7035
Material Carbon Steel
Mounting Flange Mount
NEMA Rating 12
Special Features Features: Easy To Follow Installation Instructions, Compatible with all Standard TS 8 Accessories
Standard UL Listed, cUL Listed
RoHS Indicator Under Review
UPC 639889874442
GTIN 00639889874442
Item Type Compact Disconnect Enclosure
Length 23.6220
Length UOM Inch
Width 62.9921
Width UOM Inch
Height 78.7402
Height UOM Inch
Weight 546.000
Weight UOM Pounds
Size 79 (H) x 63 (W) x 24 (D)
