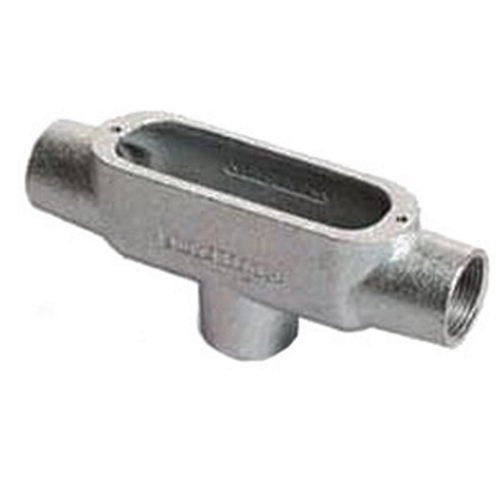

TB-75 Type TB Conduit Outlet Body, 3/4 in Hub, 7 cu-in, Malleable Iron, Zinc Electroplated/Aluminum Enamel
- MFR:
- O-Z/Gedney
- MFR #:
- TB-75
- UPC:
- 783126522464
- Item #:
- 47326
TB-75 Type TB Conduit Outlet Body, 3/4 in Hub, 7 cu-in, Malleable Iron, Zinc Electroplated/Aluminum Enamel
- MFR #:
- TB-75
- UPC:
- 783126522464
- Item #:
- 47326
Manuals & Documentation
| Catalog Number | TB-75 |
| Manufacturer | O-Z/Gedney |
| Brand | O-Z/Gedney |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Rigid Conduit And IMC |
| Connection | Tapered FNPT |
| Finish | Zinc Electroplated With Aluminum Enamel |
| Hub Size | 44624 |
| Material | Malleable Iron |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Raintight when used with gasketed covers; Malleable iron suitable for use in concrete; Complete interchangeability with other manufacturers style 5 or 35 conduit bodies; Internal volume and maximum wire capacity clearly marked on castings; Suitable for wet locations when used with gasketed covers |
| Standard | Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| UPC | 783126522464 |
| GTIN | 00783126522464 |
| Item Type | Type TB Conduit Body |
| Length | 38139 |
| Width | 37257 |
