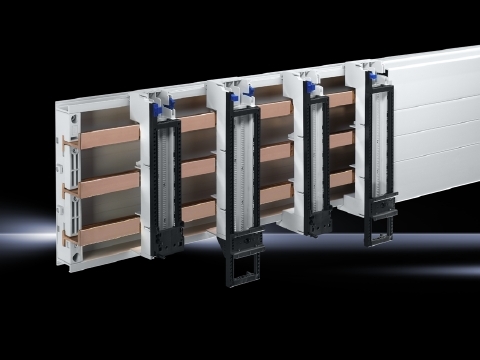

9340260 OM Support, 3-Pole, For Use With 5/10 mm Cross Section H Busbars, SV Type Enclosures, 60 mm Center-to-Center Spacing Bar System, Polyamide (PA 6.6), Pale Gray
- MFR:
- Rittal
- MFR #:
- 9340260
- UPC:
- 639889829985
- Item #:
- 473229
9340260 OM Support, 3-Pole, For Use With 5/10 mm Cross Section H Busbars, SV Type Enclosures, 60 mm Center-to-Center Spacing Bar System, Polyamide (PA 6.6), Pale Gray
- MFR #:
- 9340260
- UPC:
- 639889829985
- Item #:
- 473229
OM supports, without contact system, material: Polyamide (PA 6.6), Fire protection corresponding to UL 94-V0, color: Chassis: RAL 7035, description: For mounting of switchgear with external power supply.
Features
- Size: 208 mm Length x 45 mm Width x 50 mm Height
- Without contact/connection system
- DIN rail not included
- One OM component adaptor is included per pack
- Bus type RiLine60
| Catalog Number | 9340260 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Application | Industrial |
| Color | RAL 7035 (Chassis) |
| Material | Polyamide (PA 6.6) |
| Special Features | Features: Fire Protection |
| Standard | UL Listed, UL Recognized, cUL Listed, cUL Recognized, UL94 V-0 |
| RoHS Indicator | Under Review |
| UPC | 639889829985 |
| GTIN | 00639889829985 |
| Item Type | OM Support Without Contact System |
| Length | 10.8270 |
| Length UOM | Inch |
| Width | 3.5430 |
| Width UOM | Inch |
| Height | 2.1650 |
| Height UOM | Inch |
| Weight | 0.485 |
| Weight UOM | Pounds |
| Size | 1.8 (W) x 8.2 (H) |
