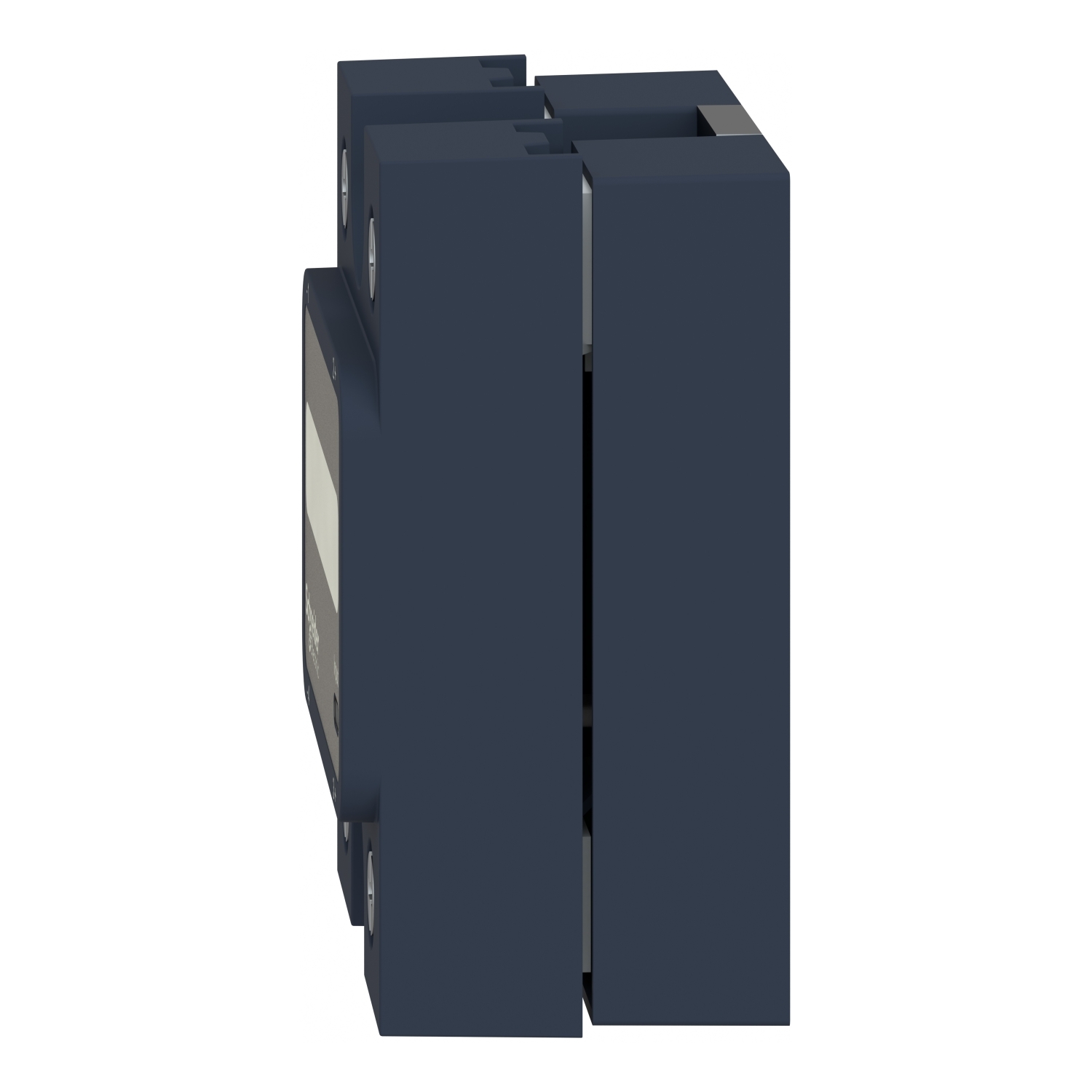

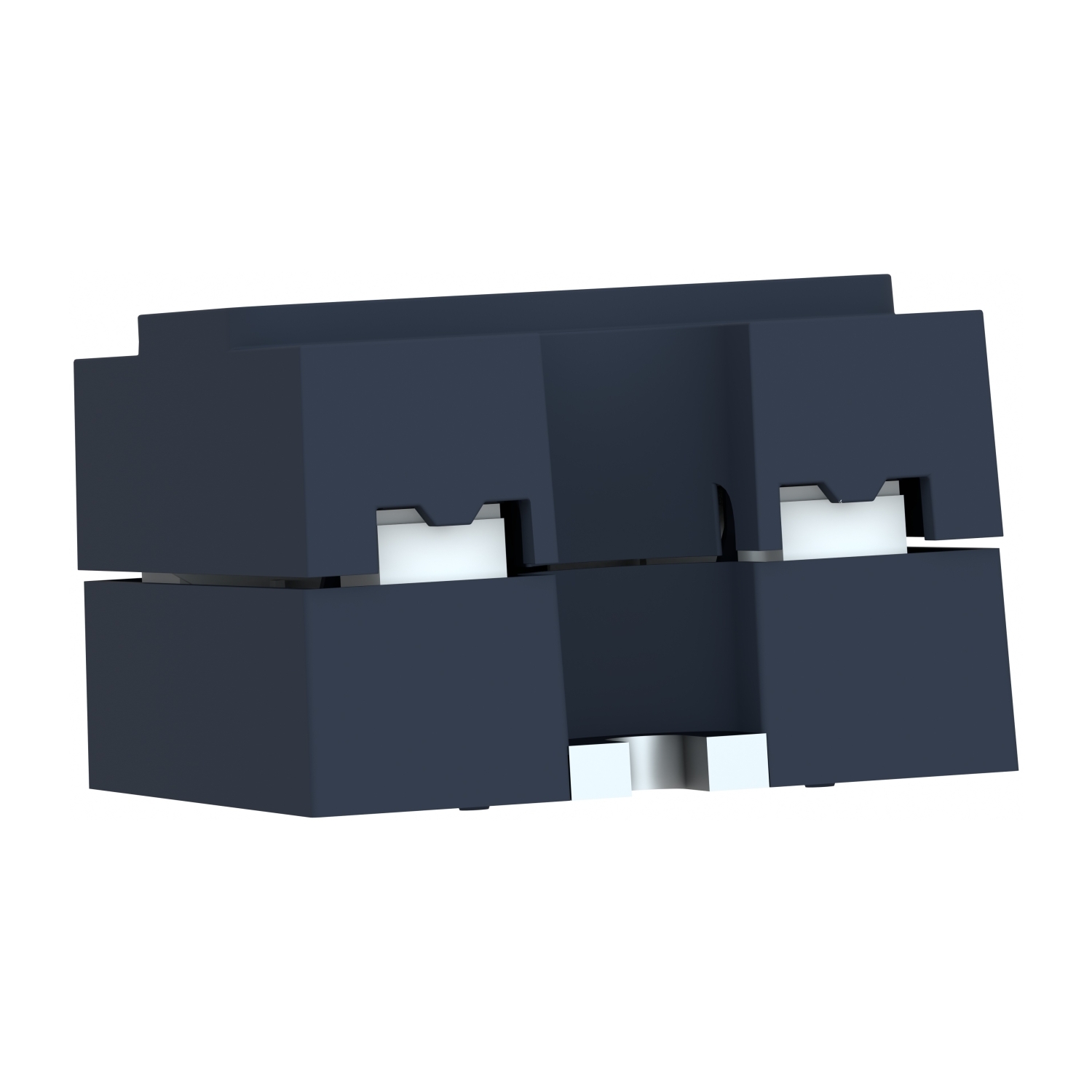

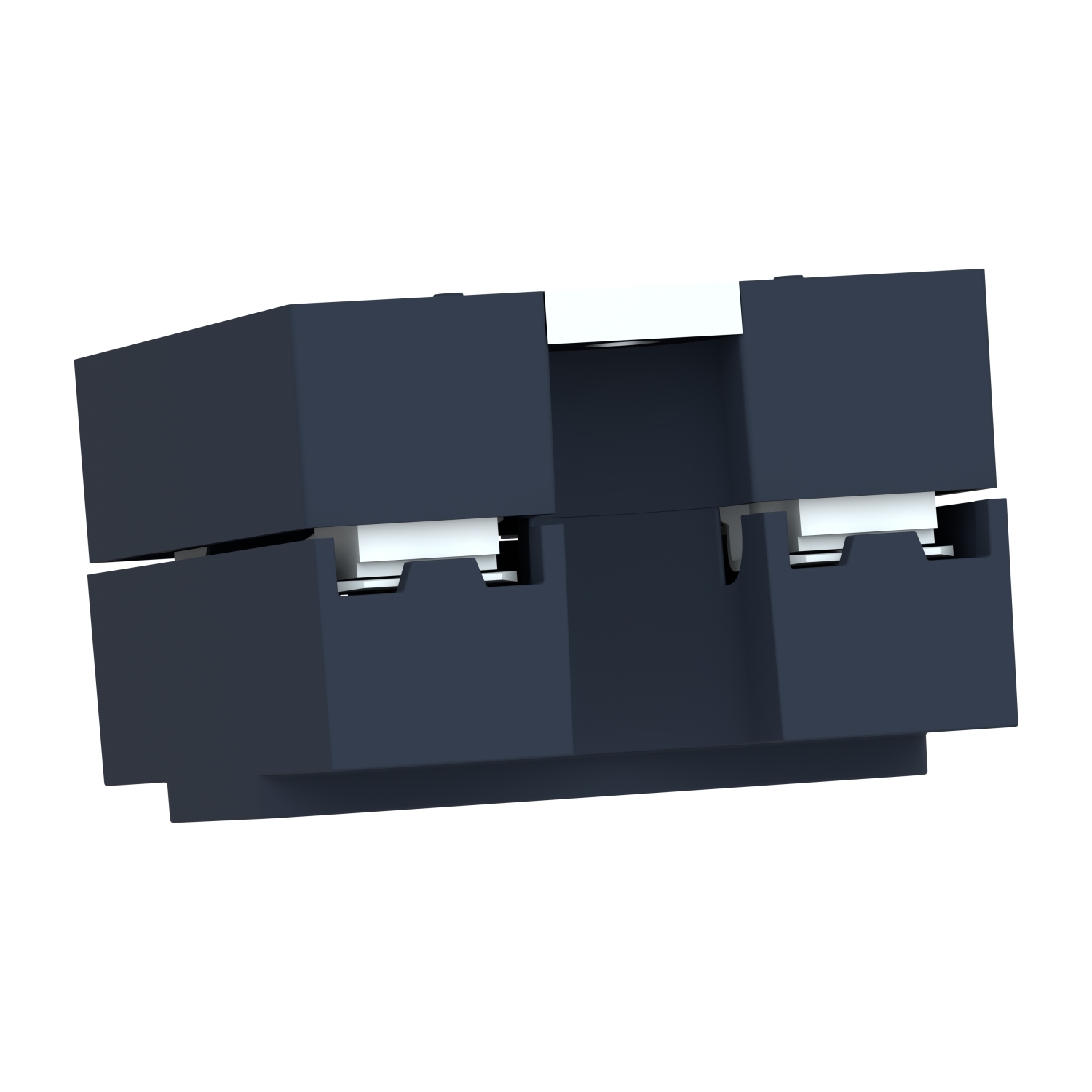

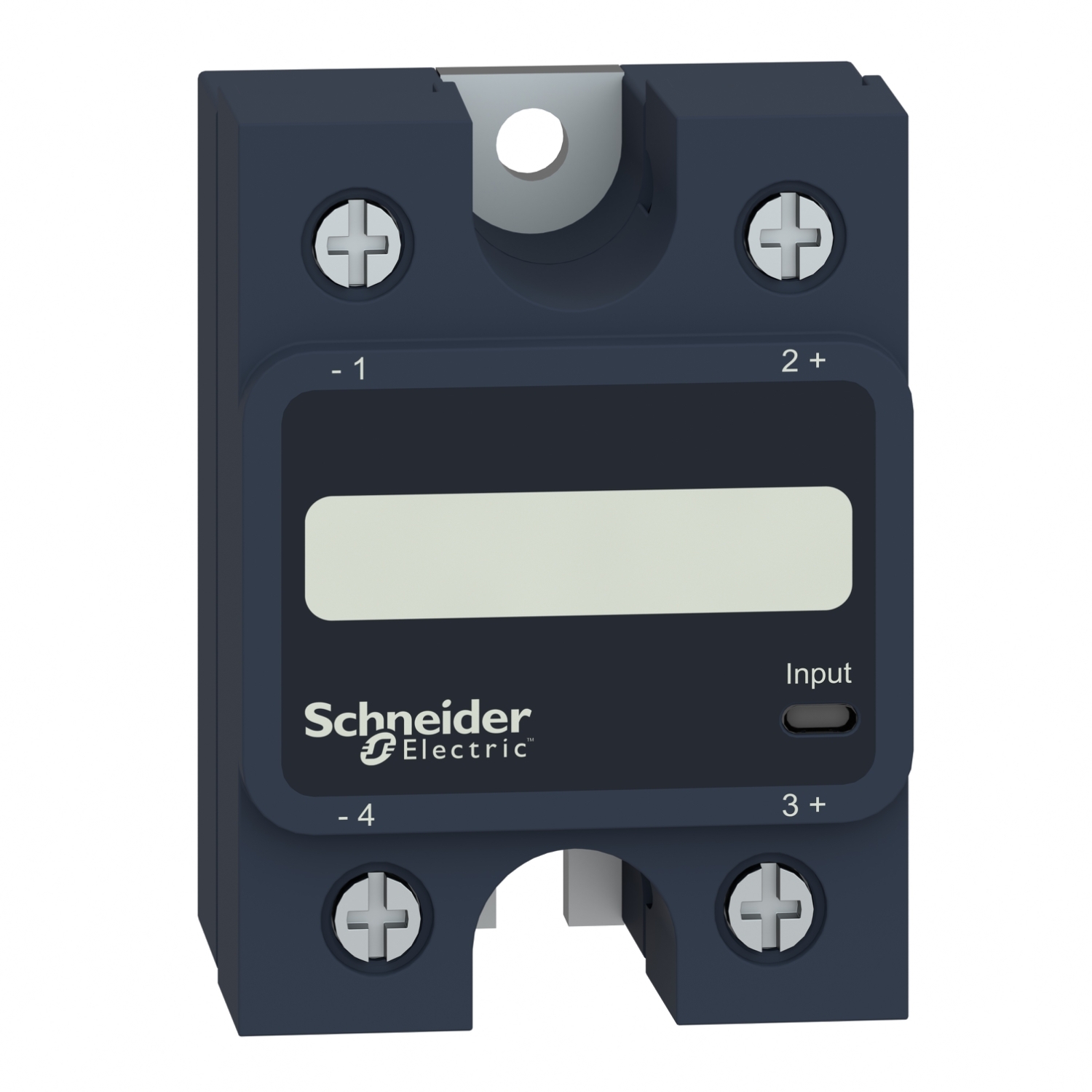

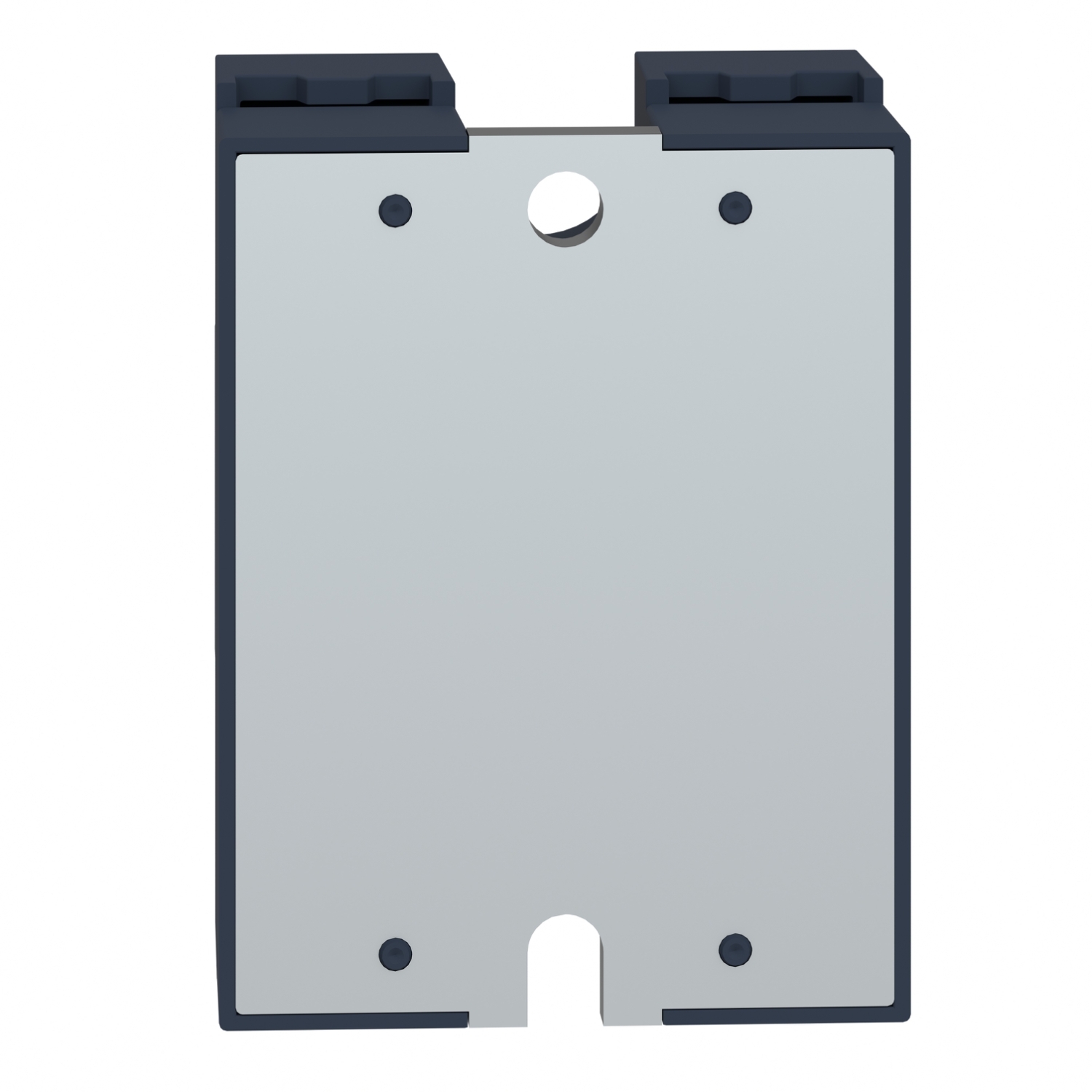

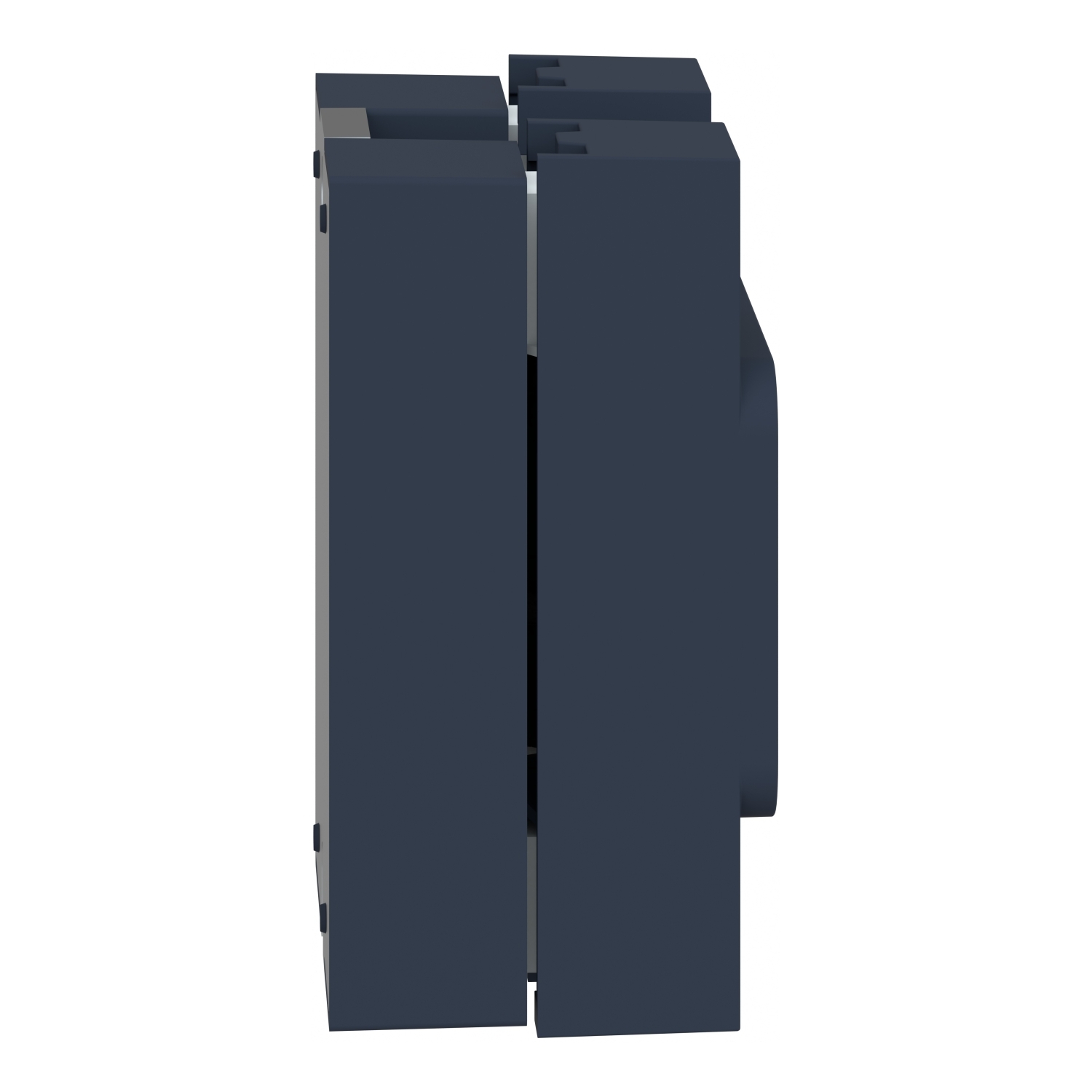

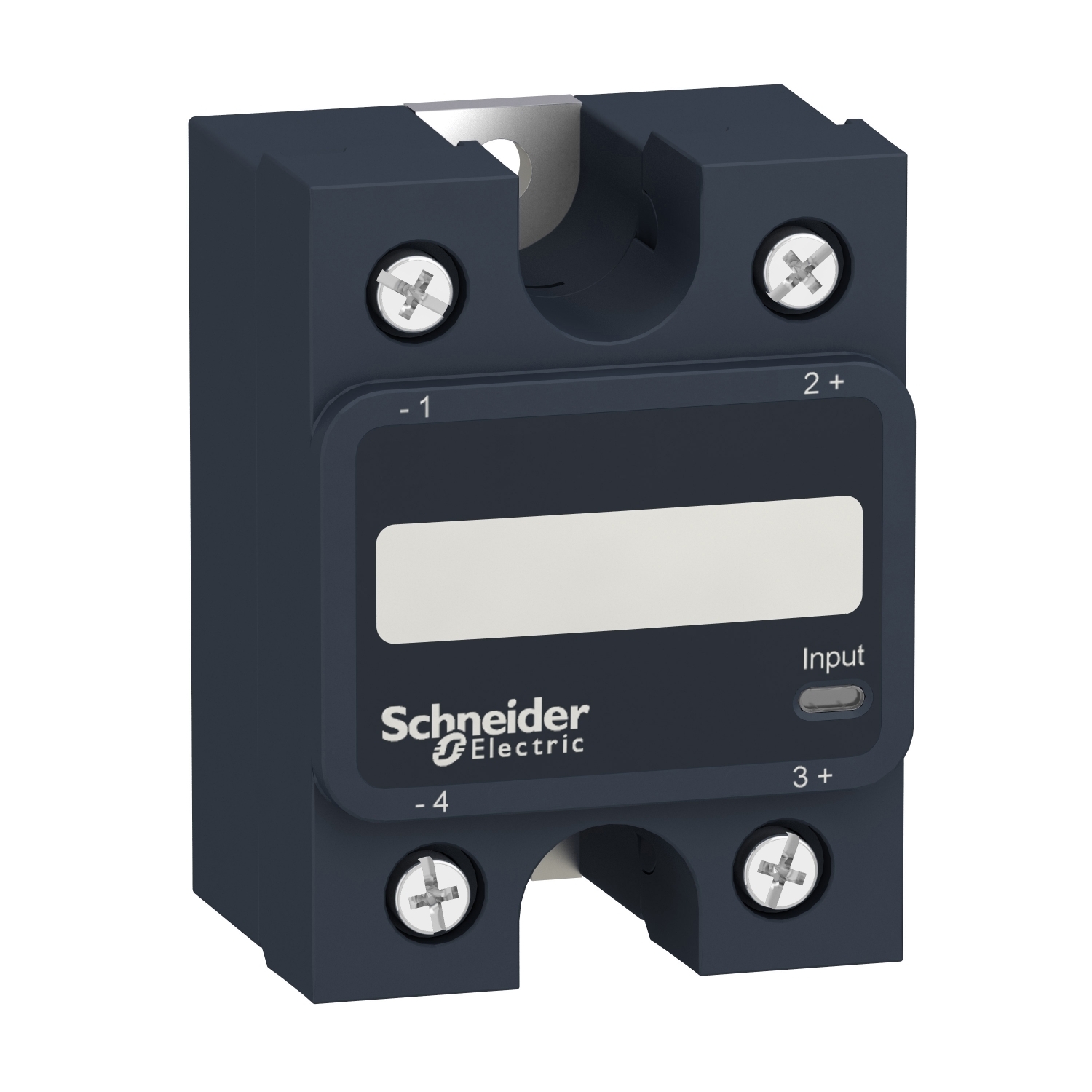

SSP1A125M7 Zelio 1-Phase Zero Voltage Switching Solid State Relay, 25 A, 1NO 1 Form A SPST Contact, 90 to 280 V AC V Coil
- MFR:
- Schneider Electric
- MFR #:
- SSP1A125M7
- Item #:
- 470164
SSP1A125M7 Zelio 1-Phase Zero Voltage Switching Solid State Relay, 25 A, 1NO 1 Form A SPST Contact, 90 to 280 V AC V Coil
- MFR #:
- SSP1A125M7
- Item #:
- 470164
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 25A, is controlled withA 90V to 280V AC circuit, has a rated load voltage of 24V to 300V AC output. It also has a test button for easy debugging, testing and commissioning. 0 It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events 0
Manuals & Documentation
| Catalog Number | SSP1A125M7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Mexico |
| Made in USA | No |
| Connection | Screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input;screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output;screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input;screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output;forked type tag connectors 9.2 x 4 mm input;ring lugs 9.2 x 4 mm input;forked type tag connectors 11.7 x 4.5 mm output;ring lugs 11.7 x 4.5 mm output |
| Mounting | Panel Mount |
| Phase | 1 |
| Response Time | 30 ms (turn-off);25 ms (turn-on) |
| Special Features | LED, green input |
| Standard | IP20 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423419627&lang=en-us |
| GTIN | 03606485441931 |
| Item Type | Panel mount relay |
