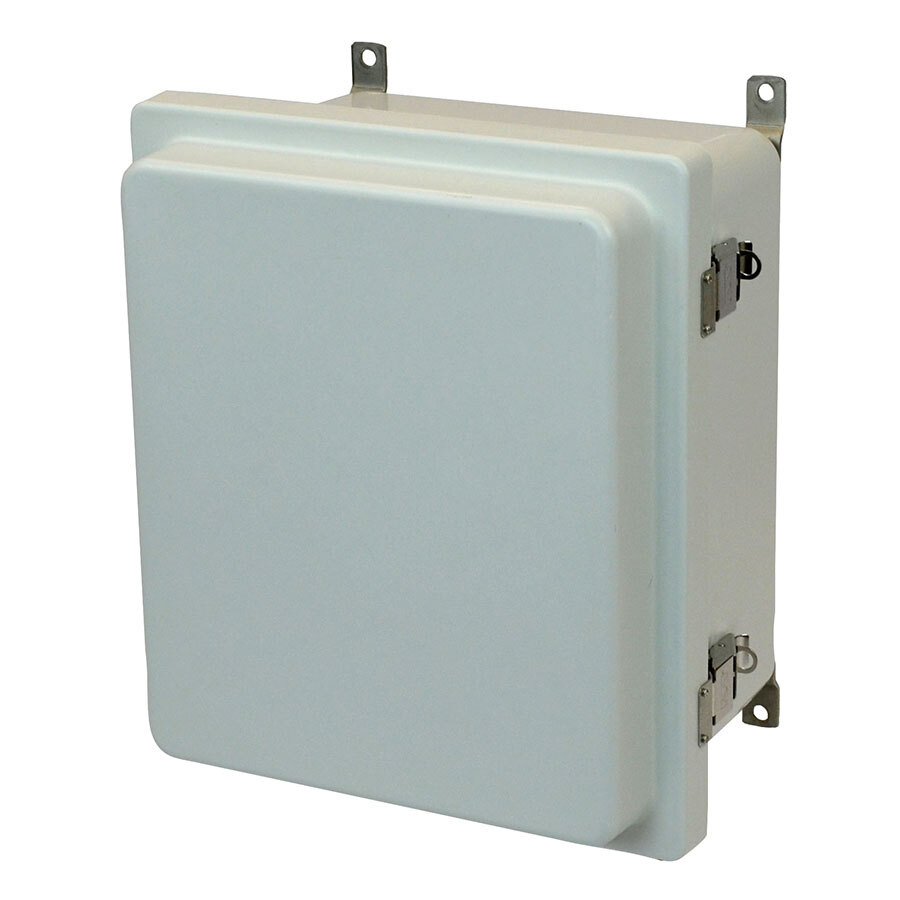

Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Raised, hinged snap latch Type:, overlapping and opaque cover design with FIP formed-in-place polyurethane gasket system Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:ULTRAGUARD - Fiberglass reinforced polyester - thermoset Size:A=16.27, B=14.40, C=8.13 plus 1.75 raised cover, usable depth=9.21 Color:RAL 7035 - Gray Mounting:Stainless steel feet fastened to back side brass inserts

Manuals & Documentation
Catalog Number AM1648RL
Manufacturer Allied Moulded Products
Brand Allied Moulded Products
Country of Origin United States
Made in USA Yes
Application Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Construction Compression molded
Cubic Capacity 2,315 cu. In. (1.34 cu. Ft.)
Insulation Nonconductive nonmetallic
Material ULTRAGUARD - Fiberglass reinforced polyester - thermoset
Mounting Stainless Steel Feet Fastened To Back Side Brass Inserts
Special Features Raised, hinged snap latch type, overlapping and opaque cover design with formed-in-place polyurethane gasket system
Standard UL 508A - Industrial Control Panels
UPC 085339916758
GTIN 00085339916758
Item Type NEMA 4X Type Nonmetallic Enclosure
Size A=16.27", B=14.40", C=8.13" plus 1.75" raised cover, usable depth=9.21"
