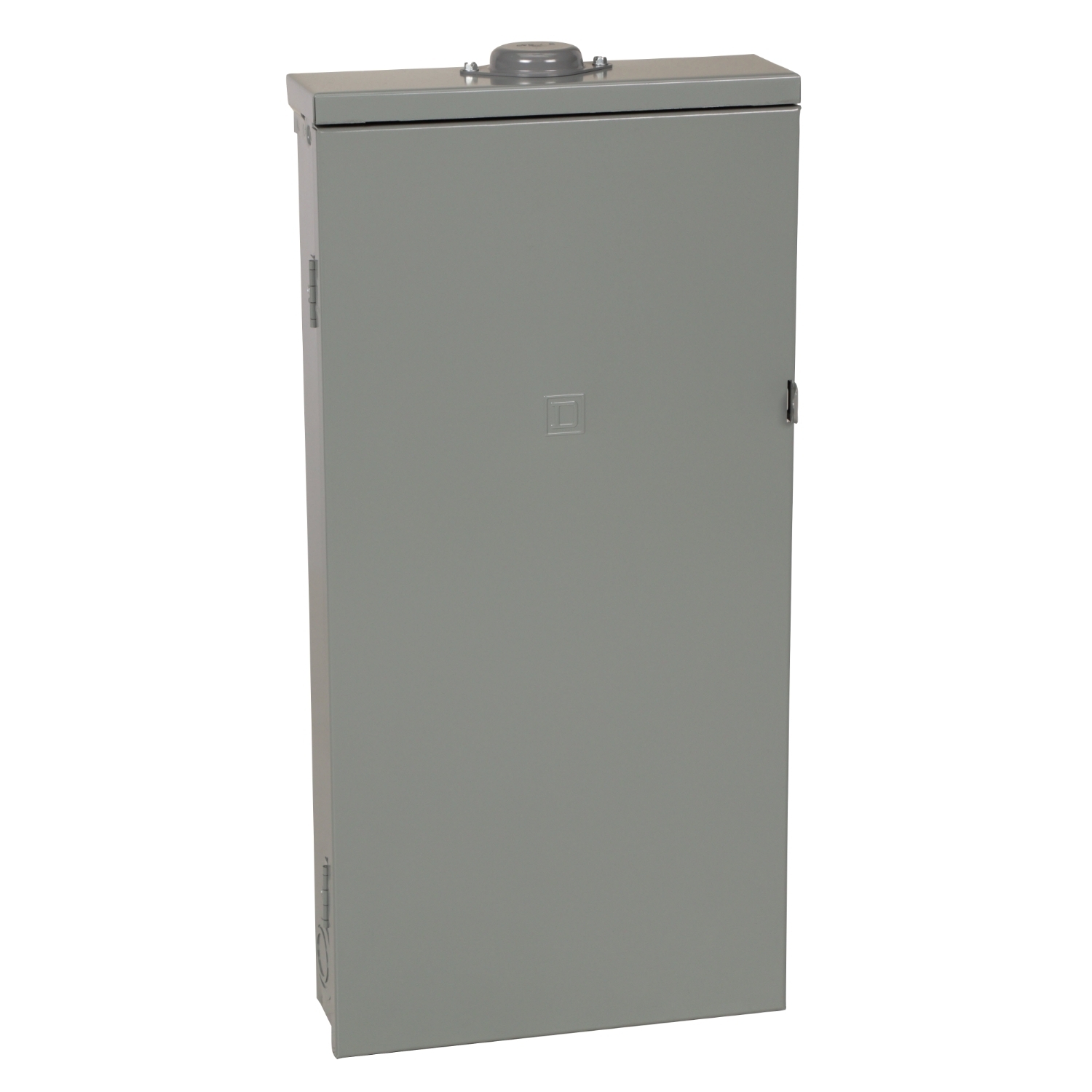

QO1816M150FTRB 1-Phase Convertible Main Breaker Loadcenter, 120/240 V AC, 150 A, 1 Pole, 22 kA Interrupt
- MFR:
- Schneider Electric
- MFR #:
- QO1816M150FTRB
- UPC:
- 785901868170
- Item #:
- 469430
QO1816M150FTRB 1-Phase Convertible Main Breaker Loadcenter, 120/240 V AC, 150 A, 1 Pole, 22 kA Interrupt
- MFR #:
- QO1816M150FTRB
- UPC:
- 785901868170
- Item #:
- 469430
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides a 150A convertible main breaker in a NEMA 3R enclosure. It also includes feed thru lugs and is UL rated.
Manuals & Documentation
| Catalog Number | QO1816M150FTRB |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Cable Size | AWG 4...250 kcmil aluminium/copper |
| Cover Type | Surface cover |
| Enclosure | Baked enamel Gray;Welded galvannealed steel;6R |
| Phase | 1 |
| Special Features | Tin plated copper: busbar |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=360417&lang=en-us |
| UPC | 785901868170 |
| GTIN | 00785901868170 |
| Item Type | Load Center |
| Depth | 4.48820 IN |
