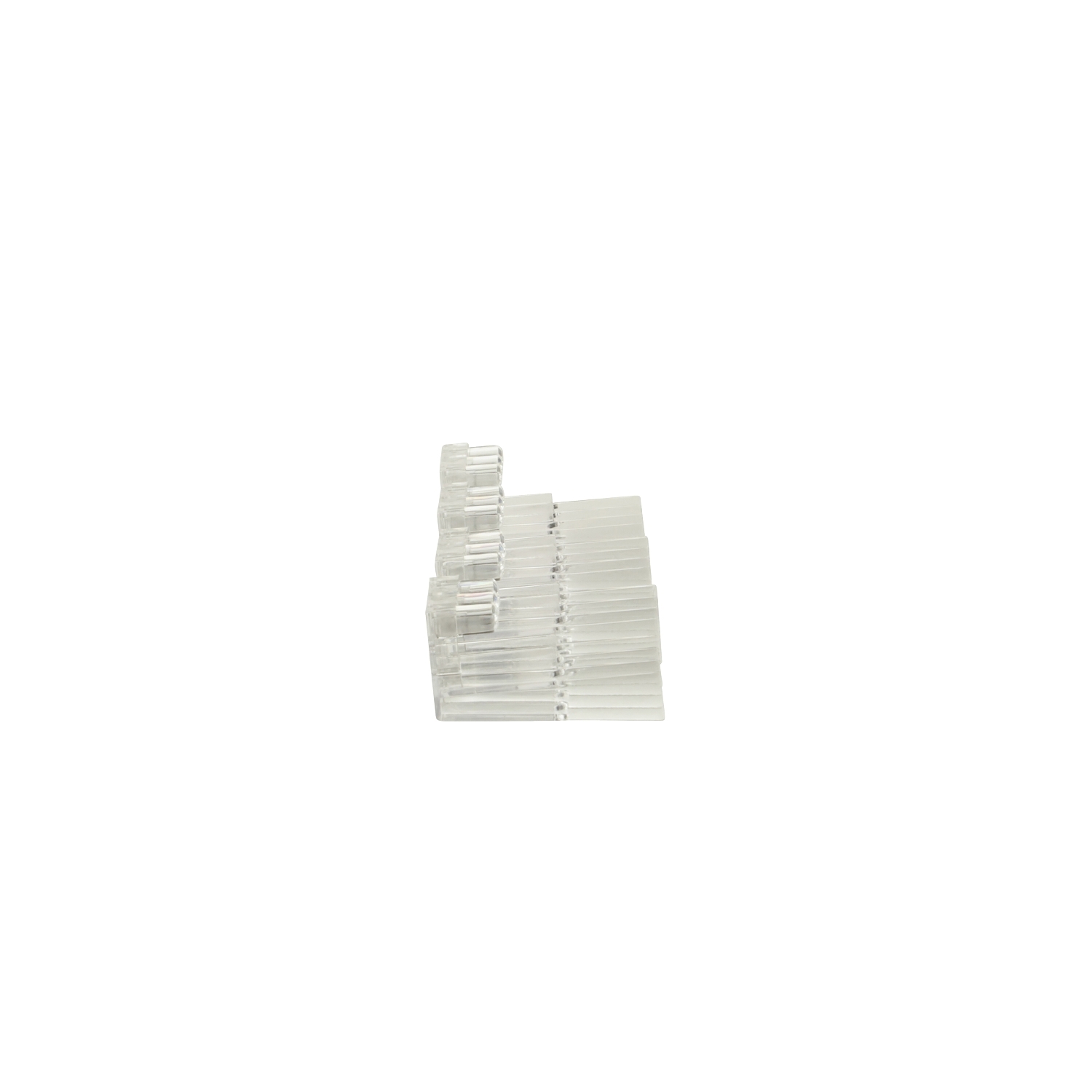

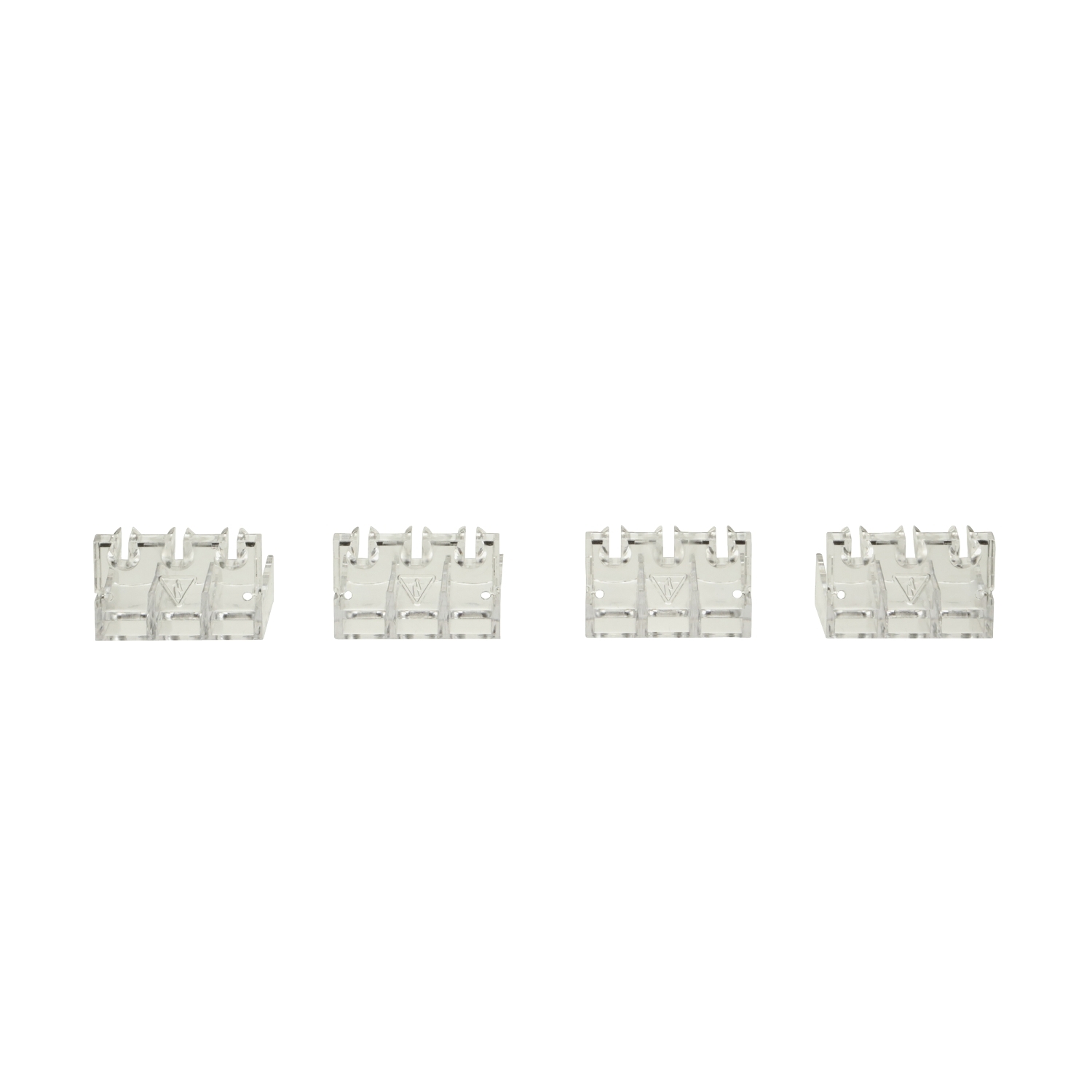

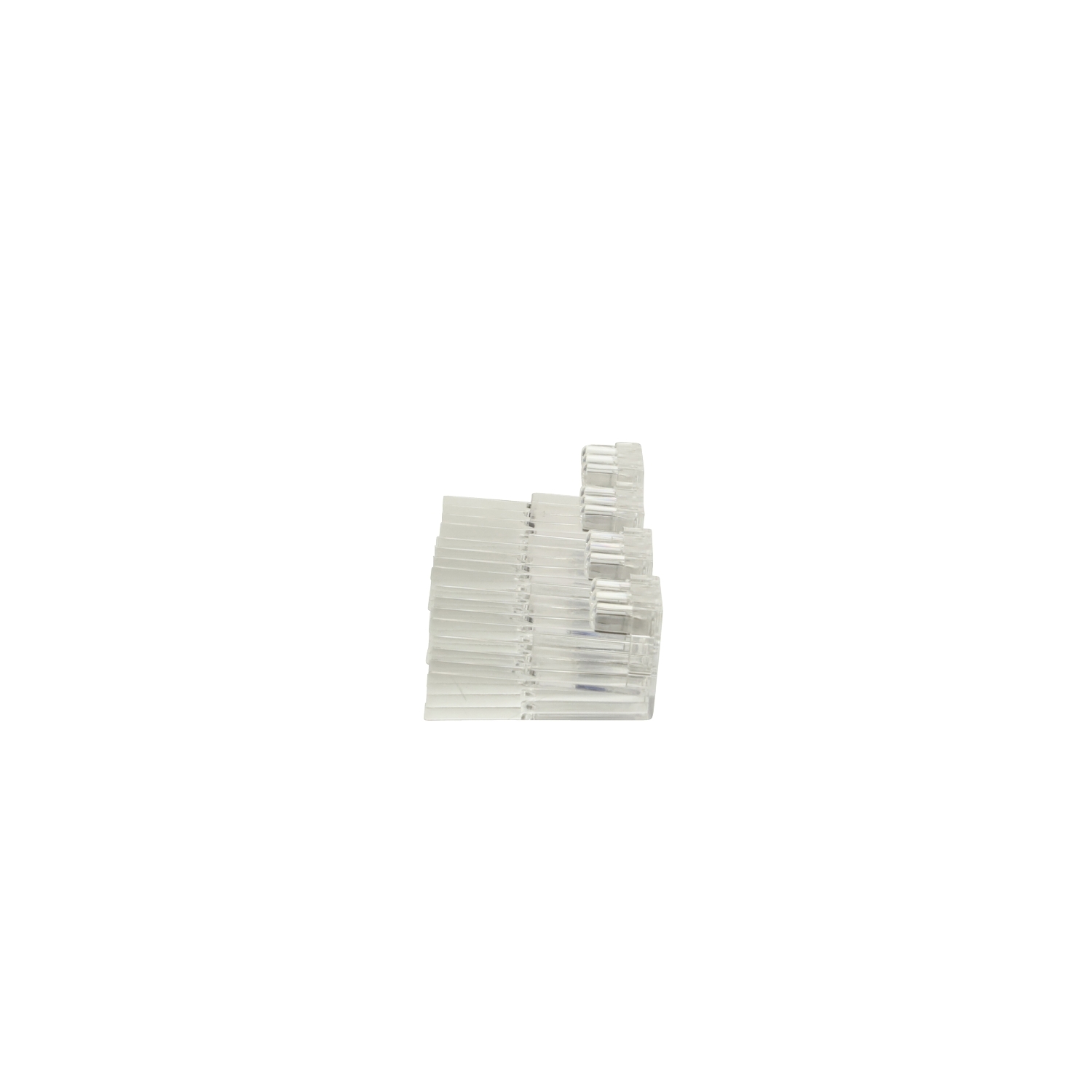

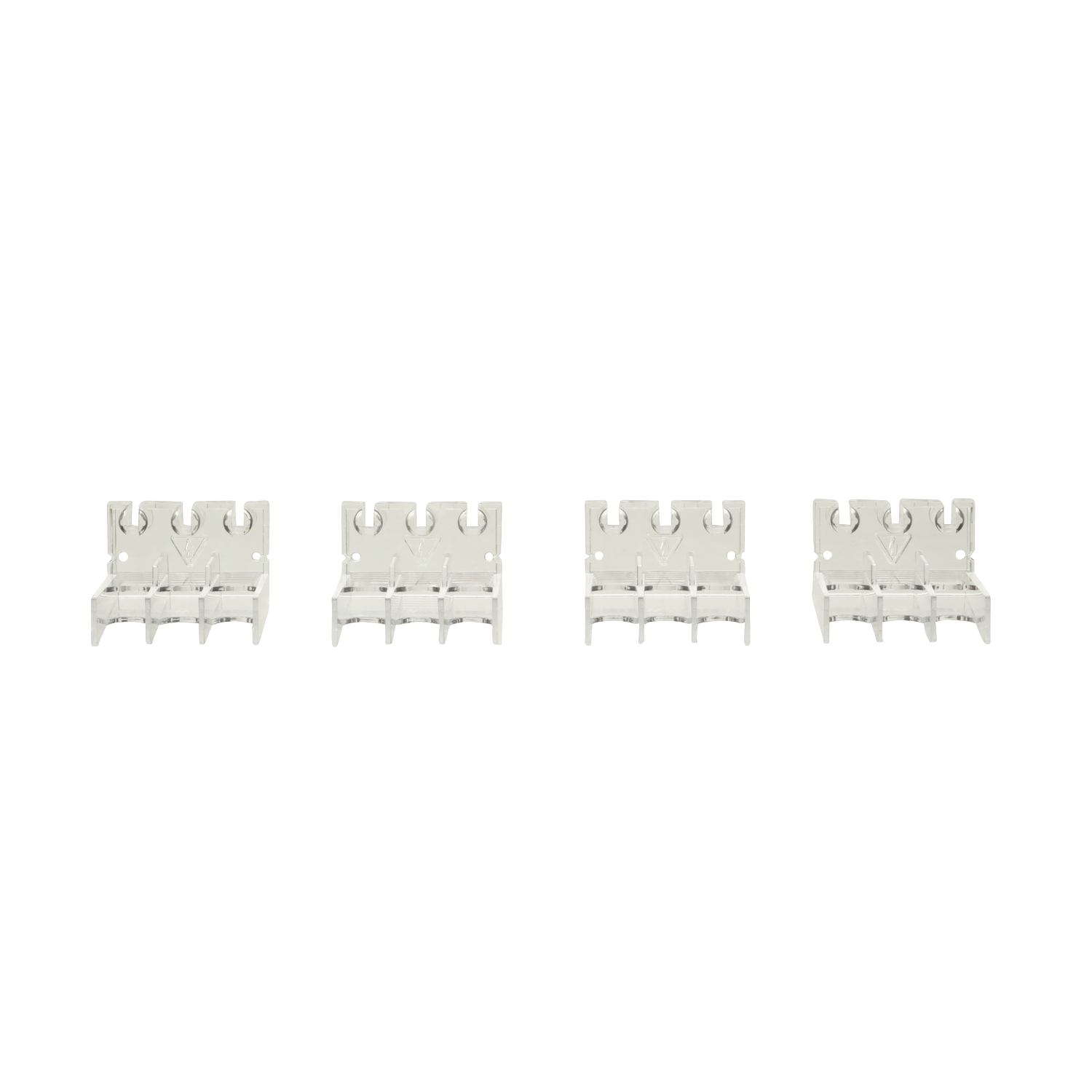

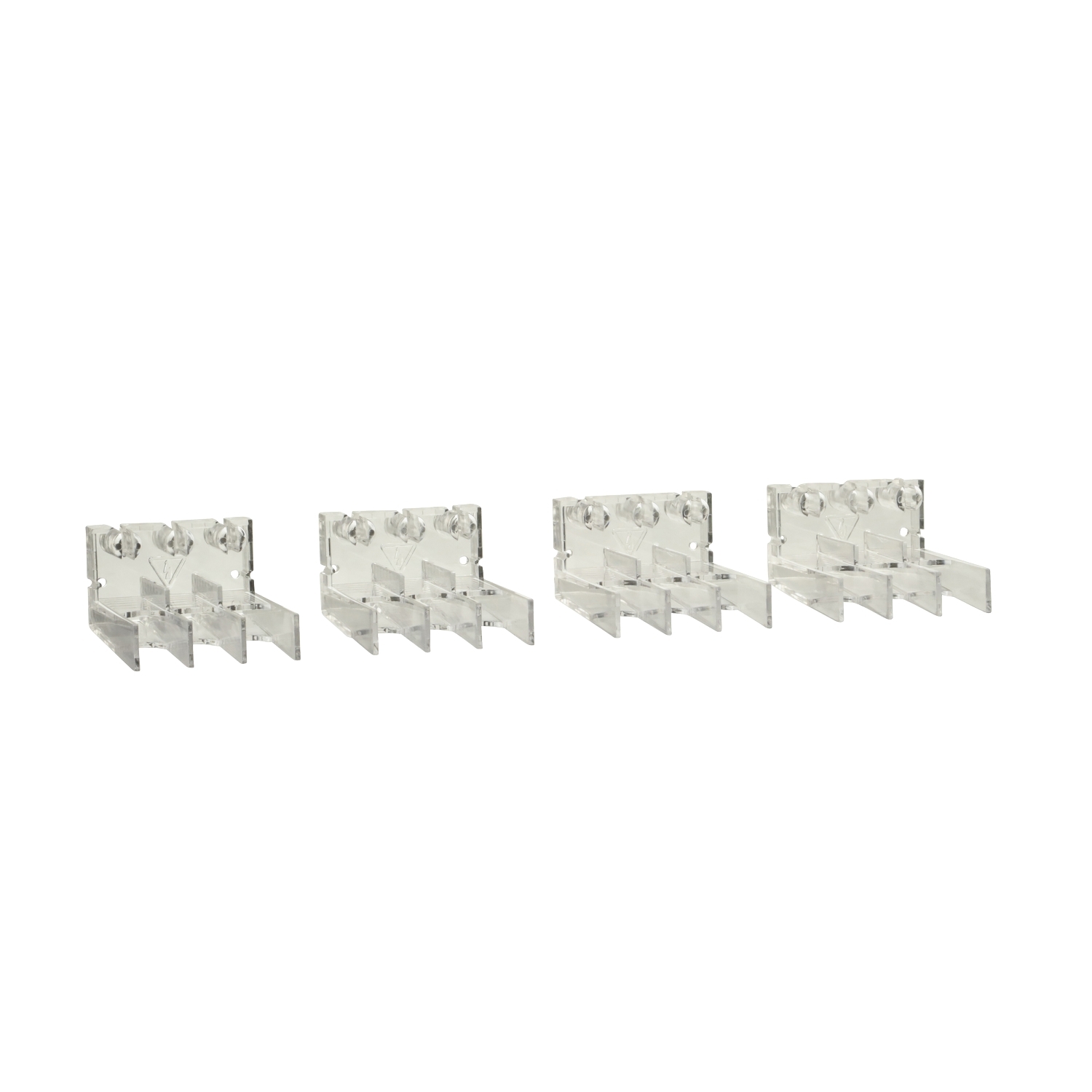

VLSC3P1 3-Pole Clipped Mount Terminal Cover, For Use With TeSys Vario 16 to 63 A VLS3P016R1-VLS3P040R1, VLS3P063R1, VLS3P016D1-VLS3P040D1 Disconnect Switch

MFR:
Schneider Electric
MFR #:
VLSC3P1
Item #:
469406

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This protective terminal cover is for the three poles of the main VLS disconnect switch. This protective cover can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1 or VLS3P063R1 DIN rail mount disconnect switch. This protective cover can be added to a VLS3P016D1, VLS3P025D1, VLS3P032D1 or VLS3P040D1 door mount disconnect switch. Each package has two of these terminal protective covers. This protective terminal cover is 1.04 inches tall, 1.42 inches wide and 1.81 inches deep. The switch weighs 0.04 lbs. This protective cover is cULus Listed and meets IEC 60947-3 requirements.

Manuals & Documentation
Catalog Number VLSC3P1
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin Italy
Made in USA No
Application TeSys TeSys VARIO LS VLS3P;Protection accessory
Mounting Clip
Number of Poles 3
Special Features Set of 2
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=460091152&lang=en-us
GTIN 03606481157126
Item Type Terminal cover
