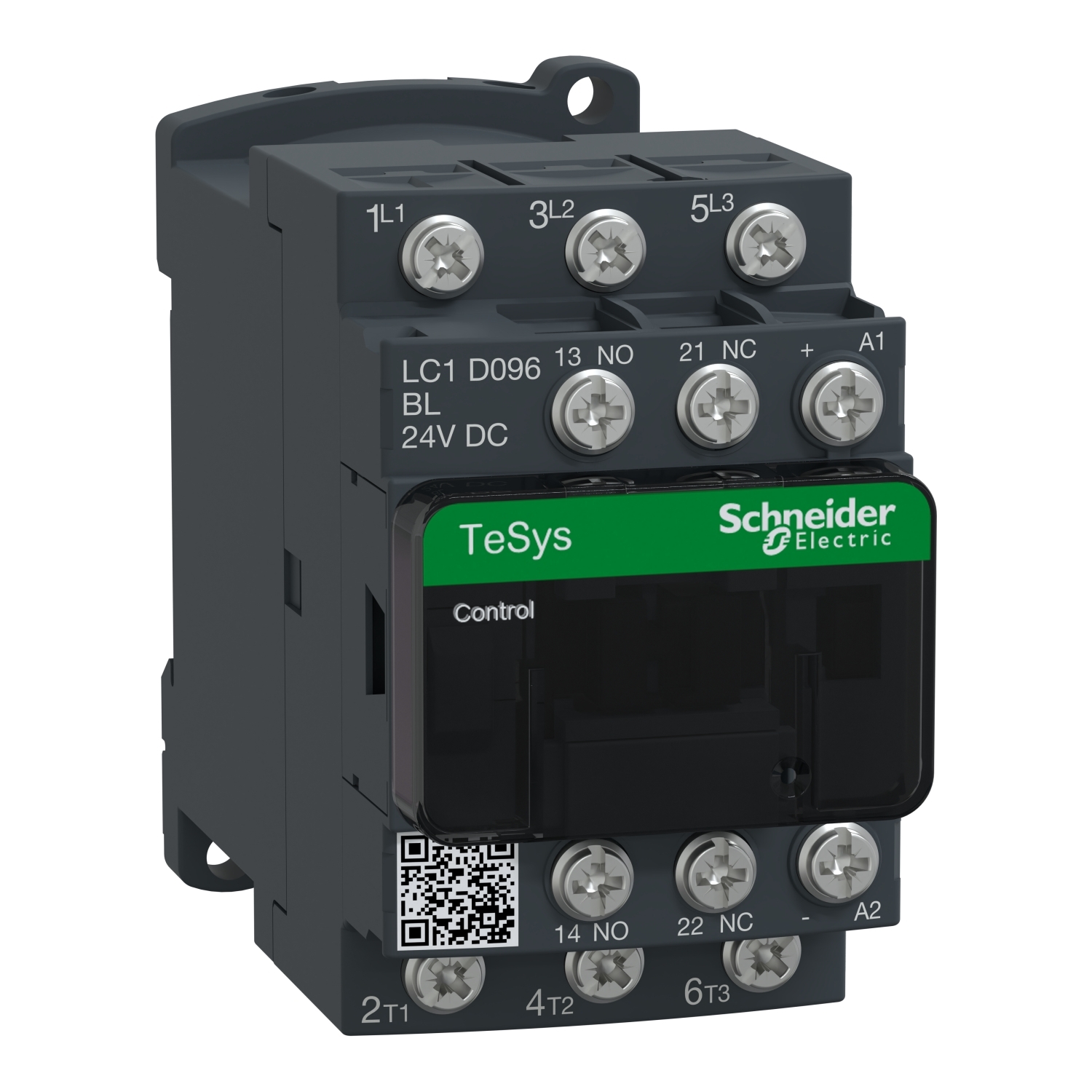

LC1D096BL TeSys D IEC Contactor With Safety Cover, 690 V AC, 24/300 V DC V Coil, 9/25 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D096BL
- Item #:
- 467490
LC1D096BL TeSys D IEC Contactor With Safety Cover, 690 V AC, 24/300 V DC V Coil, 9/25 A, 3NO Contact, 3 Poles
- MFR #:
- LC1D096BL
- Item #:
- 467490
IEC contactor, TeSys D, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style
Manuals & Documentation
| Catalog Number | LC1D096BL |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | Resistive load;motor control |
| Coil Voltage | 24 V DC |
| Connection | Control circuit: lugs-ring terminals - external diameter: 8 mm;power circuit: lugs-ring terminals - external diameter: 8 mm |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Built-in bidirectional peak limiting diode suppressor |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=611448&lang=en-us |
| GTIN | 03389110808551 |
| Item Type | Contactor |
