ZCMD25L5 OsiSense XC Fixed Limit Switch Body, 1NO-1NC Contact, For Use With XCMD, ZCMD and ZCMD Series Standard Format Miniature Limit Switch, 1.5 A at 240 V AC/0.1 A at 250 V AC/5 A at 240 V AC Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- ZCMD25L5
- UPC:
- 785901911005
- Item #:
- 465750
ZCMD25L5 OsiSense XC Fixed Limit Switch Body, 1NO-1NC Contact, For Use With XCMD, ZCMD and ZCMD Series Standard Format Miniature Limit Switch, 1.5 A at 240 V AC/0.1 A at 250 V AC/5 A at 240 V AC Contact
- MFR #:
- ZCMD25L5
- UPC:
- 785901911005
- Item #:
- 465750

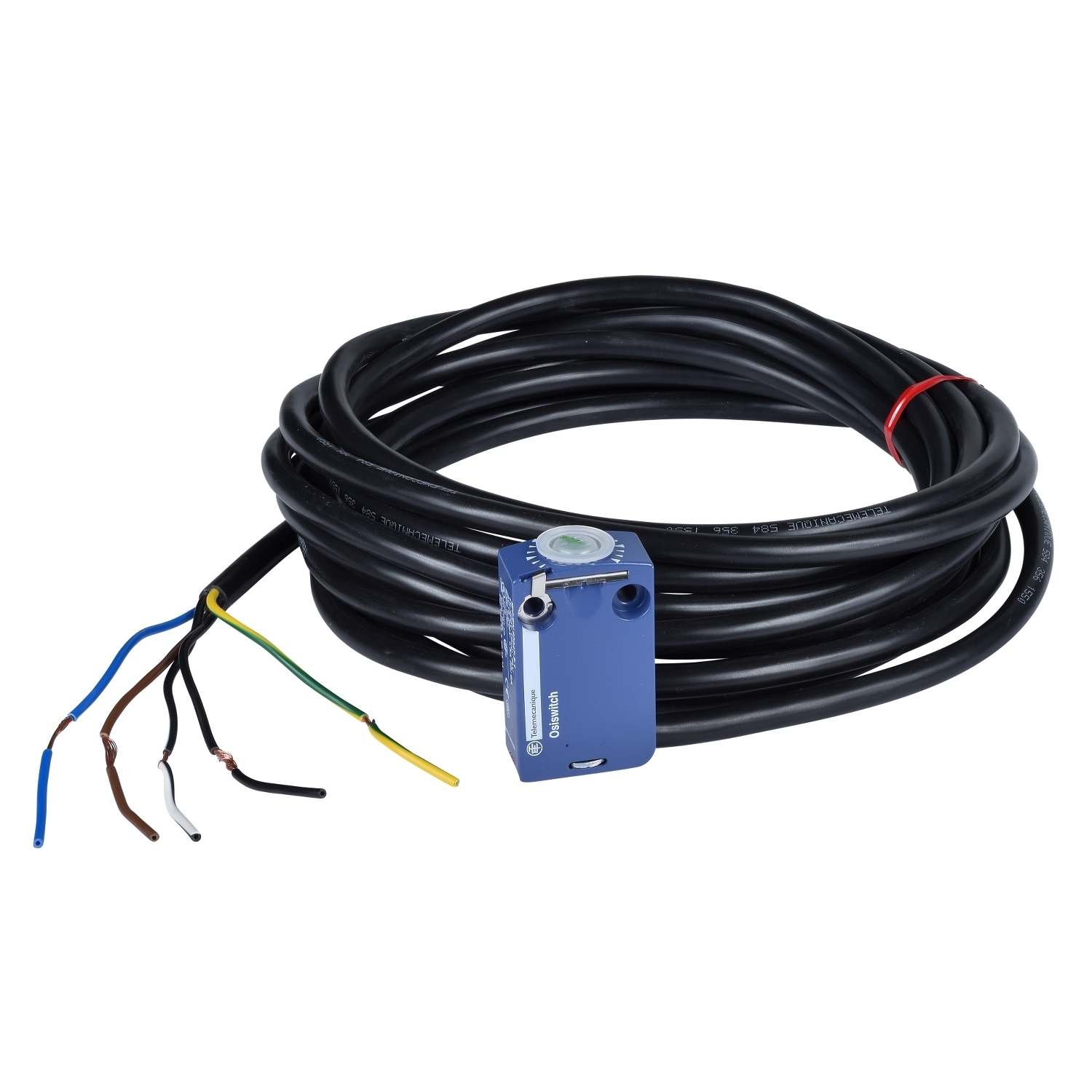

This ZCM body/contact assembly with connector has standard contacts and a Zamak body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts and is pre-cabled (5 meter cable). It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Manuals & Documentation
| Catalog Number | ZCMD25L5 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Action | Slow-break, break before make;slow-break |
| Application | XCMD |
| Connection | Removable cable |
| Contact Configuration | 1 NC + 1 NO |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13 120 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880322&lang=en-us |
| UPC | 785901911005 |
| GTIN | 03389110299366 |
| Item Type | Limit switch body |
| Size | 0.63 |
