XCMD21F0L1 OsiSense Fixed Heavy Duty Miniature Standard Format Limit Switch, 240 V AC/250 V DC, 6 A, M12 Threaded Plunger Head Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCMD21F0L1
- UPC:
- 785901298243
- Item #:
- 464740
XCMD21F0L1 OsiSense Fixed Heavy Duty Miniature Standard Format Limit Switch, 240 V AC/250 V DC, 6 A, M12 Threaded Plunger Head Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCMD21F0L1
- UPC:
- 785901298243
- Item #:
- 464740

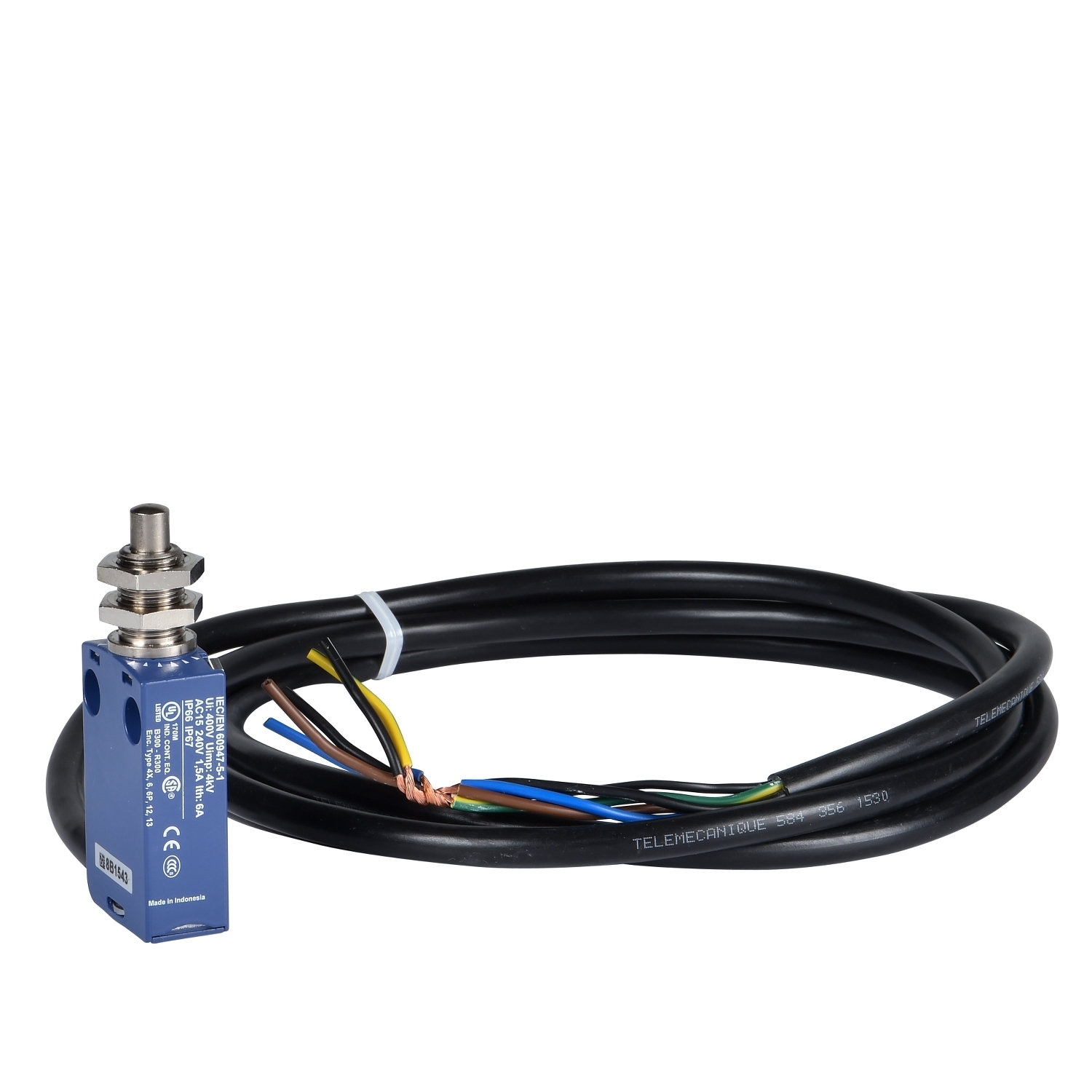

This XCMD miniature format limit switch has a metal end plunger and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and is pre-cabled with 1m cable. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Manuals & Documentation
| Catalog Number | XCMD21F0L1 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Vertical approach, 1 direction;Snap action;On end |
| Actuator | Spring return plunger metal |
| Amperage Rating | 6 |
| Application | MINIATURE VARIABLE |
| Connection | Removable cable connector |
| Contact Configuration | 1 NC + 1 NO |
| Enclosure | NEMA 1/2/4X/6/6P/12/13 IP66/67/68 |
| Mounting | By The Head |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CCC-CSA-UL,IK06 EN 62262,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529,UL 508-EN/IEC 60204-1-EN/IEC 60947-5-1-CSA C22.2 NO 14 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857770&lang=en-us |
| UPC | 785901298243 |
| GTIN | 03389110220018 |
| Item Type | Limit switch |
| Size | 0.63 |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 240VAC/250VDC |
