Product Details

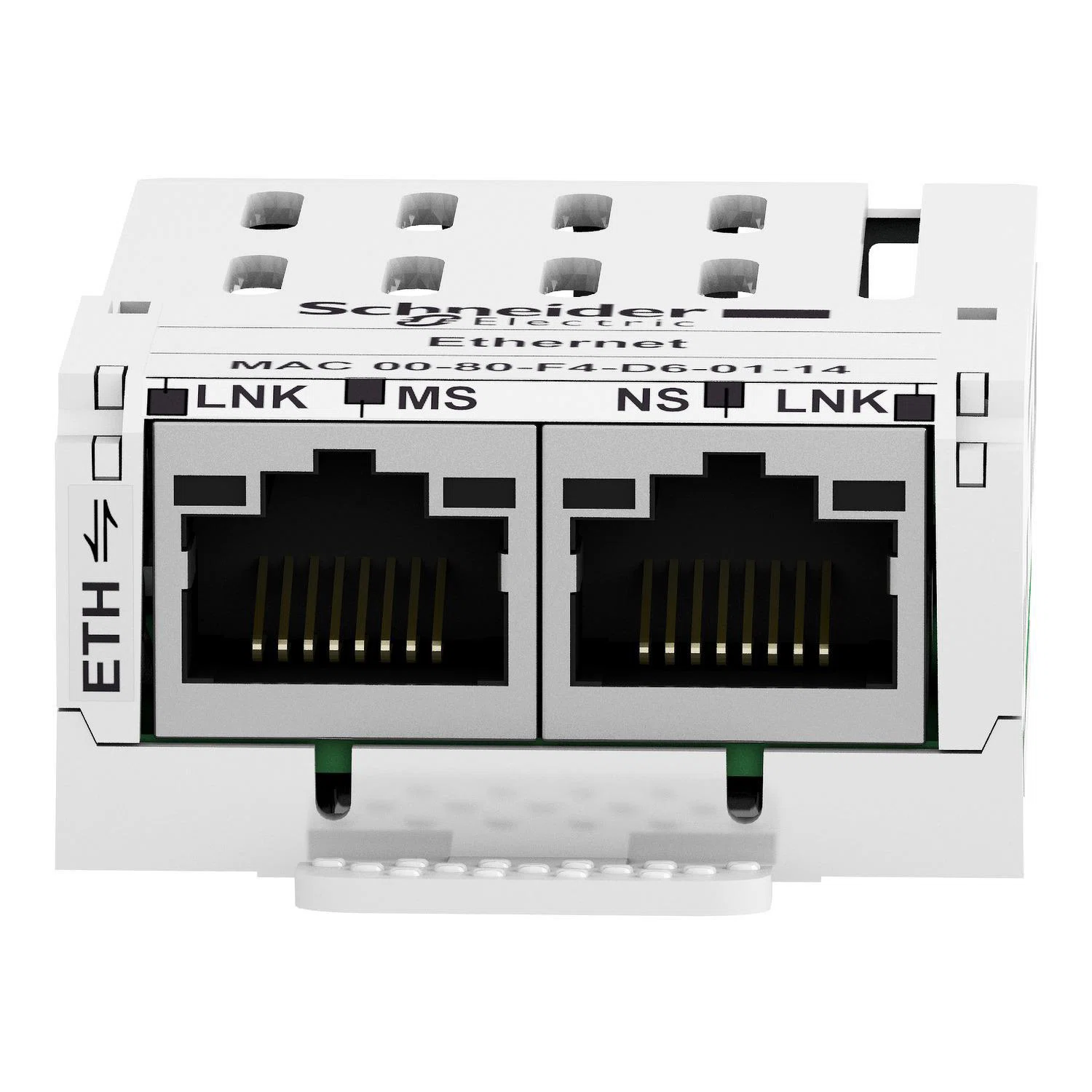

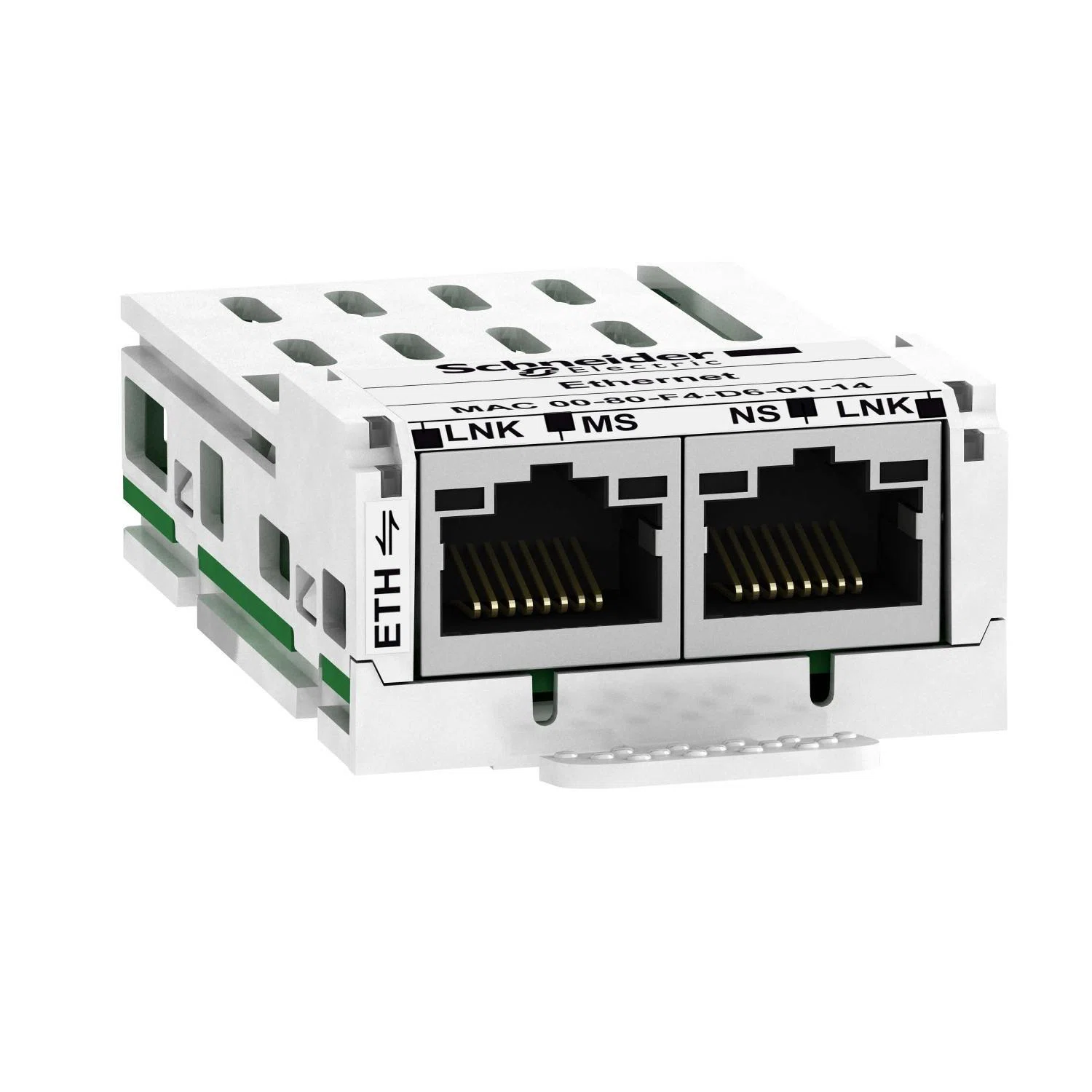

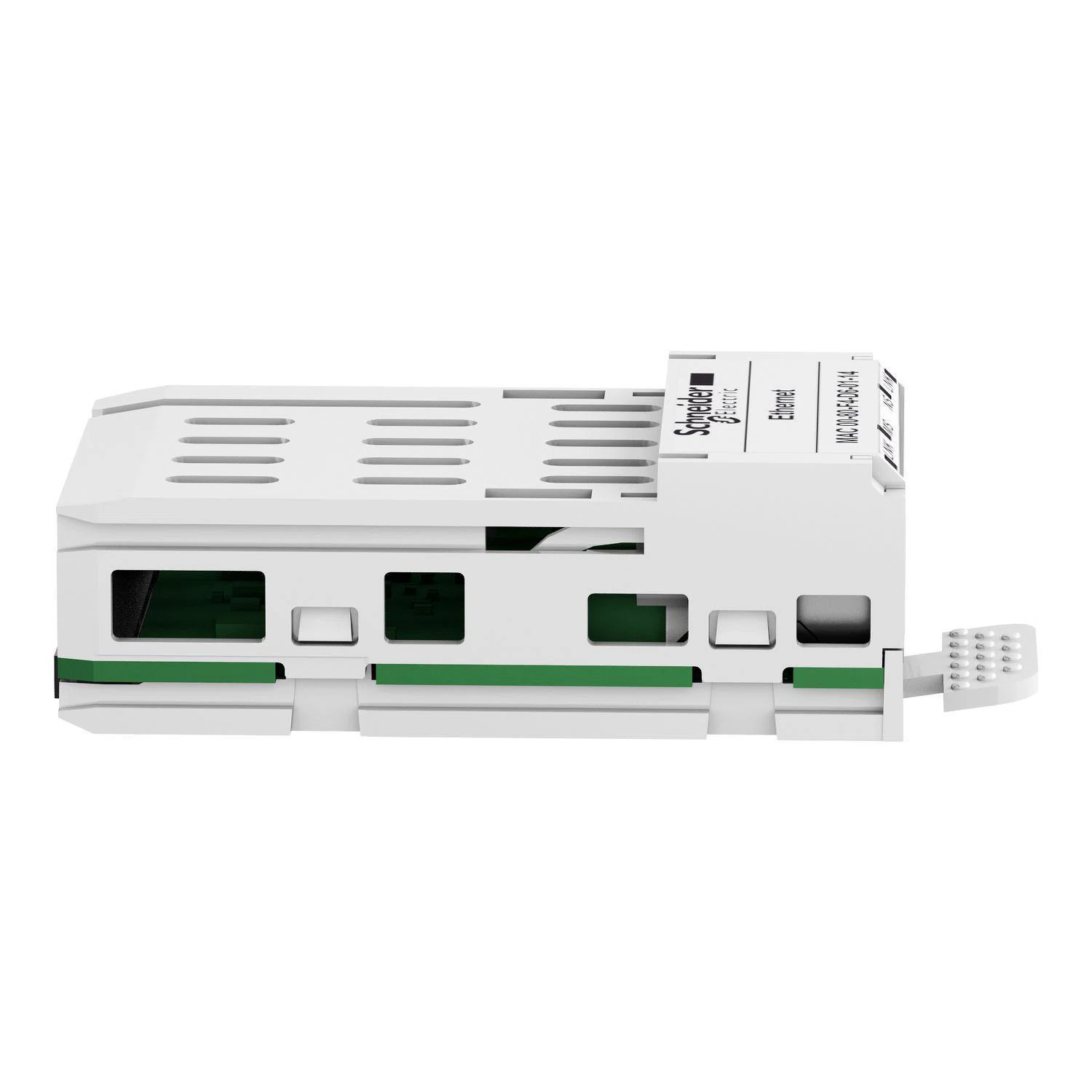

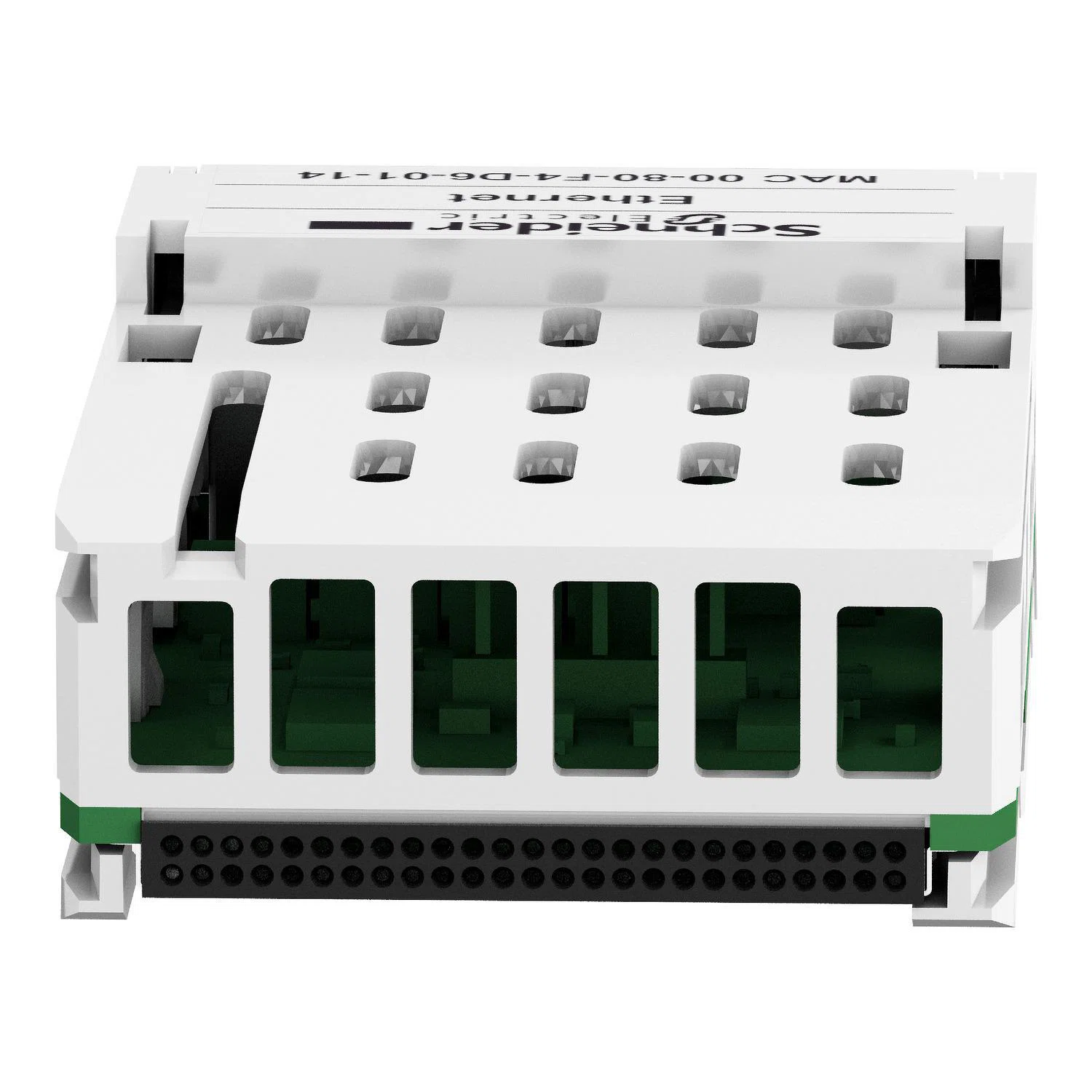

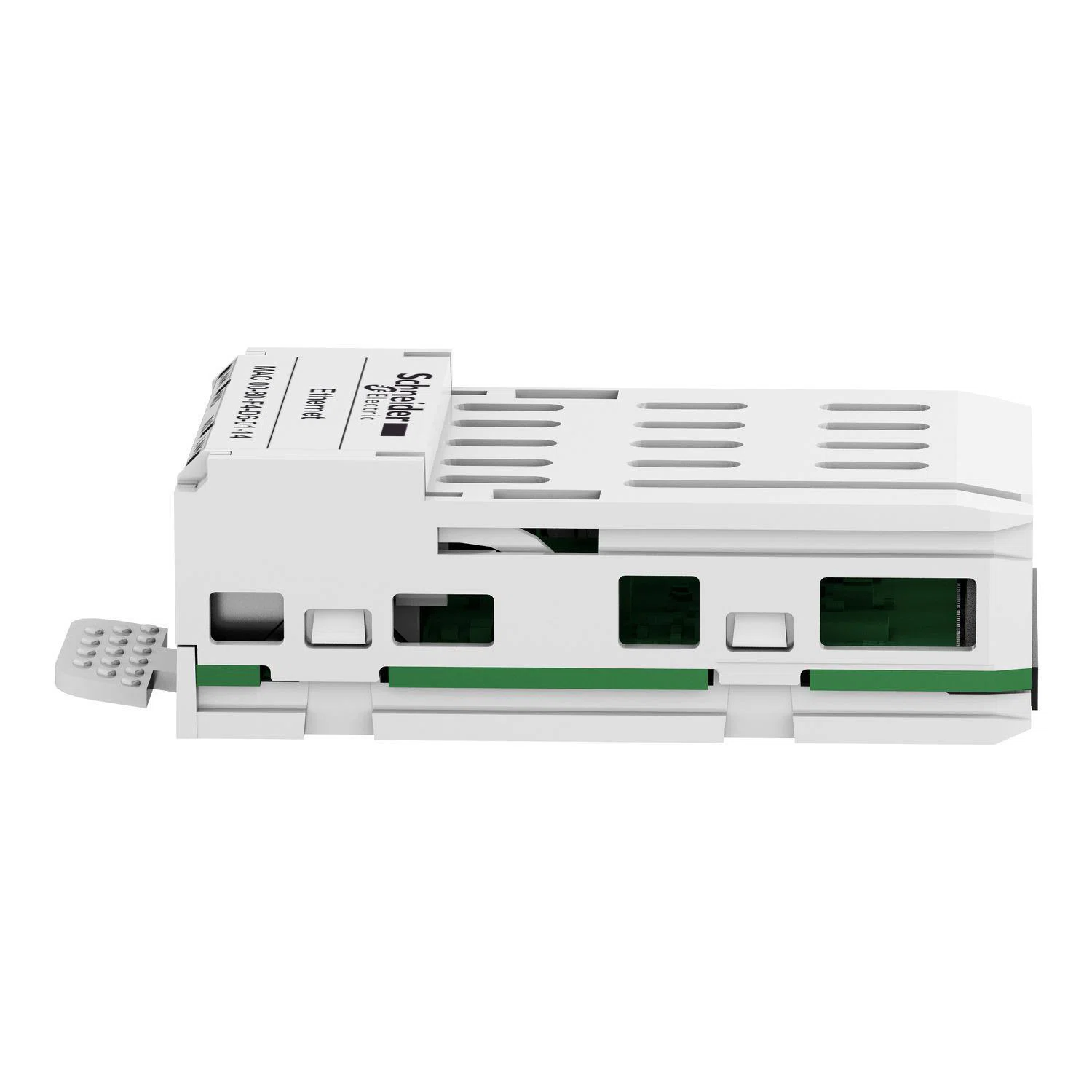

This Altivar Ethernet TCP/IP communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Machine ATV320, Lexium 32 and Altivar 32. Removable module allows last minute decisions on drive communication protocol and thus facilitates installation project management.
Manuals & Documentation
Features
- Connect drives easily to Ethernet TCP/IP networks
- Equipped with 2 RJ45 ports for secure and efficient communication
- Enables last-minute protocol changes, simplifying installation management
- Enables real-time data exchange for improved process control and performance
Specifications
Identifiers
| Manufacturer Part Number |
VW3A3616
|
|---|---|
| GTIN |
03606480177590
|
| UPC |
785901924975
|
|---|---|
| EAN |
3606480177590
|
General Information
| Manufacturer |
Schneider Electric
|
|---|---|
| Brand |
Square D™
|
| Country Of Origin |
CN
|
| Warranty |
18 Months
|
|---|---|
| Standards Approvals |
RoHS Compliant | PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
|
| Application |
For use with Altivar® Machine ATV320, Altivar® 32,Lexium 32 variable speed drives applications
|
Technical Information
| Mounting Type |
Surface
|
|---|
| Type |
2-Connector
|
|---|
