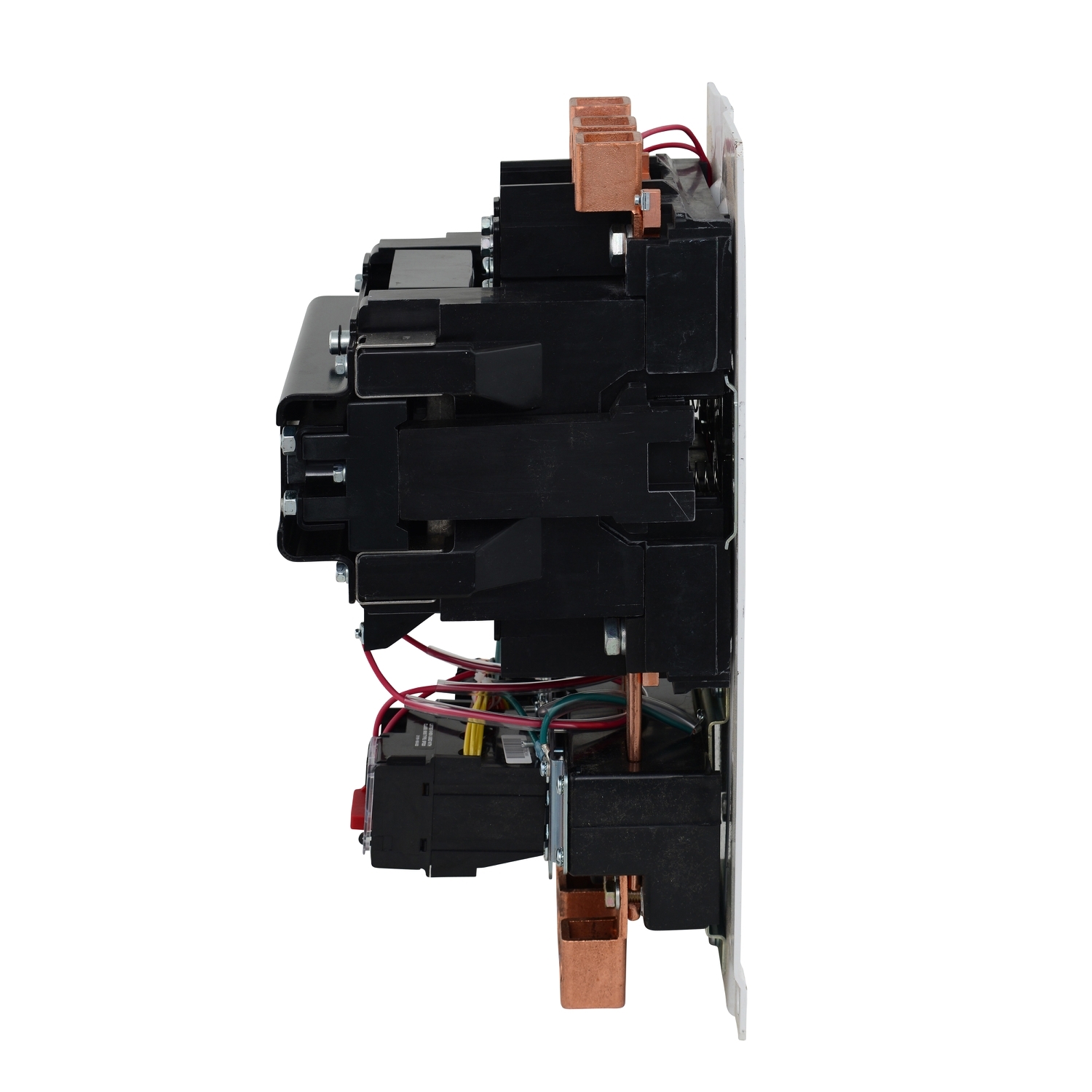

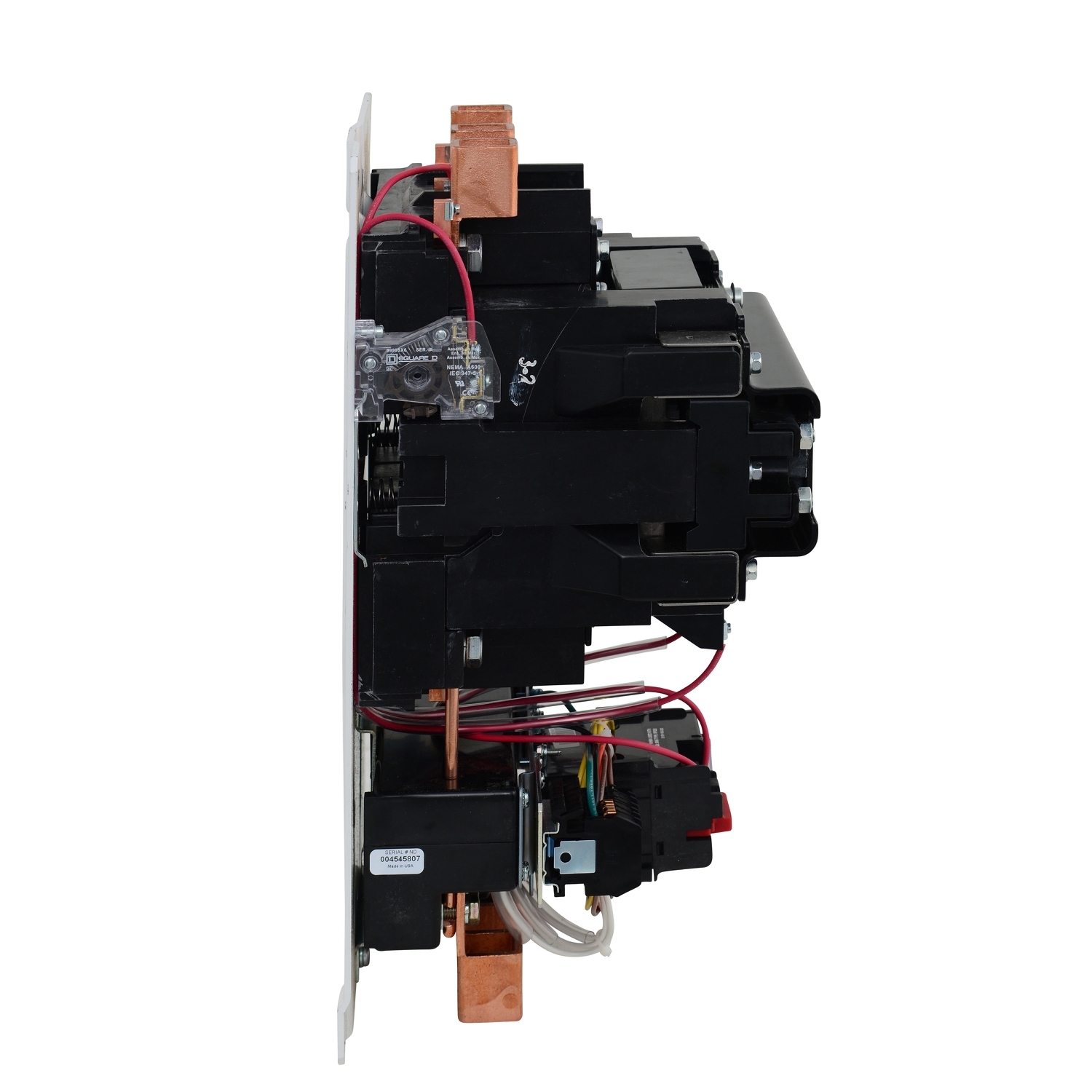

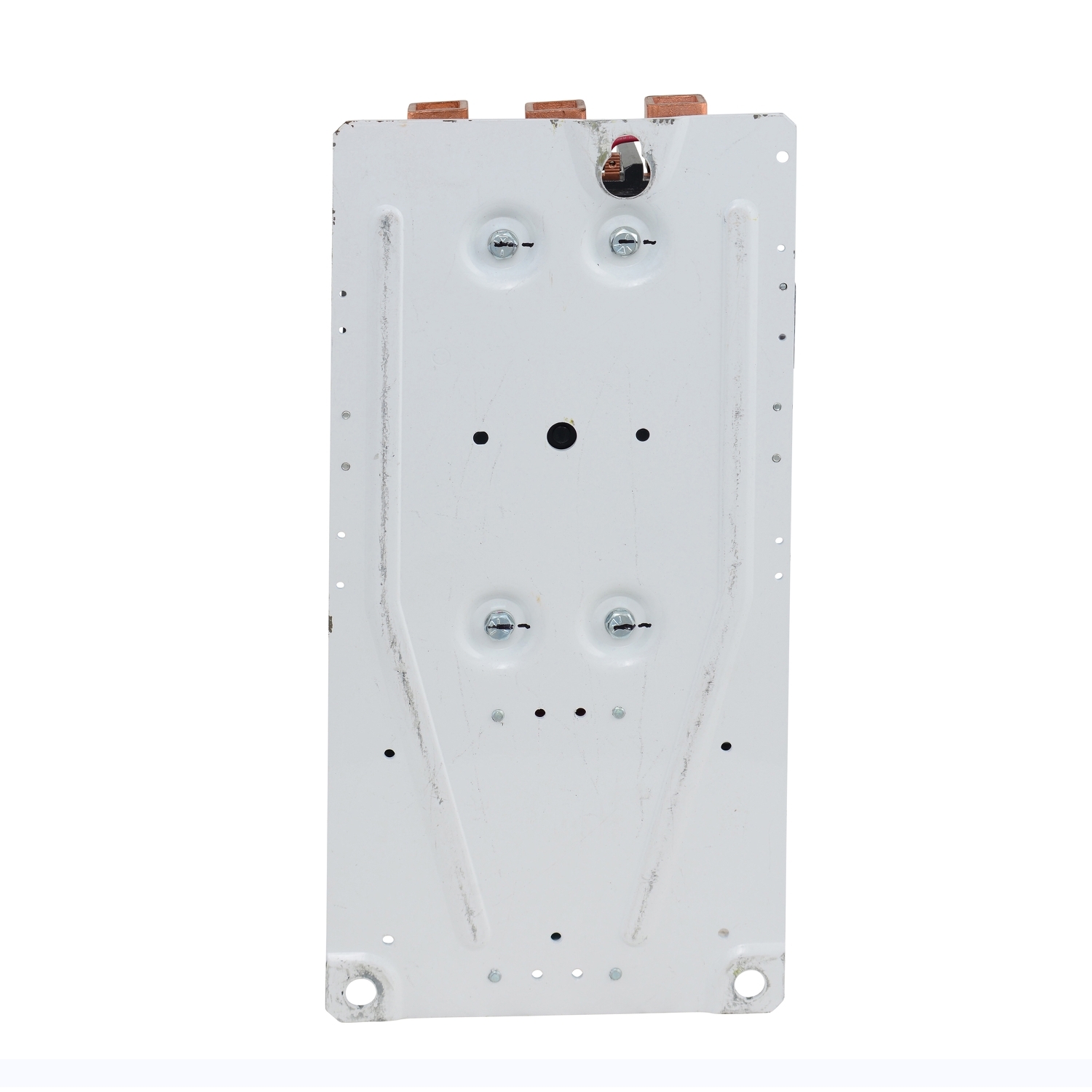

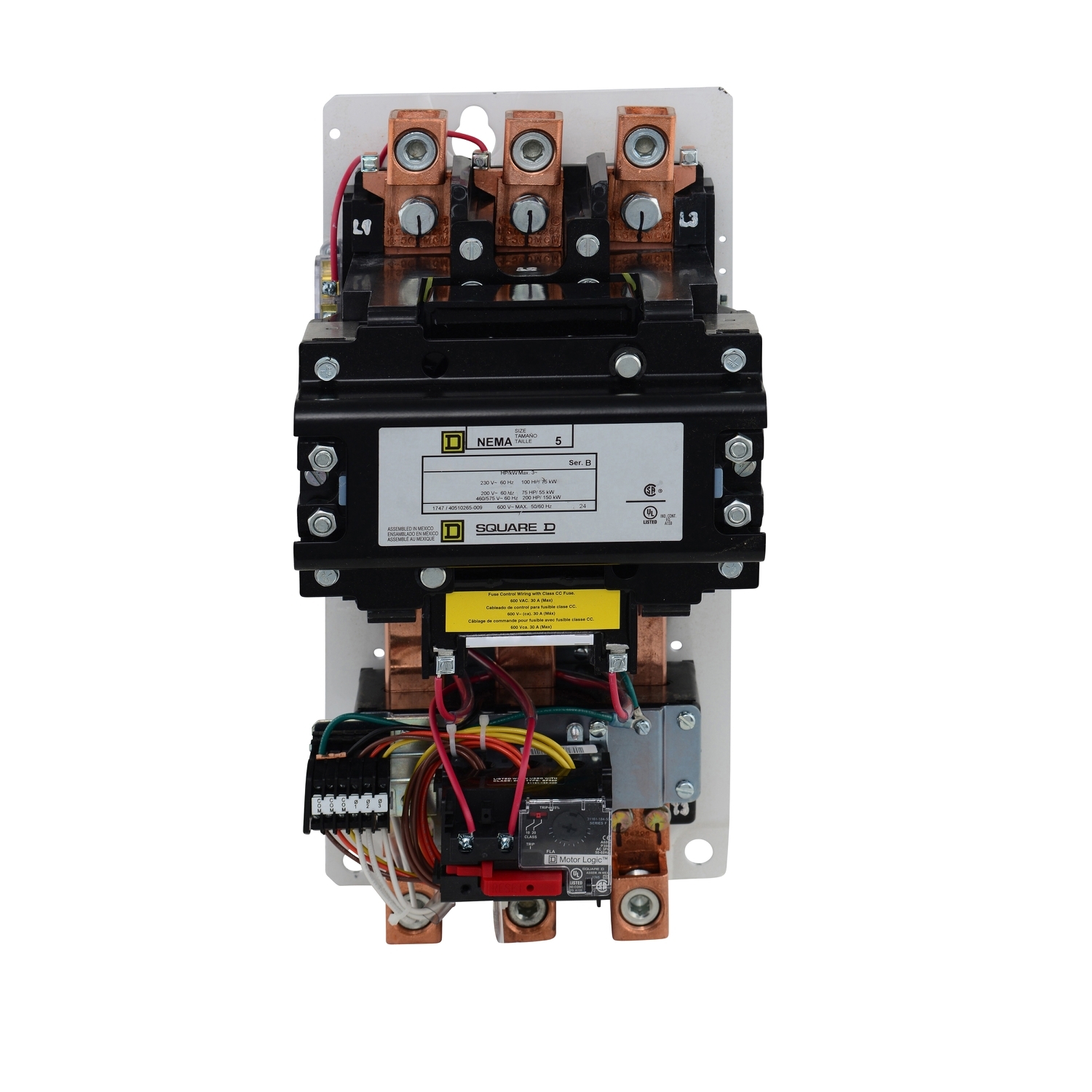

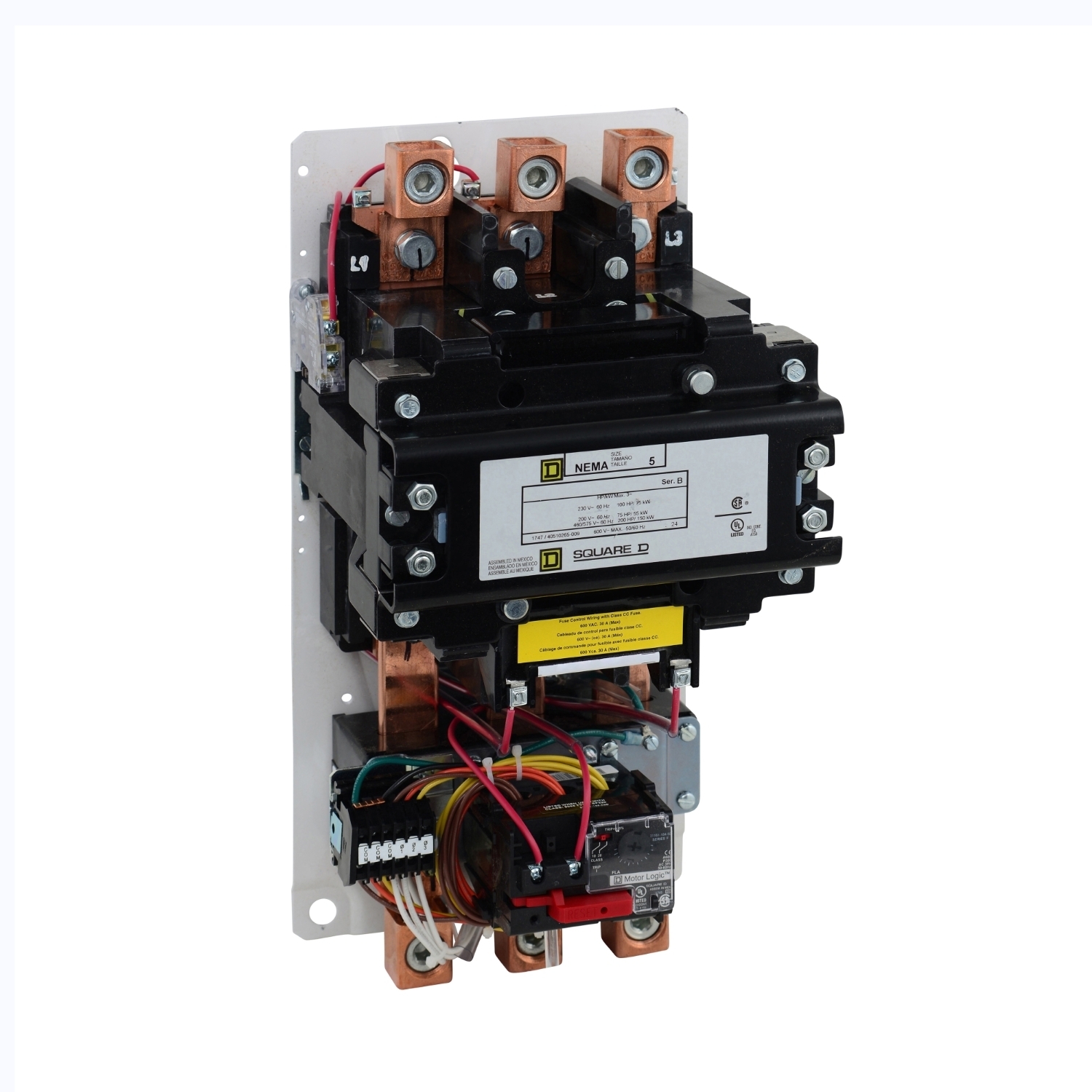

8536SGO1V02H30S Type S Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, Open Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8536SGO1V02H30S
- UPC:
- 785901604082
- Item #:
- 463564
8536SGO1V02H30S Type S Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, Open Enclosure
- MFR #:
- 8536SGO1V02H30S
- UPC:
- 785901604082
- Item #:
- 463564
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 5 non-reversing starter has a 270 ampere rating. This NEMA Size 5 motor starter has 3 phase ratings of 75 HP at 200 VAC, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 90A to 270A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 17.56 inches tall, 8.56 inches wide and 8.75 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Manuals & Documentation
| Catalog Number | 8536SGO1V02H30S |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| UPC | 785901604082 |
| GTIN | 00785901604082 |
