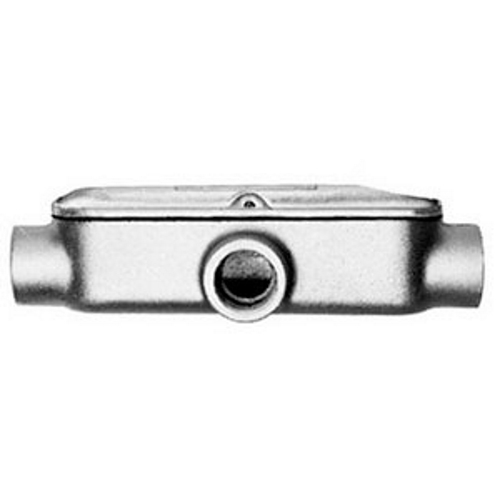

Unilet; NEC 6x8x Series Type T Mogul Conduit Body; 2 Inch, Malleable Iron
- MFR:
- Appleton Electric
- MFR #:
- BT200-M
- UPC:
- 781381463645
- Item #:
- 46294
Unilet; NEC 6x8x Series Type T Mogul Conduit Body; 2 Inch, Malleable Iron
- MFR #:
- BT200-M
- UPC:
- 781381463645
- Item #:
- 46294
Mogul UNILETS Type T NEC 8X Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 2 IN, Length: 17.94 IN, Width: 4.13 IN, Height: 4.44 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powde
Manuals & Documentation
| Catalog Number | BT200-M |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Rigid Metal Conduit And IMC |
| Connection | Tapered Female Threaded |
| Finish | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Hub Size | 2 IN |
| Material | Malleable Iron |
| Special Features | Exclusive built-in rollers facilitate cable pulling; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; These are like C moguls (1 IN through 4 IN), except with an additional middle side hub-distance between the centerline of each C hub conduit stop exceeds eight times the trade diameter of the conduit per NEC 314.28(A)(1); Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 143 CU-IN |
| Standard | UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| UPC | 781381463645 |
| GTIN | 00781381463645 |
| Item Type | Type T NEC 8X Conduit Outlet Body With Assembled Cover And Gasket |
| Length | 17.94 |
| Length UOM | Inch |
| Width | 4.13 |
| Width UOM | Inch |
| Height | 4.44 |
| Height UOM | Inch |
