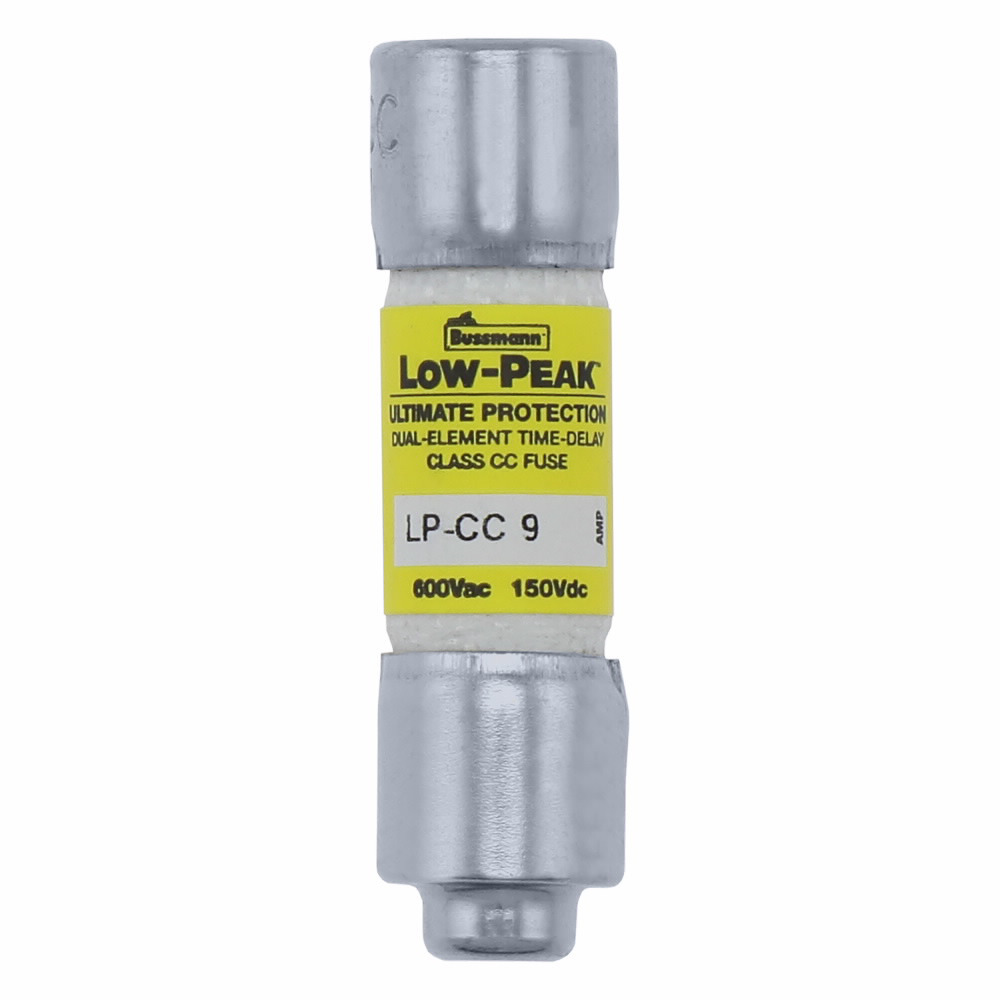

Eaton Bussmann series LP-CC fuse, Current-limiting time-delay fuse, Rejection style, 9 A, Dual, CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 20 kAIC at 150 Vdc,200 kAIC at 600 V, Melamine tube, Standard, 10, 600 V, 150 Vdc
- MFR:
- Eaton Bussmann
- MFR #:
- LP-CC-9
- UPC:
- 051712180535
- Item #:
- 461970
Eaton Bussmann series LP-CC fuse, Current-limiting time-delay fuse, Rejection style, 9 A, Dual, CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 20 kAIC at 150 Vdc,200 kAIC at 600 V, Melamine tube, Standard, 10, 600 V, 150 Vdc
- MFR #:
- LP-CC-9
- UPC:
- 051712180535
- Item #:
- 461970
Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection
Manuals & Documentation
| Catalog Number | LP-CC-9 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 9 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 20 kAIC at 150 Vdc|200 kAIC at 600 Vac |
| Material | Melamine tube |
| Response Time | 12 S at 200% |
| Special Features | Non-indicating, High in-rush current motor protection |
| Standard | CE Marked,RoHS Compliant |
| UPC | 051712180535 |
| GTIN | 00051712180535 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 13/32 In Diameter X 1-1/2 In Length |
| Voltage Rating | 600 Vac, 150 Vdc |
