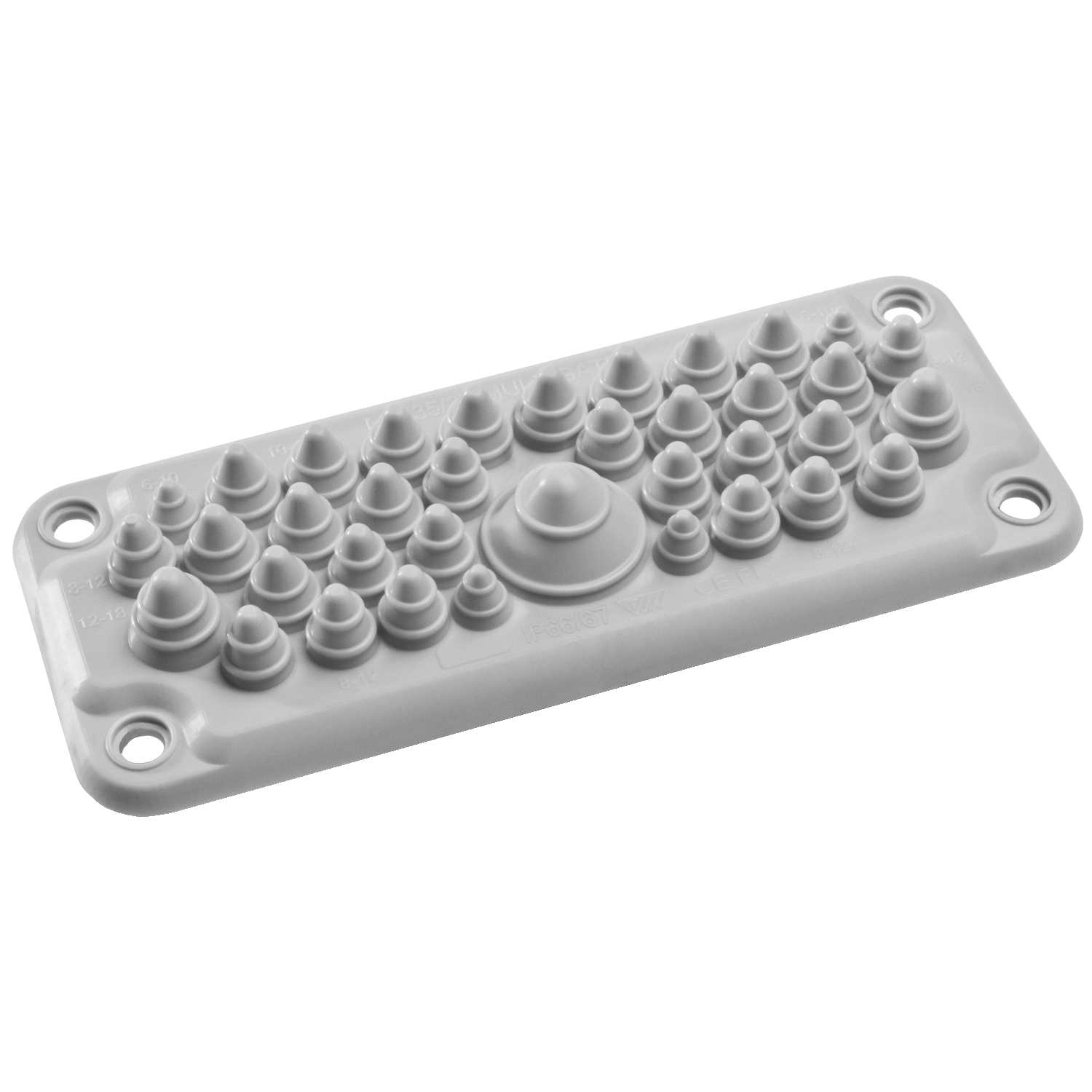

NSYAECPFLT35 Type FL21 Cable Entry Membrane With 37-Entrances, For Use With Spacial S3D, CRN Compact Enclosure, Spacial SF Enclosure, IP66, Thermoplastic Elastomer, Gray
- MFR:
- Schneider Electric
- MFR #:
- NSYAECPFLT35
- Item #:
- 461888
NSYAECPFLT35 Type FL21 Cable Entry Membrane With 37-Entrances, For Use With Spacial S3D, CRN Compact Enclosure, Spacial SF Enclosure, IP66, Thermoplastic Elastomer, Gray
- MFR #:
- NSYAECPFLT35
- Item #:
- 461888
Cable entry membrane type FL21 for Spatial S3D, Spatial CRN and Spatial SF enclosures. The 37 entrances allow multi-purpose use with cables ranging from 6 mm to 32 mm in diameter. The 37 entry diameter are the following: 4 entry ranging from 6 mm to 10 mm, 14 entry ranging from 8 mm to 12 mm, 16 entry ranging from 10 mm to 14 mm, 2 entry ranging from 12 mm to 18 mm and 1 entry ranging 17 mm to 32 mm. IP66 protection against water and dust is maintained according to IEC 60529. The product can be used in a temperature range from -40 C to +100 C and have a flame resistance of 650 C according to UL 94 V0. The cut-out dimensions are 214 mm x 90 mm, and the external dimensions are 214 mm x 88 mm. The cable entry can be installed on cable gland plate adapter or directly on enclosure. Fixing elements are delivered with the product.
Manuals & Documentation
| Catalog Number | NSYAECPFLT35 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=10176779&lang=en-us |
| GTIN | 03606480169045 |
| Width | External: 214 mm;fixing center: 194 mm |
| Depth | Fixing center : 62 mm;external : 88 mm |
