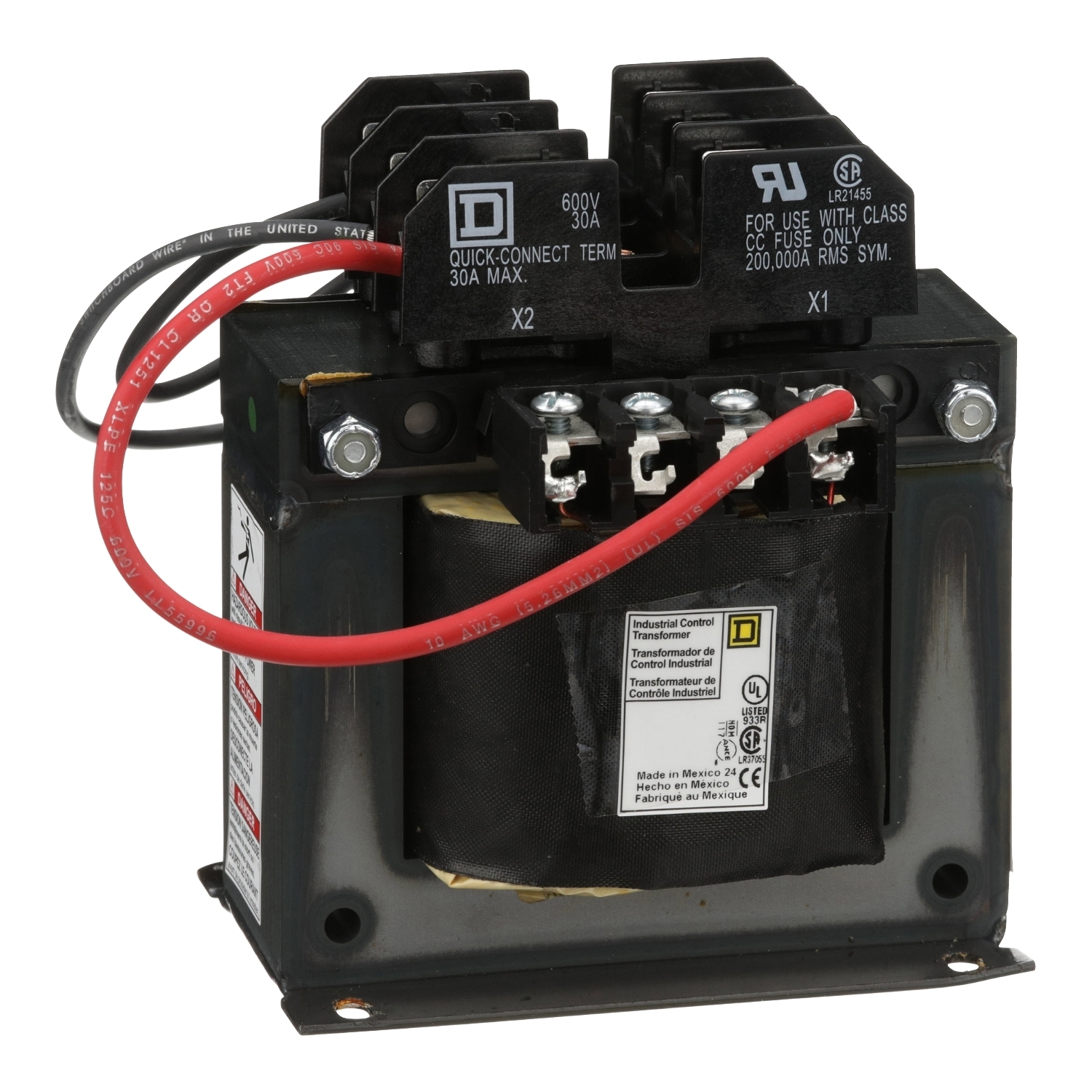

9070TF300D3 Type TF Industrial Control Transformer, 208 V AC Primary, 120 VAC Secondary, 300 VA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- Schneider Electric
- MFR #:
- 9070TF300D3
- UPC:
- 785901907190
- Item #:
- 460661
9070TF300D3 Type TF Industrial Control Transformer, 208 V AC Primary, 120 VAC Secondary, 300 VA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- 9070TF300D3
- UPC:
- 785901907190
- Item #:
- 460661

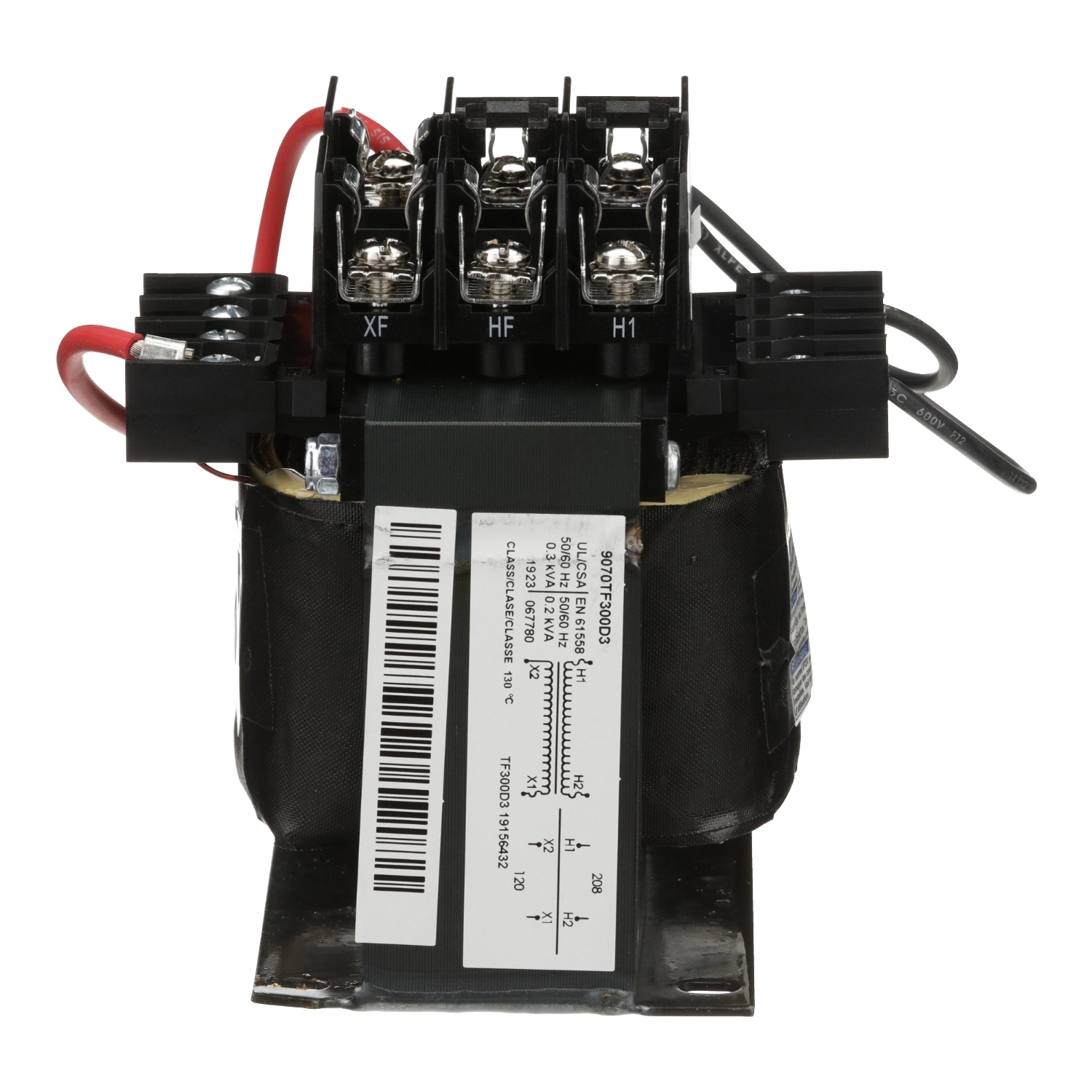

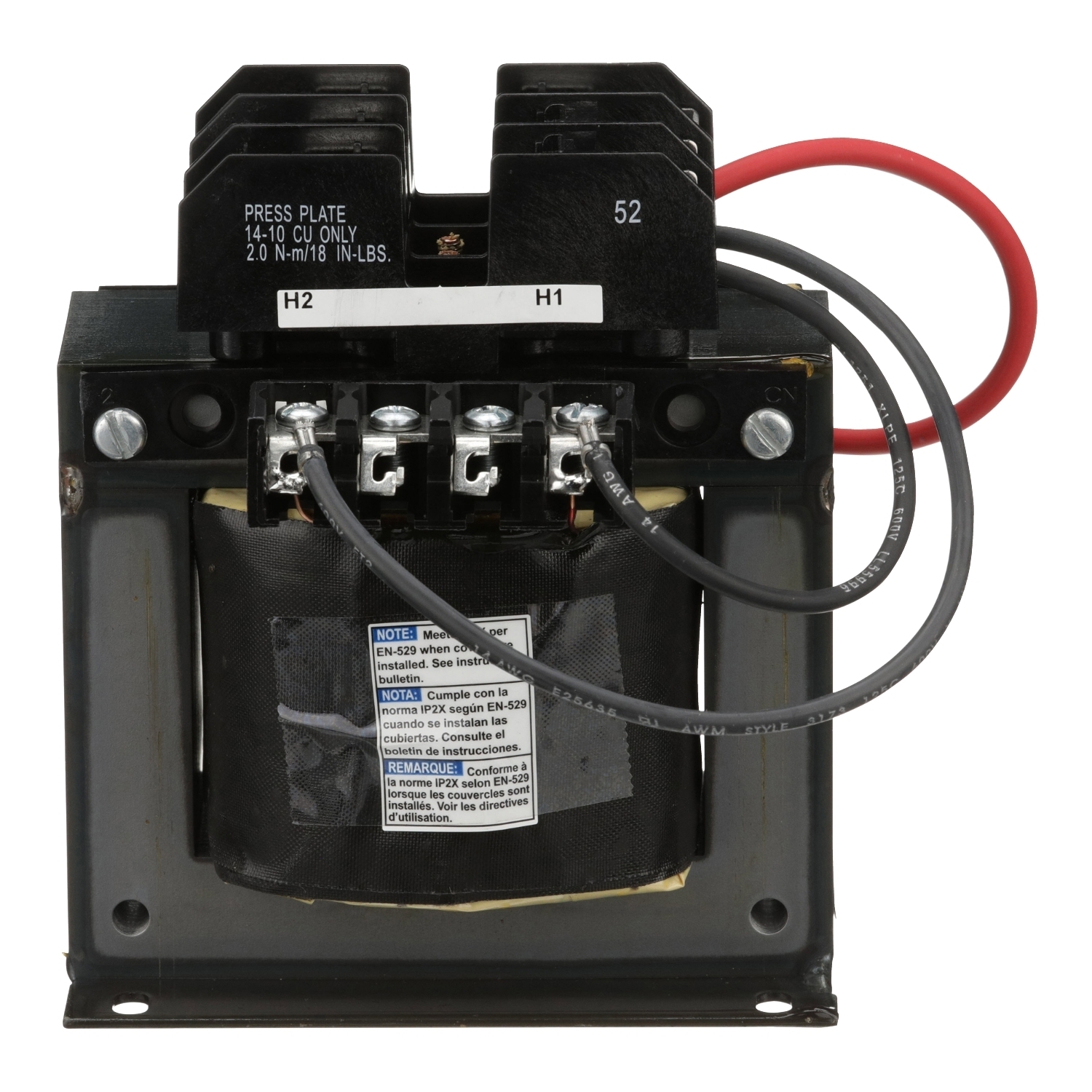

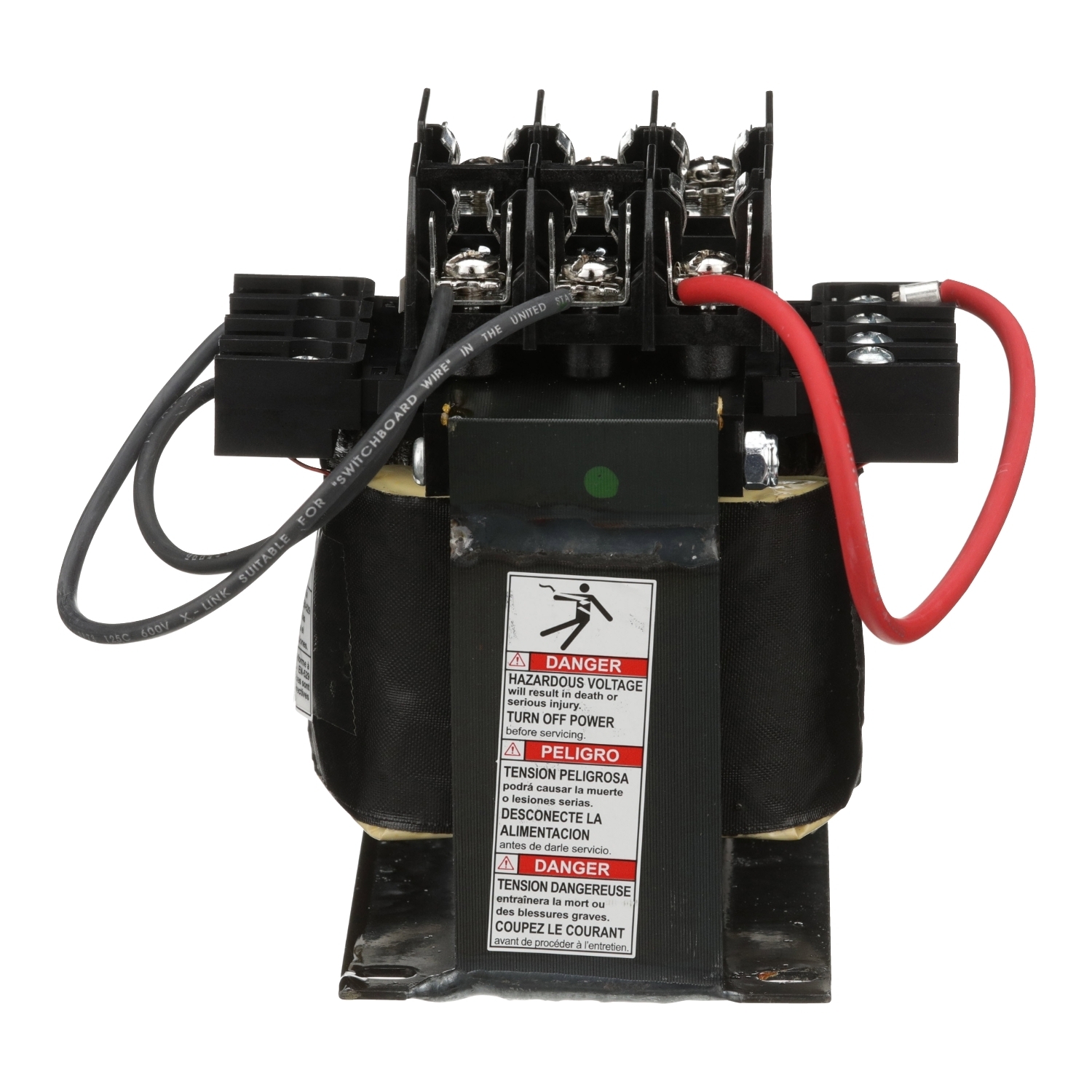

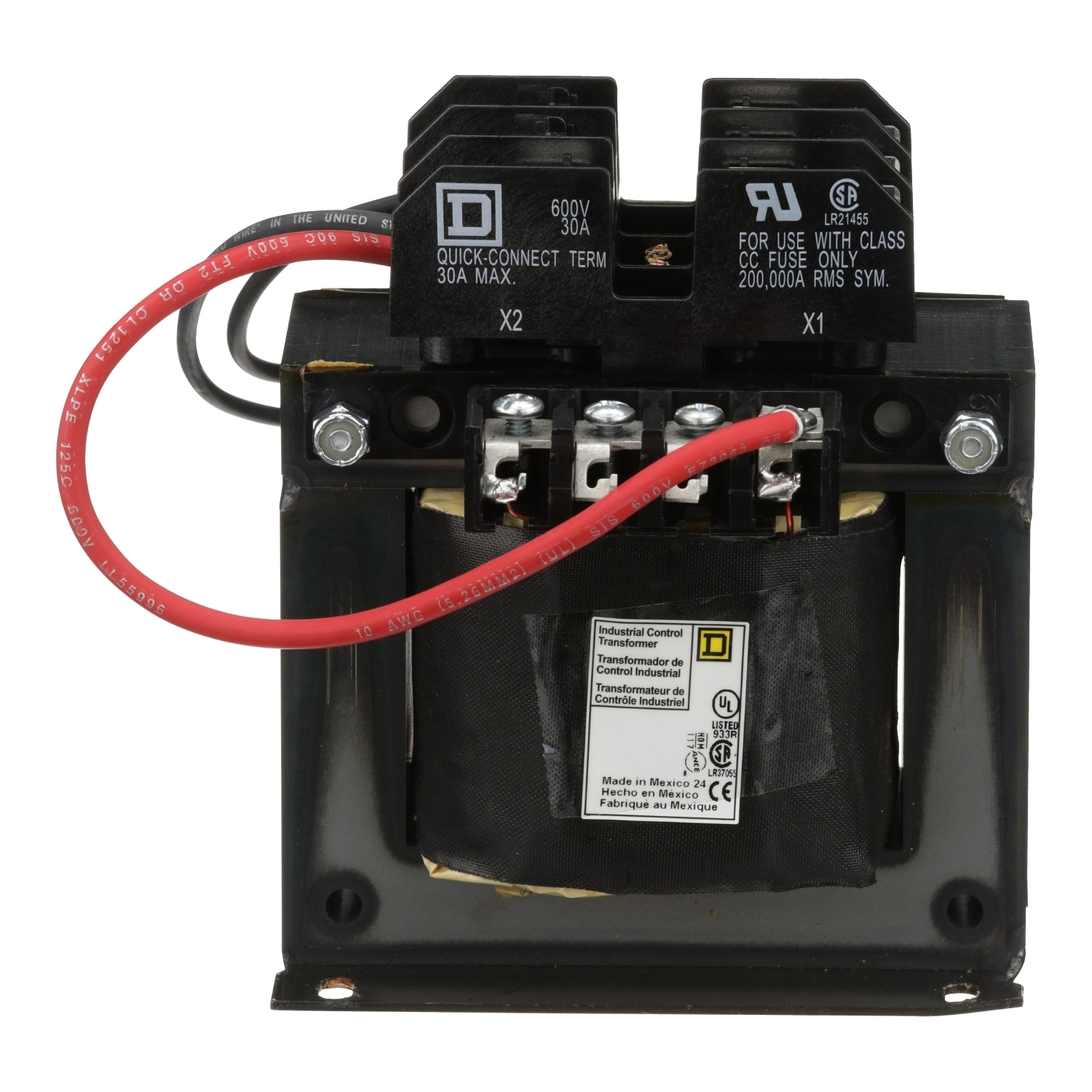

Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 300VA and is single phase. It has a 208 V primary voltage and 120 V secondary voltage with a temperature rise of 80 C. Dimensions for this product are 5.73 in (H), 5.25 in (W), 6.04 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.
Manuals & Documentation
| Catalog Number | 9070TF300D3 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=454561&lang=en-us |
| UPC | 785901907190 |
| GTIN | 00785901907190 |
