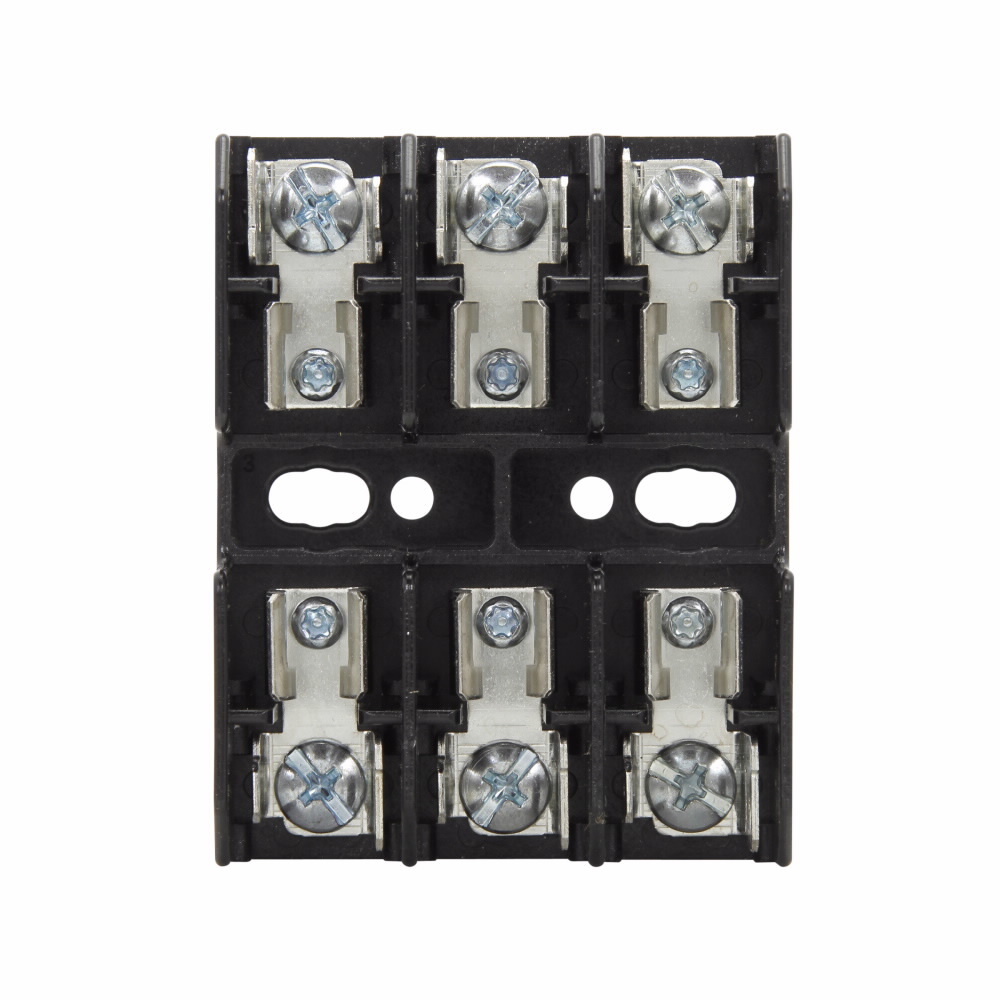

BG3013SQ BG Series Open Style Fuse Block, 600 V, 0.18 to 15 A, Class: G, 14 to 10 AWG Wire, 3 Poles
- MFR:
- Eaton Bussmann
- MFR #:
- BG3013SQ
- UPC:
- 051712736701
- Item #:
- 458867
BG3013SQ BG Series Open Style Fuse Block, 600 V, 0.18 to 15 A, Class: G, 14 to 10 AWG Wire, 3 Poles
- MFR #:
- BG3013SQ
- UPC:
- 051712736701
- Item #:
- 458867
Eatons Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option
| Catalog Number | BG3013SQ |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Connection | Screw/quick connect |
| Material | Thermoplastic |
| Mounting | Din Rail |
| Special Features | Wire Size 14 To 10 AWG (Copper/Aluminum), Interrupt Rating 100 kA (RMS Symmetrical), For Use With SC Fuse |
| Standard | CSA Certified ,Contact Manufacturer ,UL Recognized,RoHS Compliant |
| UPC | 051712736701 |
| GTIN | 00051712736701 |
| Item Type | Open fuse block |
| Size | 3.00 In Length X 2.38 In Width X 1.22 In Height |
| Voltage Rating | 600 V |
