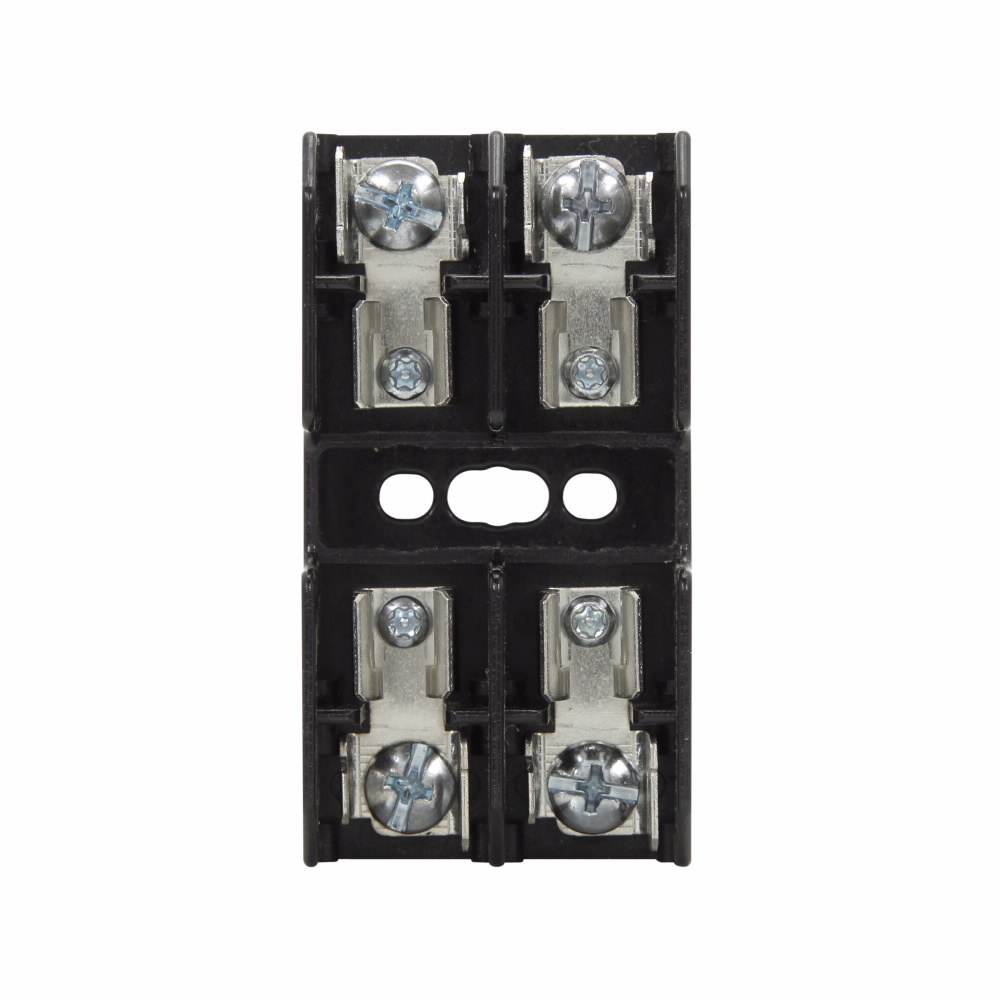

BG3012SQ BG Series Open Fuse Block, 600 V, 0.18 to 15 A, Class: G, 14 to 10 AWG Wire, 2 Poles
- MFR:
- Eaton Bussmann
- MFR #:
- BG3012SQ
- UPC:
- 051712736626
- Item #:
- 458866
BG3012SQ BG Series Open Fuse Block, 600 V, 0.18 to 15 A, Class: G, 14 to 10 AWG Wire, 2 Poles
- MFR #:
- BG3012SQ
- UPC:
- 051712736626
- Item #:
- 458866
Eatons Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option
| Catalog Number | BG3012SQ |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Connection | Screw/quick connect |
| Material | Thermoplastic |
| Mounting | Din Rail |
| Special Features | Wire Size 14 To 10 AWG (Copper/Aluminum), Interrupt Rating 100 kA (RMS Symmetrical), For Use With SC Fuse |
| Standard | Contact Manufacturer ,CSA Certified ,UL Recognized,RoHS Compliant |
| UPC | 051712736626 |
| GTIN | 00051712736626 |
| Item Type | Open fuse block |
| Size | 3.00 In Length X 1.63 In Width X 1.22 In Height |
| Voltage Rating | 600 V |
