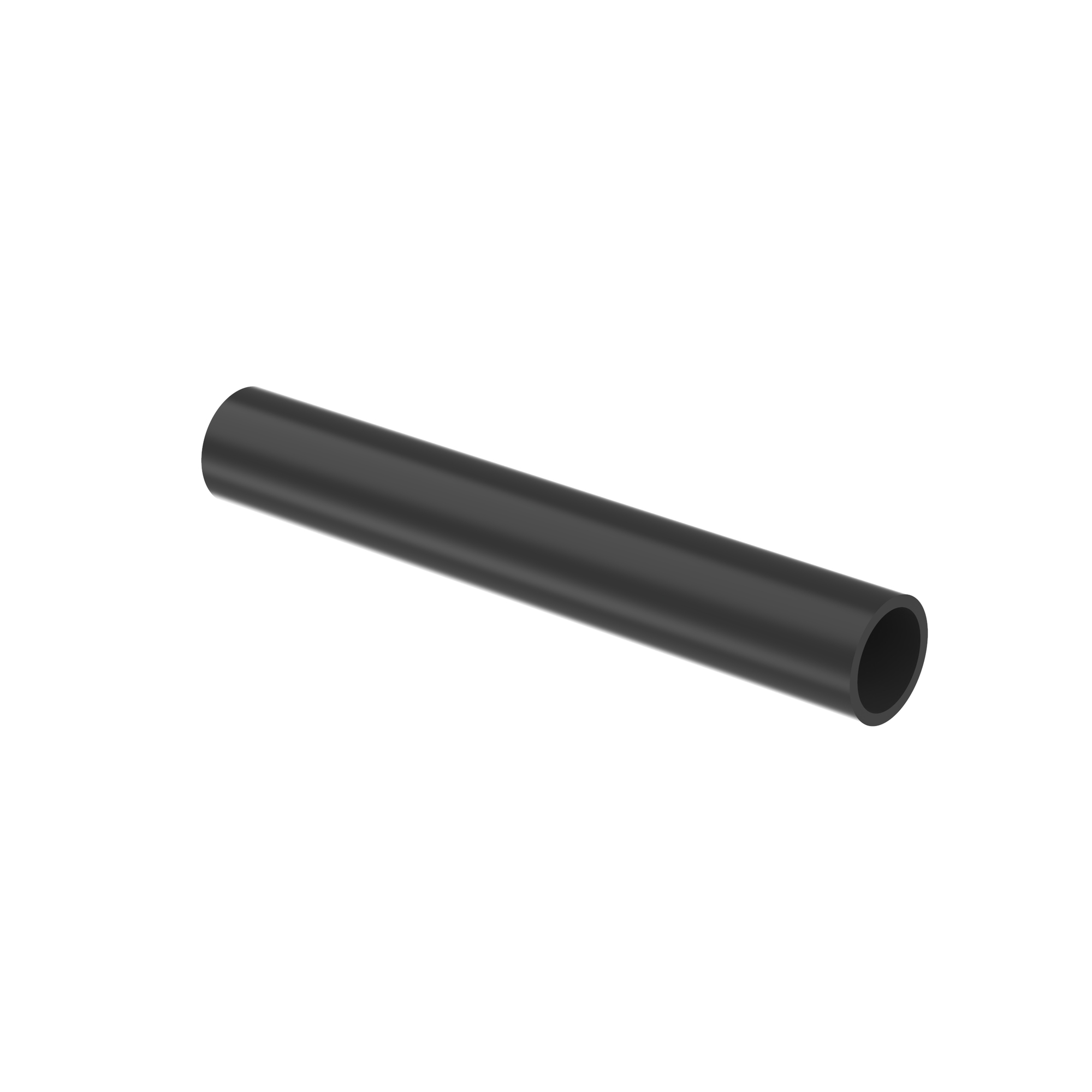

The HST0.8-48-5Y Thick Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in outdoor, wet locations. Thick wall for direct burial. Voltage rating: UL 486D Listed for 600 V 90C continuous use. Shrink ratio: 3:1. Temperature range: -67F to 230F (-55C to 110C). Cross-linked Polyolefin. 0.75 (19.1mm) dia. 48.0 (1219.2mm) length. Color Black. 5 per package.
Manuals & Documentation
| Catalog Number | HST0.8-48-5Y |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Canada |
| Made in USA | No |
| Application | For Wet Locations; Insulating and protecting wires and cables; Suitable for direct burial |
| Color | Black |
| Standard | UL224 VW-1; UL/UR: E342365; UL Listed: E173379; CSA: 244528; Mil Spec: AS23053 |
| UPC | 074983107216 |
| GTIN | 00074983107216 |
| Item Type | Heat Shrink Tubing |
| Inside Diameter | 0.22 IN |
| Outside Diameter | 0.75 IN |
| Thickness | 0.09 IN |
