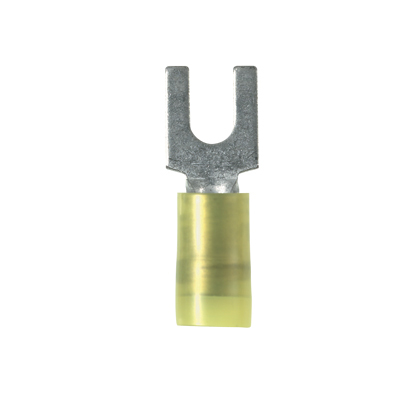

The PN10-8F-L Pan-Term Terminal is a nylon insulated, fork terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Barrel serrations assure good wire contact and maximum tensile strength.
Manuals & Documentation
| Catalog Number | PN10-8F-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Yellow |
| Connection | Standard |
| Enclosure | Fork shape |
| Finish | Tin-Plated |
| Insulation | Nylon |
| Material | Copper |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| UPC | 074983803187 |
| GTIN | 00074983803187 |
| Item Type | Fork Terminal |
| Size | #8 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #10 AWG |
