Telemecanique

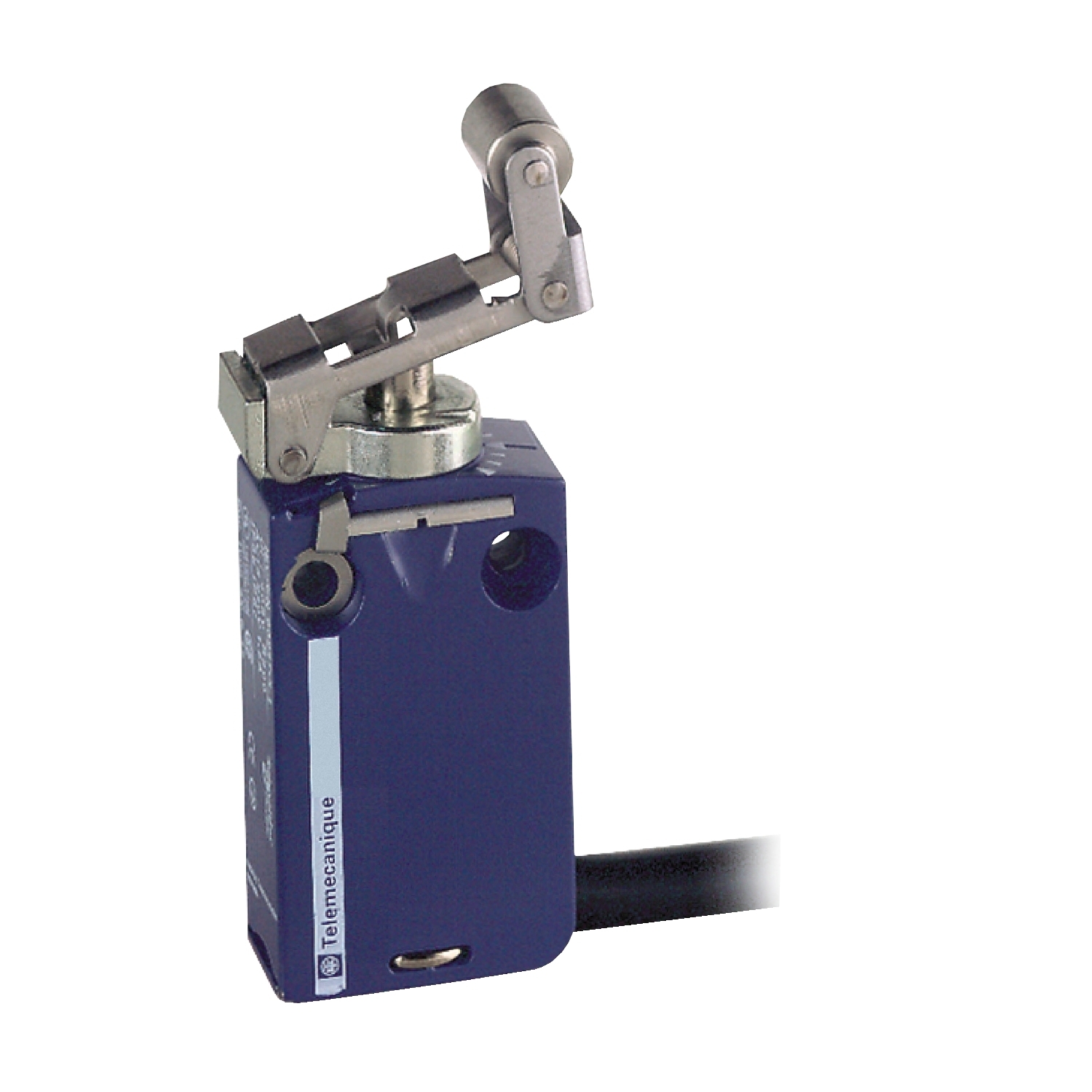

XCMD2124L1 OsiSense Fixed Heavy Duty Miniature Standard Format Limit Switch, 240 V AC, 5 A, Retractable Roller Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCMD2124L1
UPC:
785901858997
Item #:
454329

This XCMD miniature format limit switch has a steel retractable roller lever plunger and a Zamak body. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.

Manuals & Documentation
Catalog Number XCMD2124L1
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Action Lateral approach, 2 directions;Snap action;By 30 Degrees cam
Actuator Spring return roller lever plunger metal retractable
Application MINIATURE VARIABLE
Connection Removable cable connector
Contact Configuration 1 NC + 1 NO
Enclosure IP66/67/68
Mounting By The Body
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,METAL
Standard EN/IEC 60947-5-1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857738&lang=en-us
UPC 785901858997
GTIN 03389110218442
Item Type Limit switch
Size 0.63
Operating Temperature -25-70 A Degrees C
Voltage Rating 300 V (CSA, UL) 400 V (IEC)
