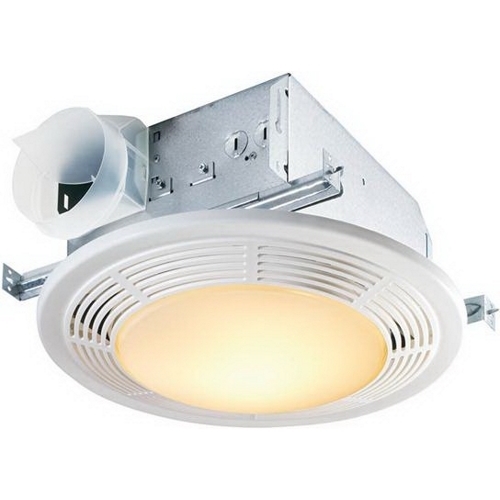

NuTone 100 CFM Ventilation Fan with Incandescent Lighting, White Polymeric Grille, 5.0 Sones
- MFR:
- Broan-NuTone
- MFR #:
- 8664RP
- UPC:
- 784891216251
- Item #:
- 45231
NuTone 100 CFM Ventilation Fan with Incandescent Lighting, White Polymeric Grille, 5.0 Sones
- MFR #:
- 8664RP
- UPC:
- 784891216251
- Item #:
- 45231
Manuals & Documentation
| Catalog Number | 8664RP |
| Manufacturer | Broan-NuTone |
| Brand | NuTone |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Removing Stale, Steamy Air From Bathrooms Up To 95 SQ-FT And Other Rooms Up To 125 SQ-FT |
| Special Features | Powerful deluxe fan-light combination; white polymeric grille impervious to bathroom climate; Glass lens brightly diffuses light; Frosted 9-3/8 IN diameter lens extends only 1-7/8 IN from finished ceiling; Centrifugal polypropylene blower wheel performs efficiently with a minimum of sound; Tapered duct adapter with built-in damper for easy installation to 4 IN duct; May be wired for simultaneous or separate fan light operation; 0.020 IN galvanized steel housing; Steel, white powder coat finish reflector; Plug-in, thermally protected motor; Type IC for use with thermal insulation; 1 YR warranty |
| Standard | UL Listed For Use In A Tub/Shower Stall Enclosure When Used With GFI Branch Circuit Wiring, HVI 2100 Certified |
| UPC | 784891216251 |
| GTIN | 00784891216251 |
| Item Type | Ventilation Fan |
| Length | 1.375 |
| Length UOM | Inch |
| Width | 0.80833 |
| Width UOM | Inch |
| Height | 1.38333 |
| Height UOM | Inch |
| Weight | 11.7 |
| Weight UOM | Pounds |
