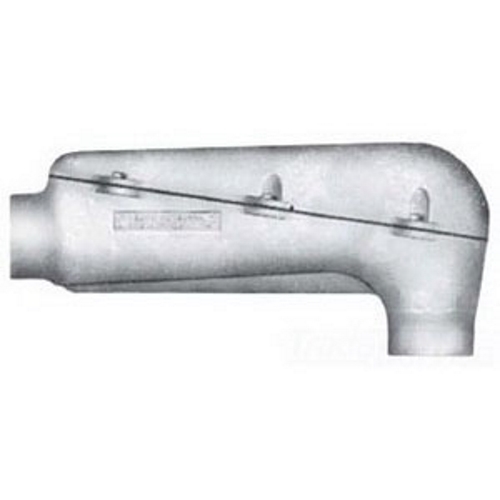

LBDN400-M Unilets Type LBDN Pulling Fitting With Cover and Gasket, 4 in Hub, 740 cu-in, Malleable Iron, Triple Coated
- MFR:
- Appleton Electric
- MFR #:
- LBDN400-M
- UPC:
- 781381474634
- Item #:
- 45194
LBDN400-M Unilets Type LBDN Pulling Fitting With Cover and Gasket, 4 in Hub, 740 cu-in, Malleable Iron, Triple Coated
- MFR #:
- LBDN400-M
- UPC:
- 781381474634
- Item #:
- 45194
UNILETS Type LBDN Pulling Fitting With Cover And Gasket, Hub Size: 4 IN, Length: 27-1/2 IN, Width: 7 IN, Height: 12-1/2 IN, Material: Malleable Iron Body, Neoprene Gasket, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Female Threaded, Standard: UL 514B, UL File Number E2527, For Use With Rigid Metal Conduit And IMC
Manuals & Documentation
| Catalog Number | LBDN400-M |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Rigid Metal Conduit And IMC |
| Connection | Female Threaded |
| Finish | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Hub Size | 4 IN |
| Material | Malleable Iron Body, Neoprene Gasket |
| Special Features | Serve as pulling fittings - ideal for heavy, difficult to bend conductors; Make 90 DEG bends in conduit - straight pull through hubs in either direction; Use as service entrance fitting; Complete with gasketed covers; Pulling fittings for heavy conductors |
| Standard | UL 514B, UL File Number E2527 |
| UPC | 781381474634 |
| GTIN | 00781381474634 |
| Item Type | Type LBDN Pulling Fitting With Cover And Gasket |
| Length | 27-1/2 |
| Length UOM | Inch |
| Width | 7 |
| Width UOM | Inch |
| Height | 12-1/2 |
| Height UOM | Inch |
