Appleton

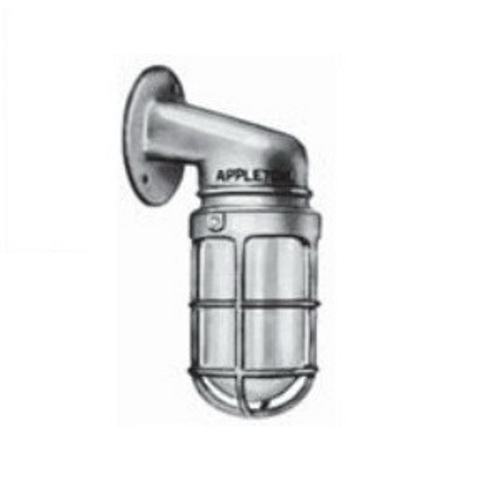

V-51; Unilets; Enclosed and Gasketed Vapor Tight Light Fixture; 60 - 150 Watt, Clear Globe, Zinc Dichromate Electroplated Epoxy Powder-Coated

MFR:
Appleton Electric
MFR #:
JBW10G-M
UPC:
781381458979
Item #:
45164

AppletonUNILETS V-51 Series Incandescent Luminaire With Guard, Fixture Type: Wall Mount, Lamp Type: 60 - 150 WTT A21 Medium Incandescent, Lamp Wattage: 60 - 150 WTT, Voltage Rating: 150 V, Number Of Lamps: 1, Material: Malleable Iron Mounting Hood With Aluminum Adapter And Steel Guard, Porcelain Socket With Brass Screw Shell, Fixture Wattage: 60 - 150 WTT, Length: 4.19 IN, Width: 5.595 IN, Housing Finish: Zinc Electroplate, Chromate And Epoxy Powder Coat Mounting Hood And Globe Adapter, Housing Material: Malleable Iron, Ambient Temperature Range: 75 DEG C Non-Classified, 40 DEG C Classified, Temperature Range: 125 DEG C Supply Wire, Lens Material: Natural Finish Glass Globe, Reflector/Refractor: White Porcelain Enamel Steel Reflector, Standard: NEC: Class I, Division 2, Groups A, B, C, D, CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R, UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428, For Enclosed And Gasketed Lighting Fixtures For Use In Storage Areas, Tunnels, Subways, Chemical Plants And Other Areas Where Moisture, Dirt Or Corrosive Atmospheres Are A Problem, Suitable For Use In Wet Locations, Use With Threaded Metal Conduit

Manuals & Documentation
Catalog Number JBW10G-M
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Enclosed And Gasketed Lighting Fixtures For Use In Storage Areas, Tunnels, Subways, Chemical Plants And Other Areas Where Moisture, Dirt Or Corrosive Atmospheres Are A Problem; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit
Lamp Type 60 - 150 WTT A21 Medium Incandescent
Material Malleable Iron Mounting Hood With Aluminum Adapter And Steel Guard, Porcelain Socket With Brass Screw Shell
Special Features Furnished with connection block for easy wiring; Unitized construction reduces installation and maintenance costs; Shock-absorbing porcelain socket for longer lamp life; Neoprene rubber ring in neck of reflector snaps into groove of mounting hood - protects against vibration and chipping; Guard snaps into two recesses of adapter - no clamps or set screws; Five tapped openings and four close-up plugs
Standard NEC: Class I, Division 2, Groups A, B, C, D; CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428
UPC 781381458979
GTIN 00781381458979
Item Type V-51 Series Incandescent Luminaire With Guard
Length 4.19
Length UOM Inch
Width 5.595
Width UOM Inch
Voltage Rating 150
