AFC Cable Systems

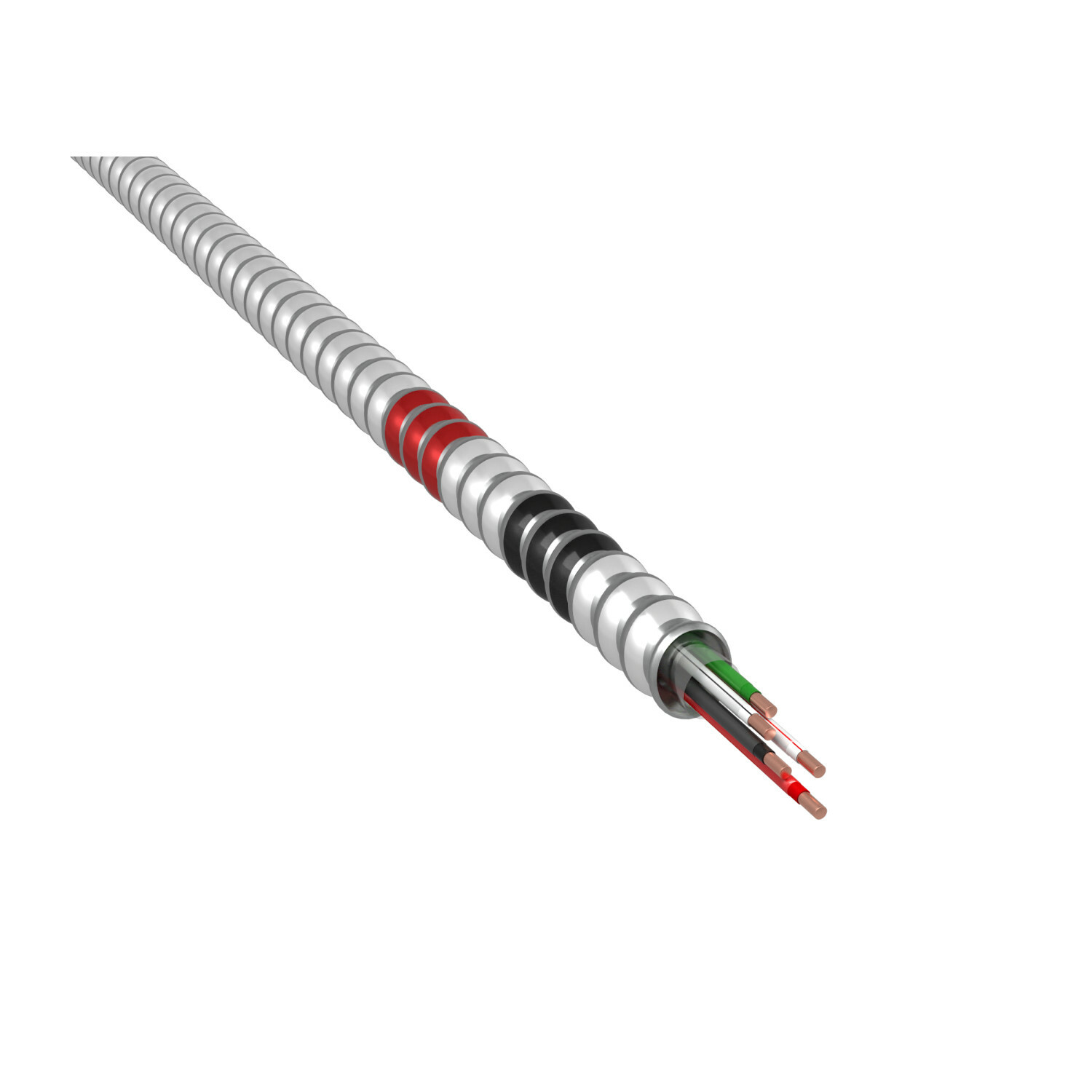

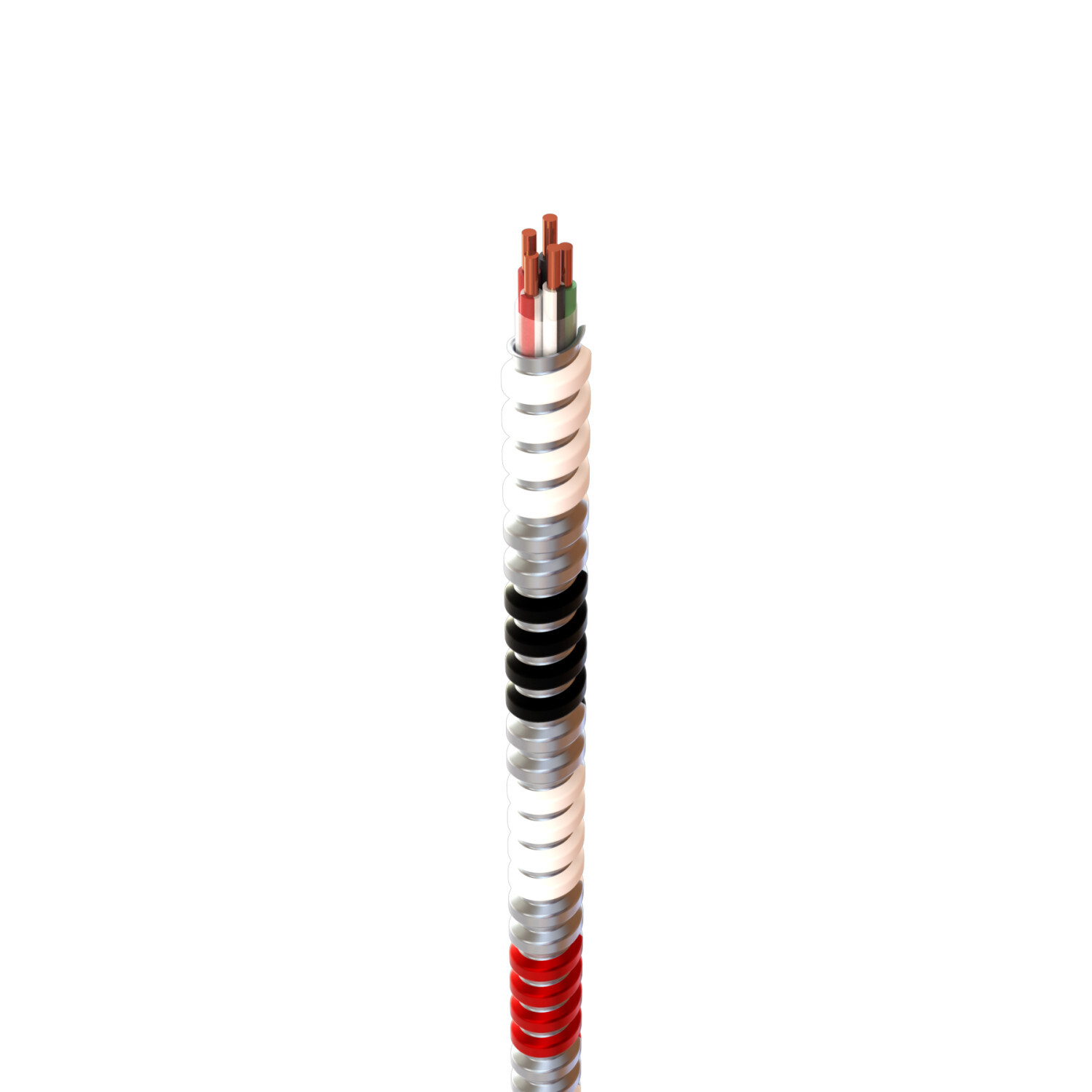

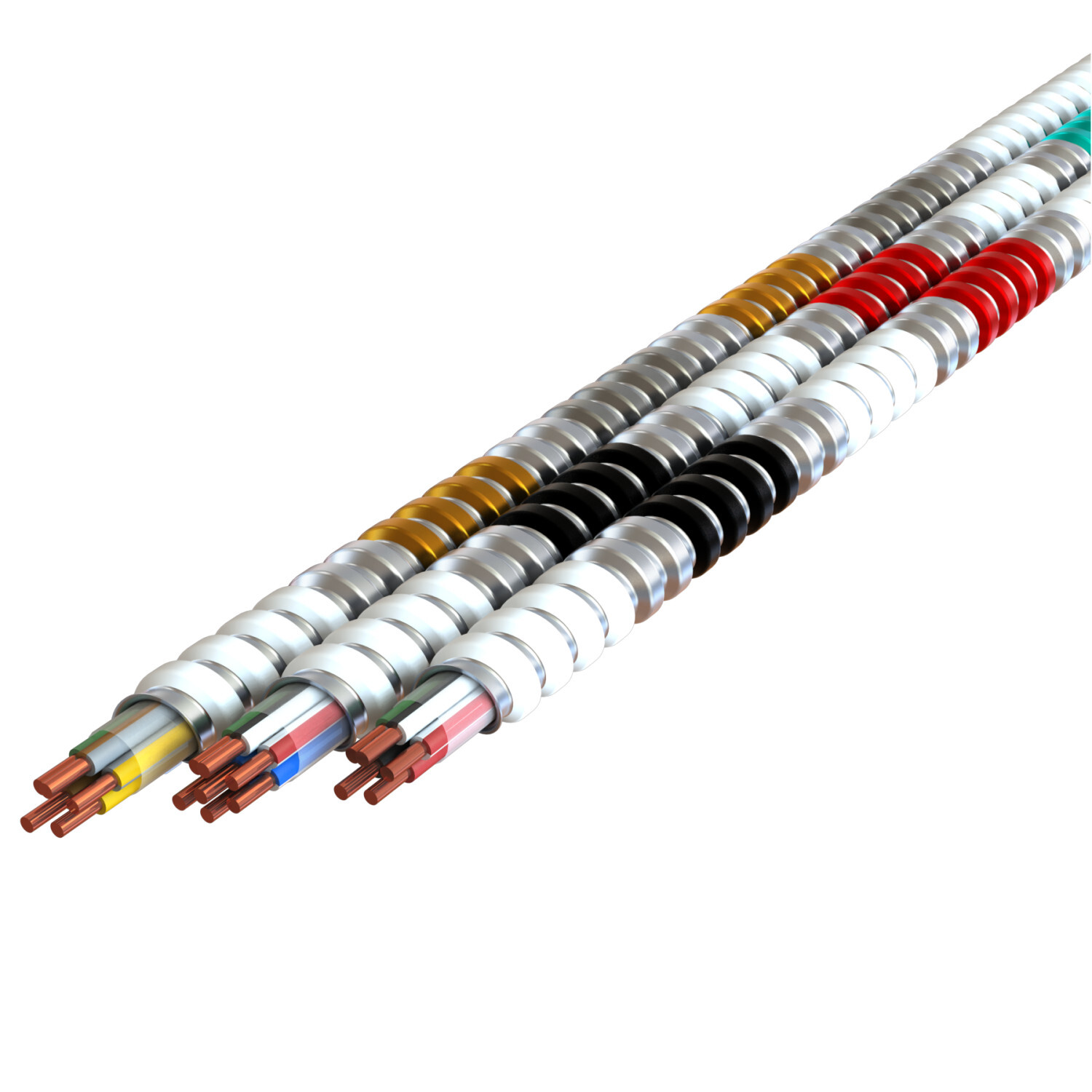

12-2/12-2/12-1 RD BE WE/RD WE/BE GN MC Plus, White Interlocked Galvanized Steel Armor with phase ID, 250' Coil, Type MC - Neutral Per Phase

MFR:
ATKORE - AFC CABLE
MFR #:
3904-42-04
UPC:
077680269348
Item #:
450453

Atkore's MC Plus is the modern-day Type MC homerun cable that incorporates a neutral per-phase design ideal for multi-wire branch circuit applications and addresses harmonics distortions in power distribution systems. MC Plus's neutral per-phase design eliminates shared neutrals and the risk of overloading. This design also helps quickly identify faulty circuits, reducing outages. The MC Plus cable offers improved safety and efficiency in electrical systems for a range of applications.

Manuals & Documentation
Catalog Number 3904-42-04
Manufacturer ATKORE - AFC CABLE
Brand AFC Cable Systems
Sub Brand MC Plus
Country of Origin United States
Made in USA Yes
Armour Interlocked Galvanized Steel Strip
Bend Radius 8.79
Color White
Conductor Material Copper
Conductor Size 12 AWG
Finish White Paint
Material Galvanized Steel
Number of Conductors 5
Standard UL 83, 1479, 1569, 1581, 2556, File Reference E80042 NEC® 210.4(B), 230.43, 300.22(C), 330, 392, 396.10(A), 645Federal Specification A-A–59544 (formerly J-C–30B) Meets all applicable OSHA and HUD Requirements UL Classified 1, 2, and 3 hour through (Fire) penetration product, R–14141
UPC 077680269348
GTIN 00077680269348
Item Type MC-Plus® Neutral Per Phase Steel Armored Cable
Length 250
Length UOM Foot
Weight 0.2328 LB/FT
Inside Diameter 0.386 IN
Outside Diameter 0.586 IN
Temperature Rating 194
Trade Size 12-4
Voltage Rating 600V
