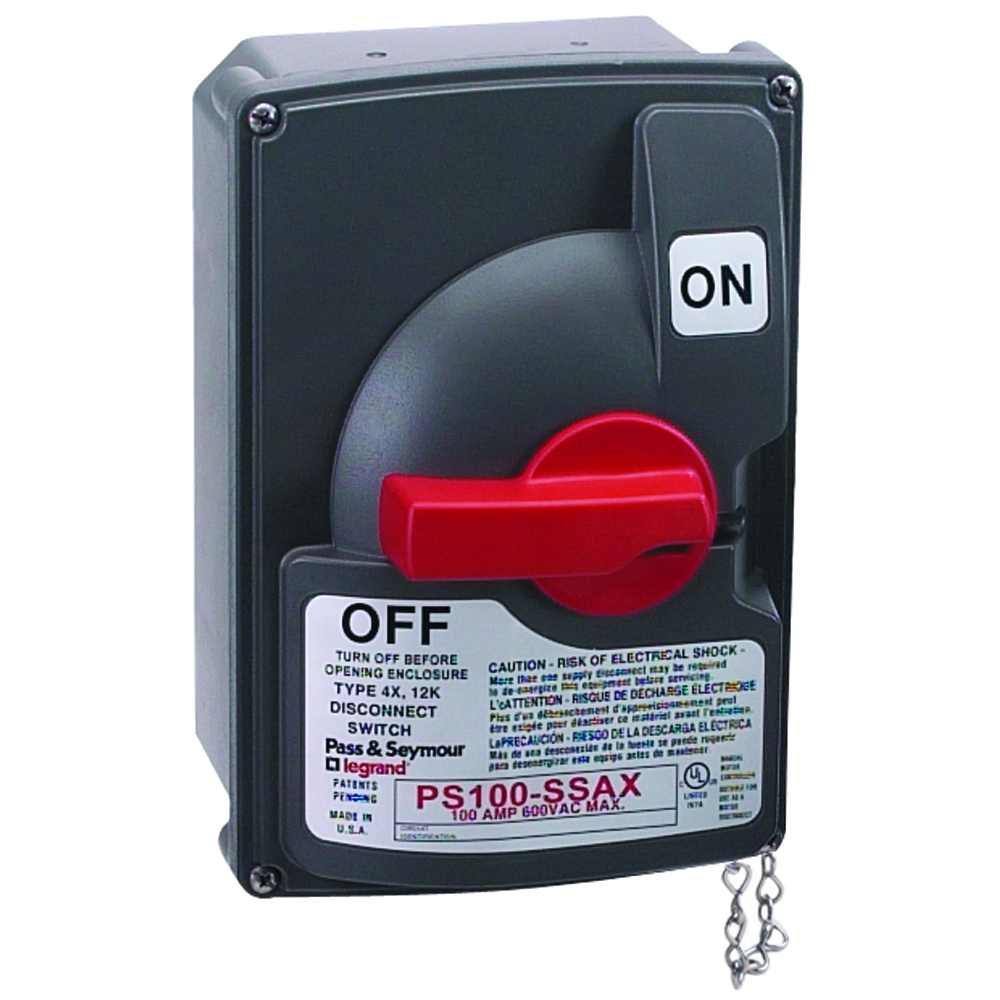

Non-Fusible Safety Switch with Auxiliary Contact, 100 Amps, 600 VAC. The first non-metallic NEMA 4X Non-Fusible Safety Switch line UL Listed as Suitable as Motor Disconnect per NEC Article 430.109(A)(6). Pass and Seymour Non-Fusible Safety Switches feature extra-tough components, including an impact-resistant Valox NEMA 4X enclosure. And an innovative design that delivers safe, sure operation under the worst conditions.

Catalog Number PS100SSAX
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin United States
Made in USA Yes
Action Motor Disconnect Switch
Actuator Switch Handle
Amperage Rating 100
Application Industrial
Connection Hard Wired
Contact Configuration 1 N.O. & 1 N.C.
Contact Rating 10A @ 600VAC
Enclosure NEMA Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt); IP67 Suitability
Frequency Rating 60 HZ
Insulation Complies with NEMA 4X
Material Valox 357®
Number of Poles 4
Operating Cycles Mechanical: 15,000 Cycles; Electrical: 10,000 Cycles
Special Features Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage. Nonconductive, watertight, corrosion-, heat-, and impact-resistant Valox® enclosure ensures NEMA 4X and 12 ratings and withstands the harshest industrial environments. Corrosion-resistant, stainless steel captive screws speeds installation, minimize risk of lost parts, and withstand abuse. Adjustable mounting feet can be moved to center of unit for instant strut- or pole-mounting without special brackets or harnesses. Durable, stainless steel cover-retaining chain makes installation and maintenance more convenient. Heavy-duty, ergonomic switch handle meets OSHA Lockout/Tagout requirements and provides plenty of grip for sure, easy operation. Black/red color coding and high-visibility ON/OFF markings clearly indicate status from a distance and at any visual angle. Switch entry into the enclosure is offset to the side and sealed to provide enhanced water resistance. Bottom and top wiring access options. No unnecessary openings to compromise water resistance. Top mount auxiliary contact enables additional control functions or signal lights.
Standard UL, CSA
UPC 785007150230
GTIN 00785007150230
Item Type Non-Fusible Safety Switch with Auxiliary Contact
Size 7.19 L x 6.31 W x 12.38 H
Environmental Conditions Moisture Resistance: Per UL50, Section 35, NEMA Enclosure Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt), and IP67 suitability: Flammability: UL94 5VA and VO Classification: UV Resistance: All enclosure materials are UV stable
Operating Temperature Maximum continuous: +60C; Minimum continuous: -50C without impact DEG
Voltage Rating 600
