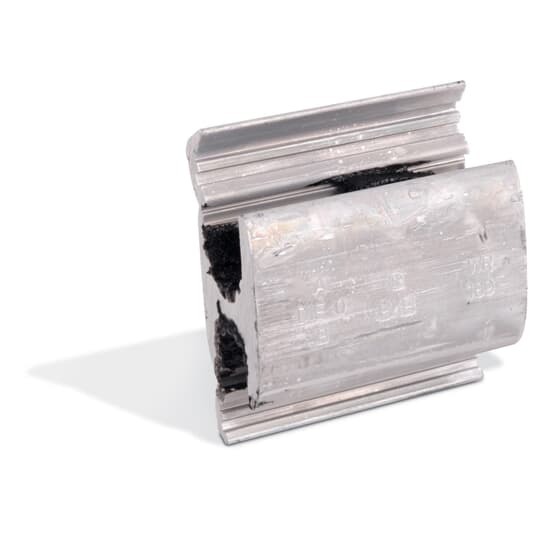

WR419 Blackburn Type H Wide Range Compression Tap Connector, H Shape, 4/0 to 3/0 AWG ACSR/Stranded Main/Run, 4/0 to 3/0 AWG ACSR, 4/0 to 3/0 AWG Stranded Tap, Aluminum
- MFR:
- ABB - Installation Products
- MFR #:
- WR419
- UPC:
- 783786100118
- Item #:
- 446723
WR419 Blackburn Type H Wide Range Compression Tap Connector, H Shape, 4/0 to 3/0 AWG ACSR/Stranded Main/Run, 4/0 to 3/0 AWG ACSR, 4/0 to 3/0 AWG Stranded Tap, Aluminum
- MFR #:
- WR419
- UPC:
- 783786100118
- Item #:
- 446723
Manuals & Documentation
| Catalog Number | WR419 |
| Manufacturer | ABB - Installation Products |
| Brand | BLACKBURN MECHANICAL |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors |
| Connection | Compression |
| Material | Aluminum |
| Number of Conductors | 2 |
| Special Features | Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area |
| Standard | RUS Accepted. Complies with ANSI C119.4 Specifications |
| UPC | 783786100118 |
| GTIN | 00783786100118 |
| Item Type | H-Type Compression Tap Connector |
| Size | Length 2-7/16 inch |
| Environmental Conditions | All Seasons / Conditions |
| Temperature Rating | up to 90 C |
| Wire Size | Main: 4/0 to 3/0 ACSR or 4/0 STR AWG , Tap: #2 to #6 ACSR or #1 to #6 STR or 1/0 to #6 SOL AWG |
| Cross Reference Products | ABBInstall 63150|ABBInstall DB4040|ABBInstall WR419|Burndy 7YHD400|Burndy YC28A28|Burndy YFD415|Burndy YHD400|Burndy YHD400- YHD7|Burndy YHD7|Burndy YPC28R28A |
