Eaton Bussmann Series

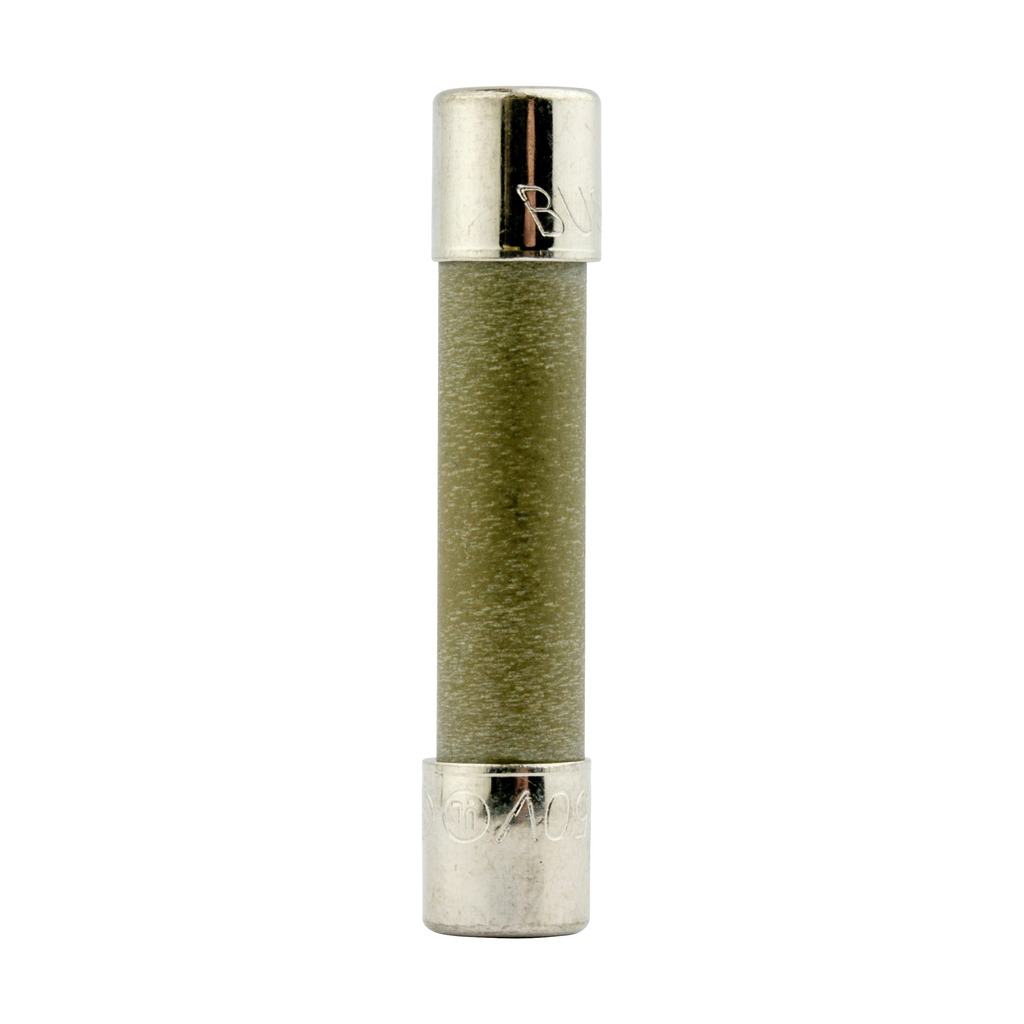

Eaton ABC series Fast-acting fuse 2A, 250 Vac, 125 Vdc, 32 Vac (self certified), ABC-2-R

MFR:
Eaton Bussmann
MFR #:
ABC-2-R
UPC:
051712646208
Item #:
445699

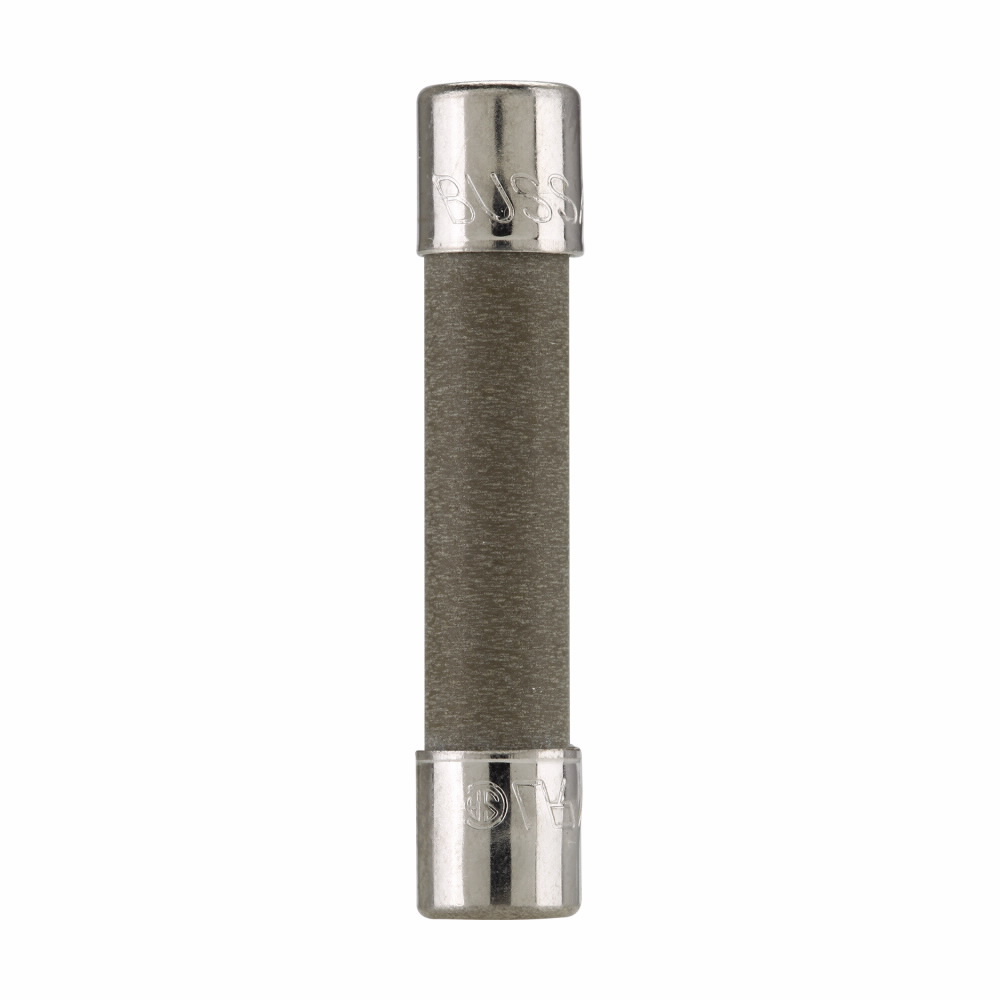

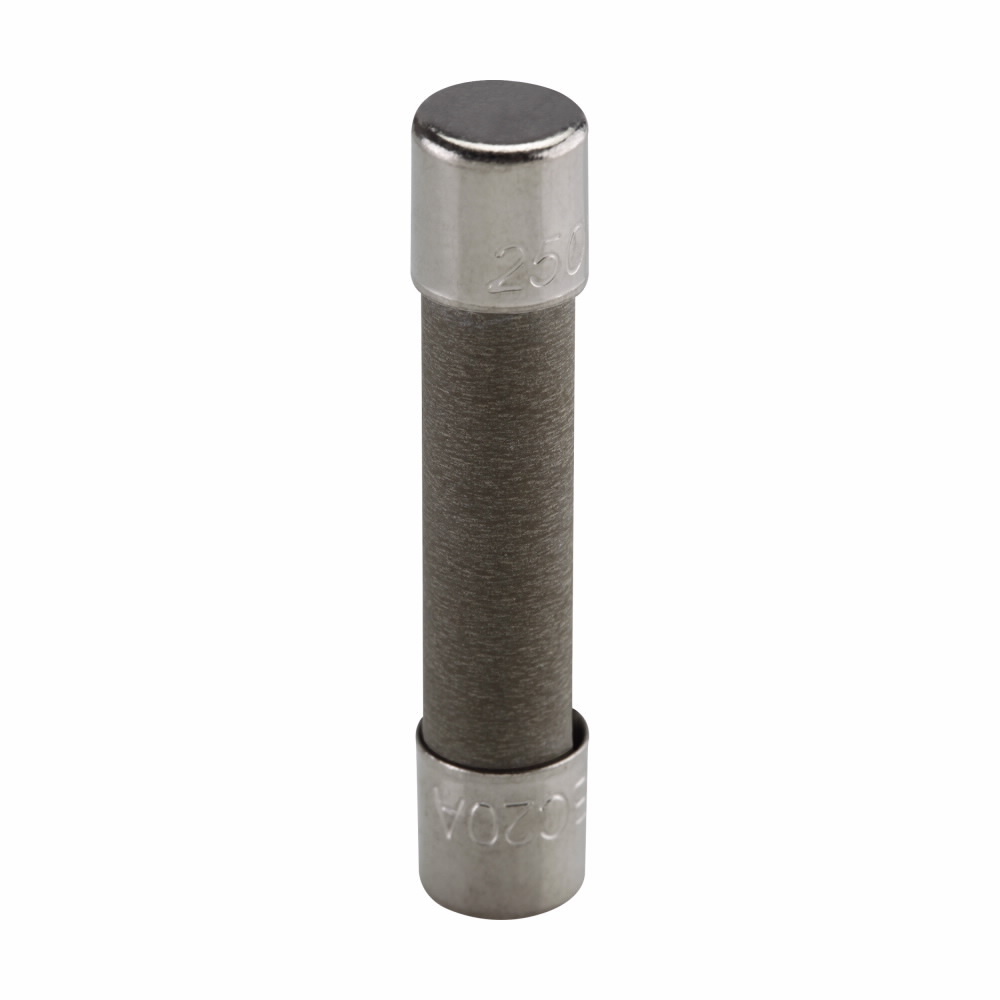

Fast-acting, ceramic tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's ABC fast-acting, ceramic body tube 1/4" x 1-1/4" fuses are designed with higher interrupting ratings and voltage ratings to UL 248-14 for overcurrent protection of electronic circuits. This is a RoHS compliant fuse. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.

Manuals & Documentation
Catalog Number ABC-2-R
Manufacturer Eaton Bussmann
Brand Eaton Bussmann Series
Country of Origin Multiple
Made in USA No
Amperage Rating 2
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Ferrule end x ferrule end
Interrupt Rating 100 AIC at 250 Vac|10 kAIC at 125 Vac/dc
Material Ceramic tube|Nickel-plated brass endcaps
Response Time 4 hr at 100%, 60 min at 135%, 120 sec at 200%
Special Features Interrupt Rating 100 Amp at 250 Vac, 10000 Amp at 125 Vac/Vdc, Material Ceramic Tube, Nickel Plated Brass Endcap, ROHS Compliant
Standard CE Marked,RoHS Compliant
UPC 051712646208
GTIN 00051712646208
Item Type Fast-acting fuse
Weight UOM Pounds
Size 1/4 In Diameter X 1-1/4 In Length
Voltage Rating 250 Vac, 125 Vdc, 32 Vac (self certified)
