9422CLA51 Flexible Single Cable Operated Circuit Breaker Disconnect Operating Mechanism, NEMA 1/3/3R/4/12 NEMA Rating, For Use With Class 9422 Handle Operator and Type LAL, LHL 400 A 2/3-Pole Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- 9422CLA51
- UPC:
- 785901316442
- Item #:
- 444049
9422CLA51 Flexible Single Cable Operated Circuit Breaker Disconnect Operating Mechanism, NEMA 1/3/3R/4/12 NEMA Rating, For Use With Class 9422 Handle Operator and Type LAL, LHL 400 A 2/3-Pole Circuit Breaker
- MFR #:
- 9422CLA51
- UPC:
- 785901316442
- Item #:
- 444049

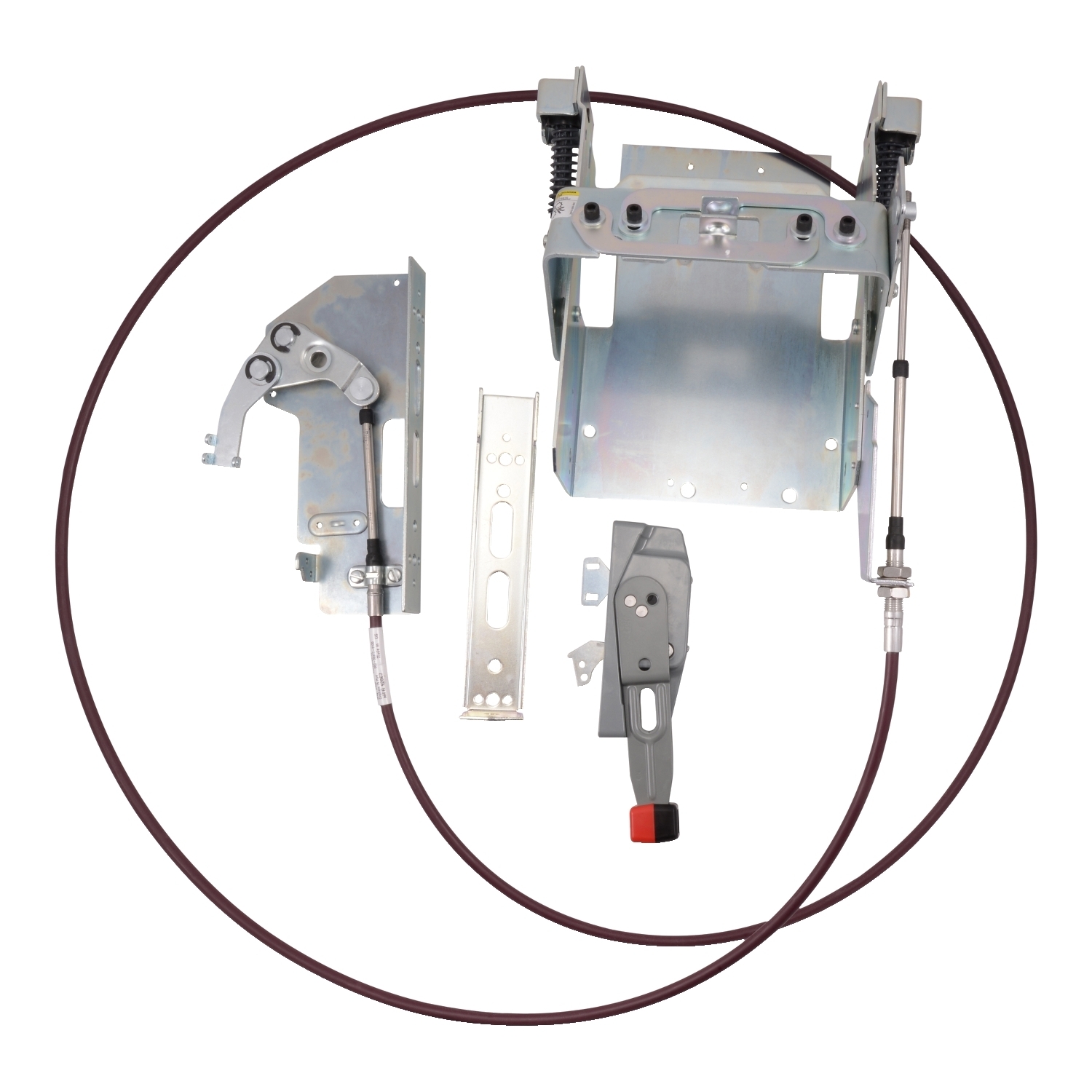

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with LAL, LHL and Q4L circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 400 A. This mechanism has a 36 inch long cable. 9422A1 operating handle is overpacked with this disconnect switch. The handle is NEMA 1, 3, 3R and 12 rated. Cable operated mechanism is UL Component Recognized and CSA certified
Manuals & Documentation
| Catalog Number | 9422CLA51 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565793&lang=en-us |
| UPC | 785901316442 |
| GTIN | 00785901316442 |
