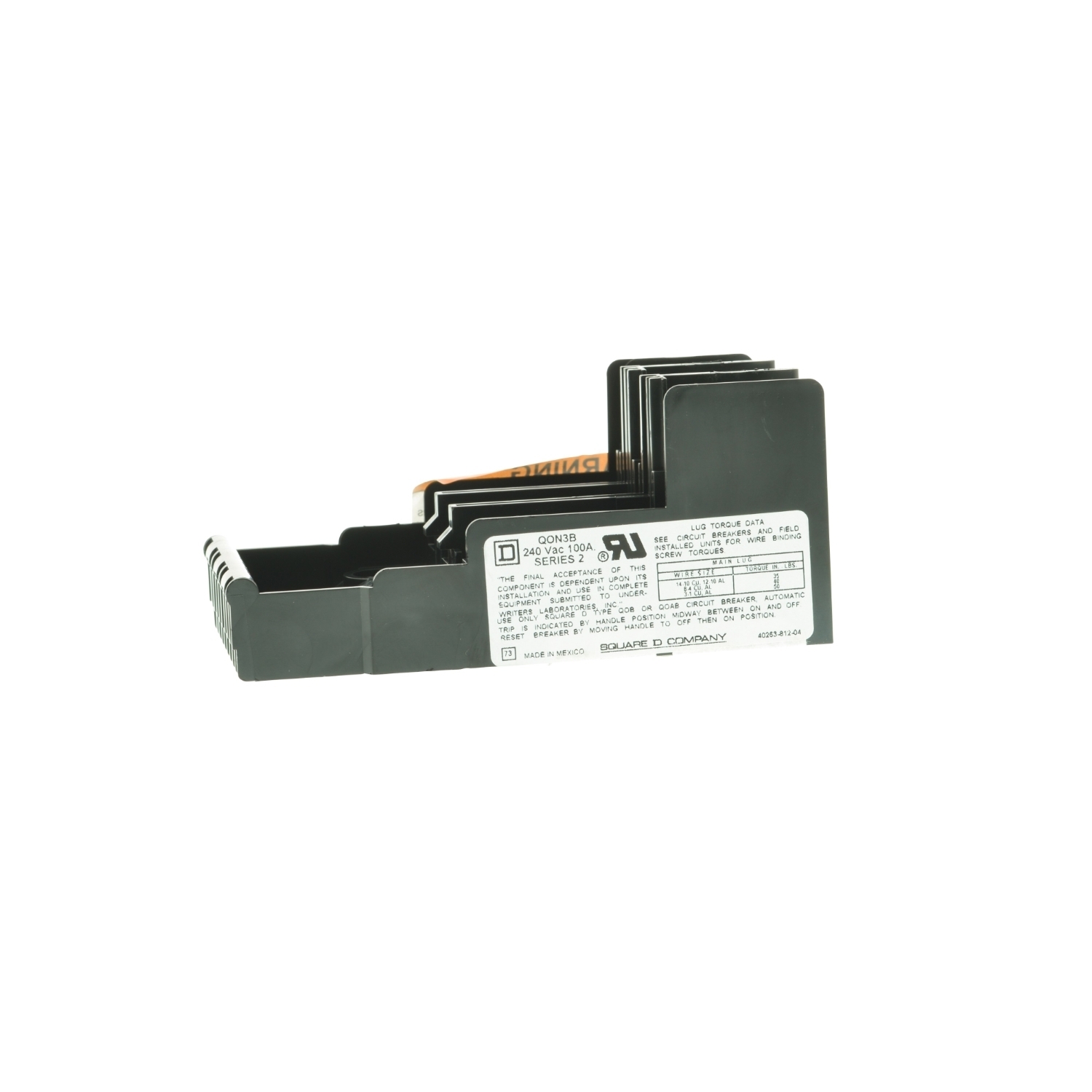

QON3B OEM Mounting Base, For Use With QO, QOB Series Circuit Breaker, 3-Phase, 3-Wire, 208Y/120/240 V AC, 100 A, 10 kA Interrupt Rating, 12 to 1 AWG Al/Cu Wire, Tin Plated Copper Busbar, Copper
- MFR:
- Schneider Electric
- MFR #:
- QON3B
- UPC:
- 785901440222
- Item #:
- 444006
QON3B OEM Mounting Base, For Use With QO, QOB Series Circuit Breaker, 3-Phase, 3-Wire, 208Y/120/240 V AC, 100 A, 10 kA Interrupt Rating, 12 to 1 AWG Al/Cu Wire, Tin Plated Copper Busbar, Copper
- MFR #:
- QON3B
- UPC:
- 785901440222
- Item #:
- 444006

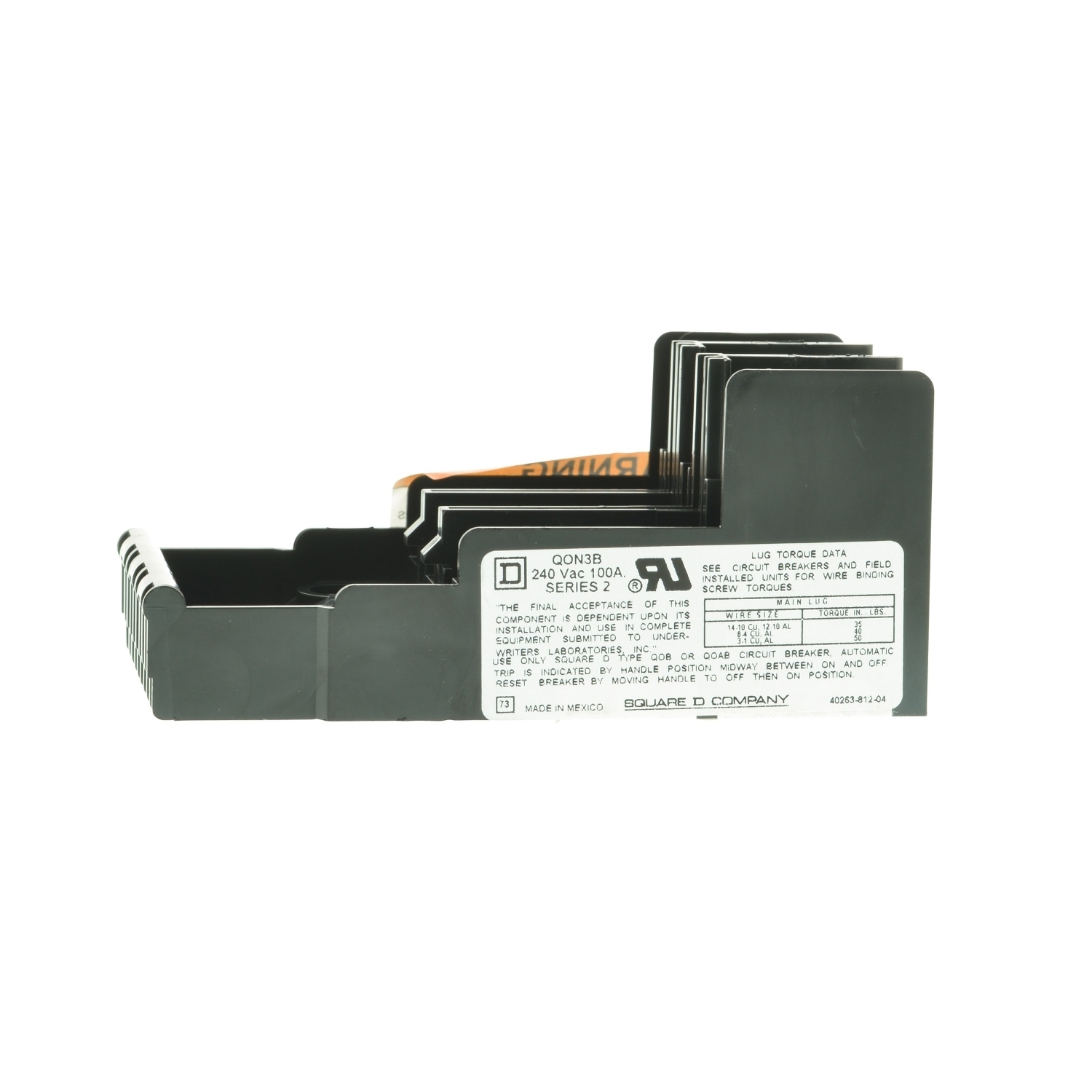

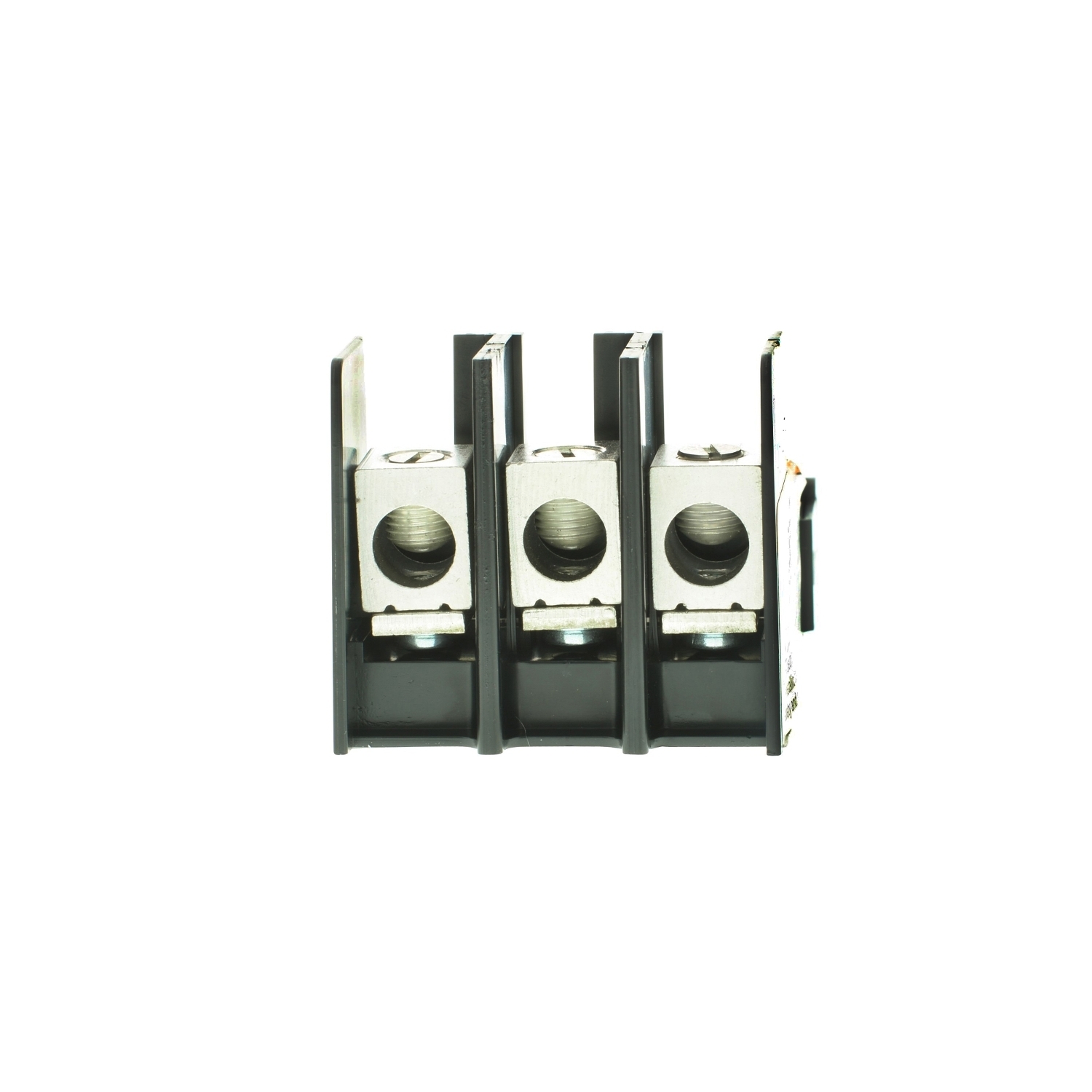

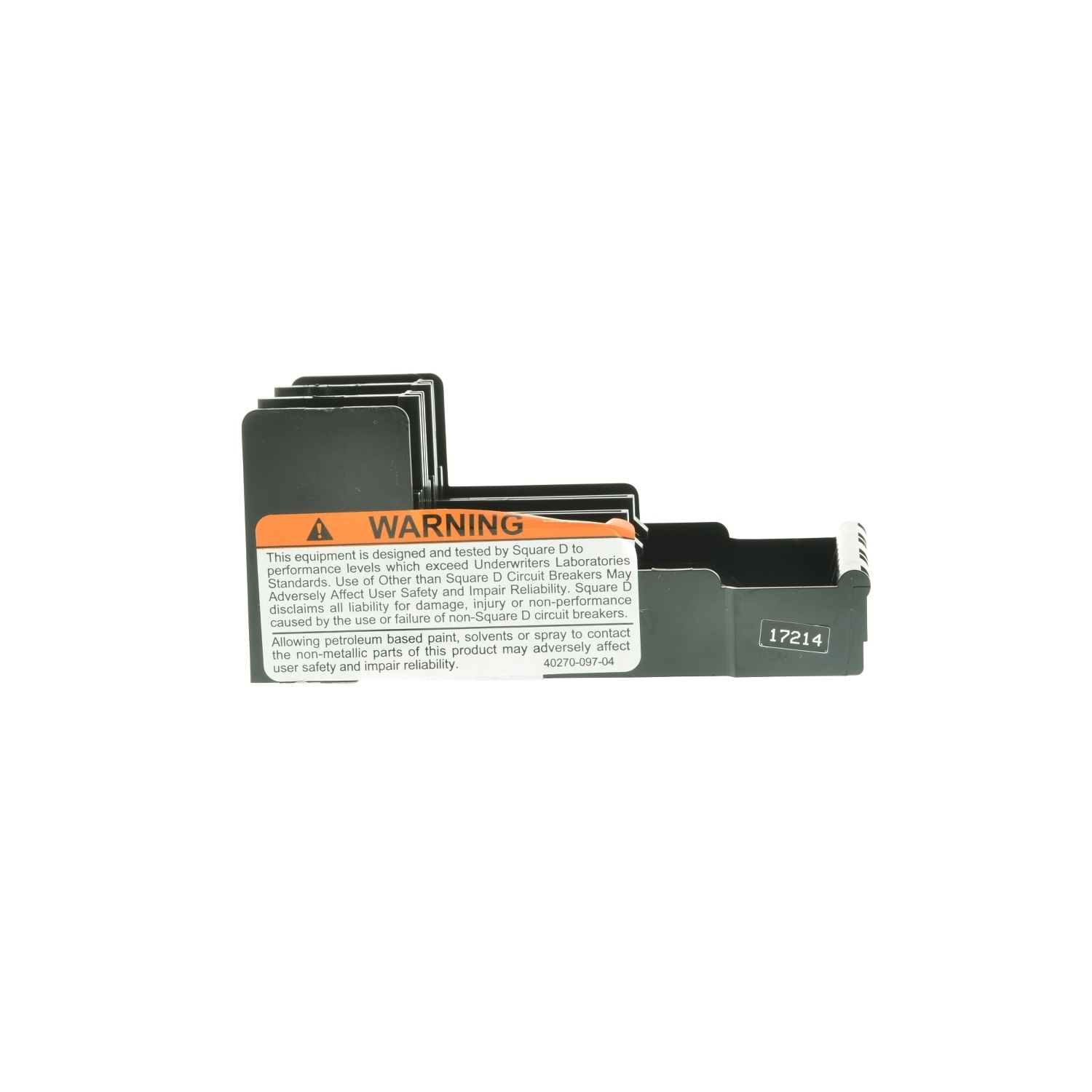

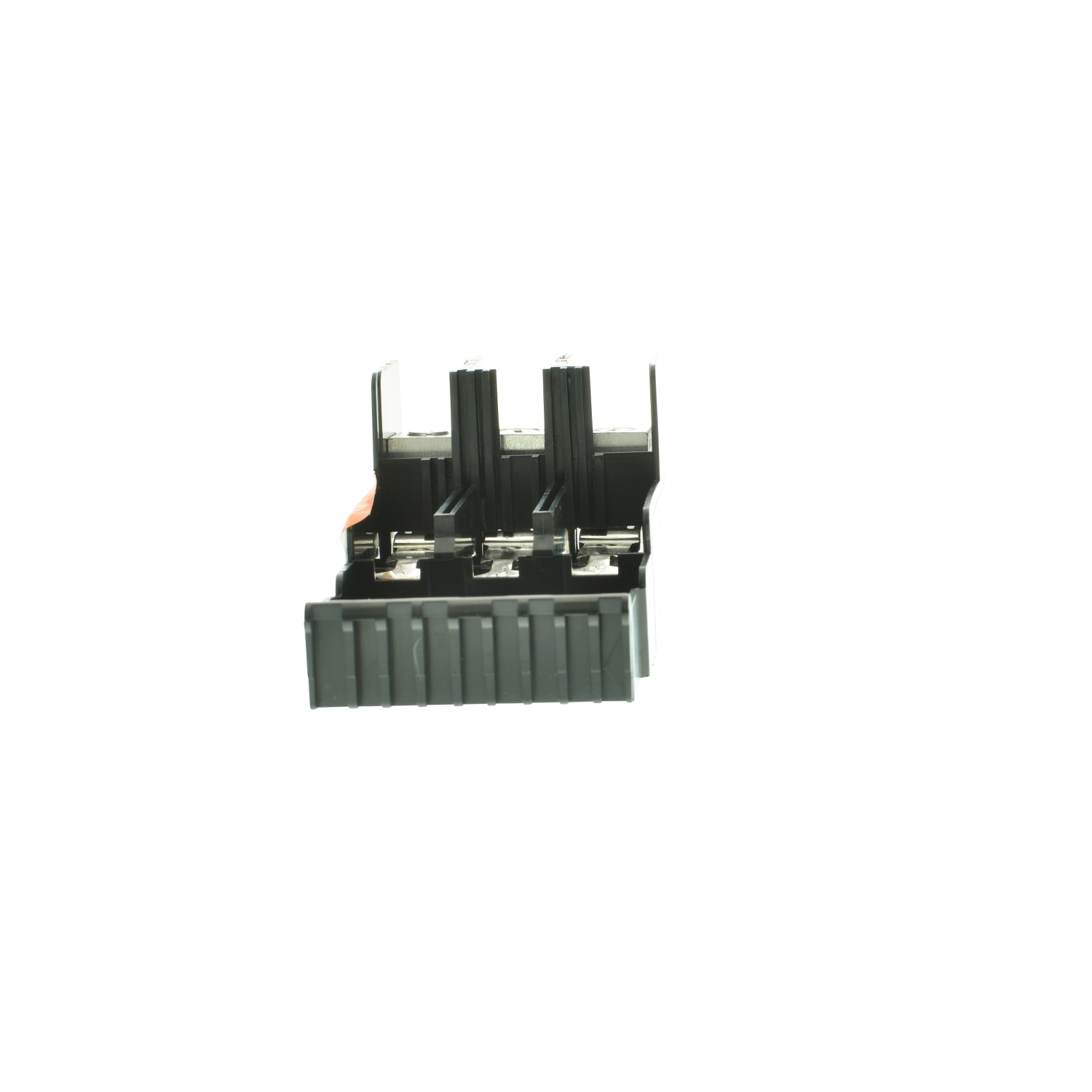

QON OEM mounting bases are for the mounting of plug on QO, QO GFI, QO AFI and QO EPD circuit breakers. These OEM mounting bases are available in single and three phase versions. This QON OEM bolt on mounting base is for a main breaker of 100 A at 240 VAC three phase. This unit provides 10 kA breaking capacity based on the circuit breakers installed. This mounting base has 3 spaces for 1 pole breakers. A neutral assembly is not supplied with this OEM mounting base. The QON mounting base is UL component recognized.
Manuals & Documentation
| Catalog Number | QON3B |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Phase | 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=361449&lang=en-us |
| UPC | 785901440222 |
| GTIN | 00785901440222 |
| Width | 4.2 |
| Width UOM | Inch |
| Height | 1.35 |
| Height UOM | Inch |
