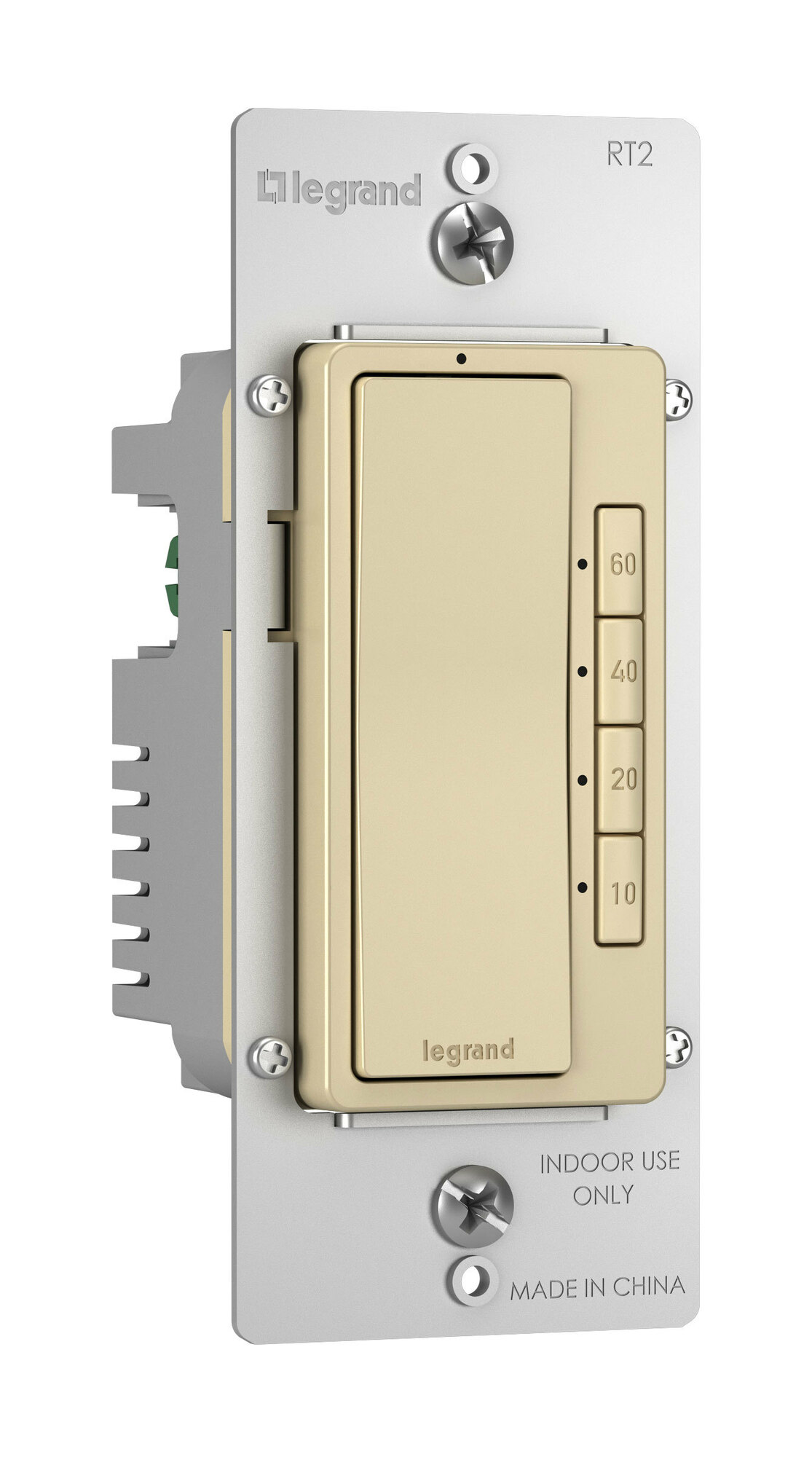

Installs easily in place of a standard light or fan switch, or older spring-wound timer and includes manual on/off through the paddle switch for added convenience. A locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark. Made exclusively for use with screwless Wall Plates from the radiant Registered Collection, sold separately.

Catalog Number RT2I
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Warranty Description 5-Year
Country of Origin China
Made in USA No
Action Single Pole
Amperage Rating 15
Application Residential/Commercial
Coil Voltage 120VAC @ 60Hz
Connection Back & Side Wired
Contact Rating 600Watts
Mounting Box
Number of Gangs 1
Number of Poles 1
Special Features The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. This timer controls most types of lighting and features 4-button preset countdown delays in 60-, 40-, 20- and 10-minute intervals with visual indication, turning loads off when no longer needed."
Standard cULus
UPC 785007034400
GTIN 00785007034400
Item Type 4-Button Timer
Size 1.88" Depth x 1.69" Width x 3.281" Height
Operating Temperature Between 0 Degrees C and 40 Degrees C
Timing Range 10-60 minutes
Voltage Rating 120
Wattage 600
