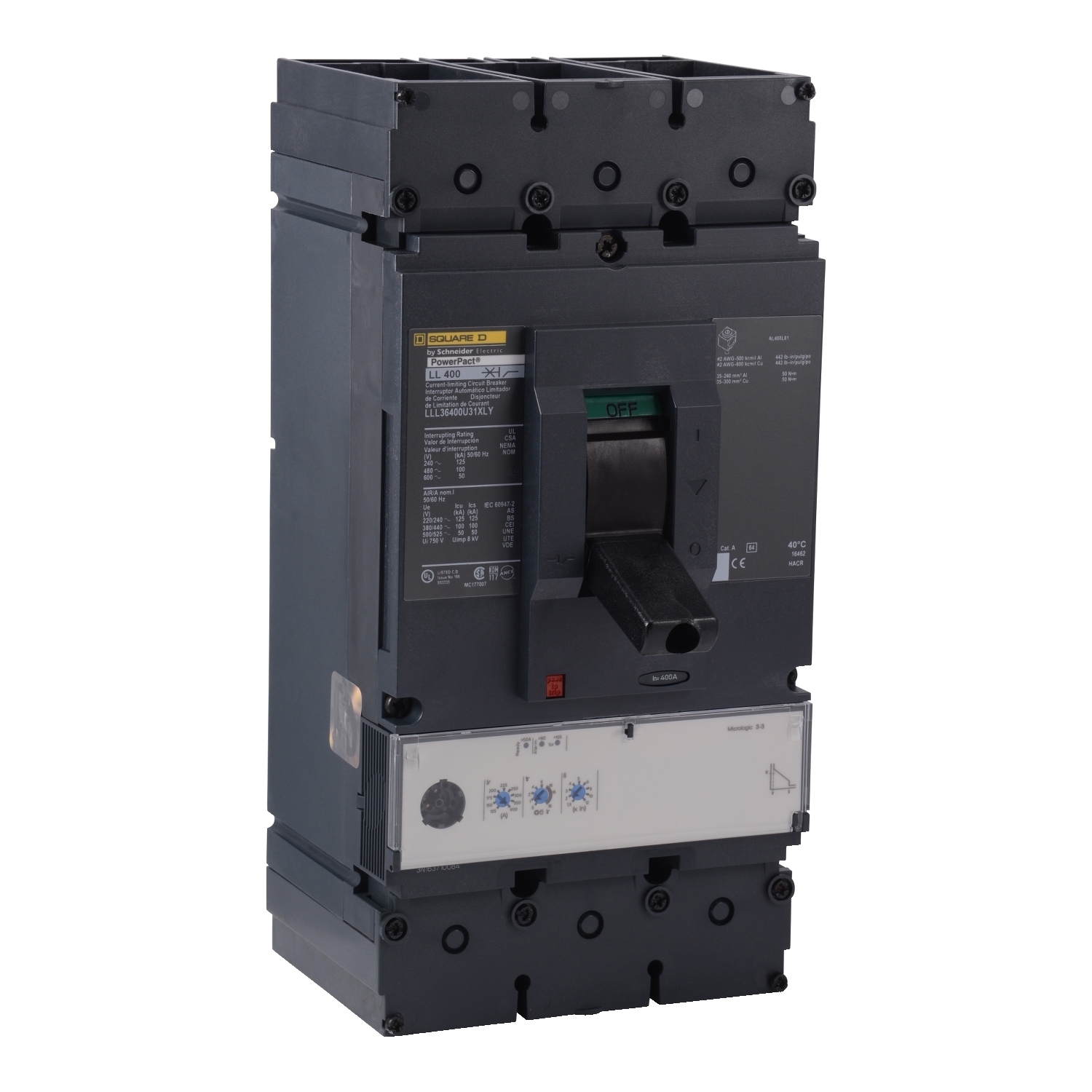

LLL36400U31X PowerPact Standard L Molded Case Circuit Breaker, 600 V AC, 400 A, 125 kA at 240 V AC/100 kA at 480 V AC/50 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip
- MFR:
- Schneider Electric
- MFR #:
- LLL36400U31X
- UPC:
- 785901710806
- Item #:
- 443459
LLL36400U31X PowerPact Standard L Molded Case Circuit Breaker, 600 V AC, 400 A, 125 kA at 240 V AC/100 kA at 480 V AC/50 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip
- MFR #:
- LLL36400U31X
- UPC:
- 785901710806
- Item #:
- 443459
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | LLL36400U31X |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Black |
| Connection | Lugs, line;lugs, load; 2 x AWG 2/0...500 kcmil aluminium/copper |
| Control | Toggle |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980766&lang=en-us |
| UPC | 785901710806 |
| GTIN | 00785901710806 |
