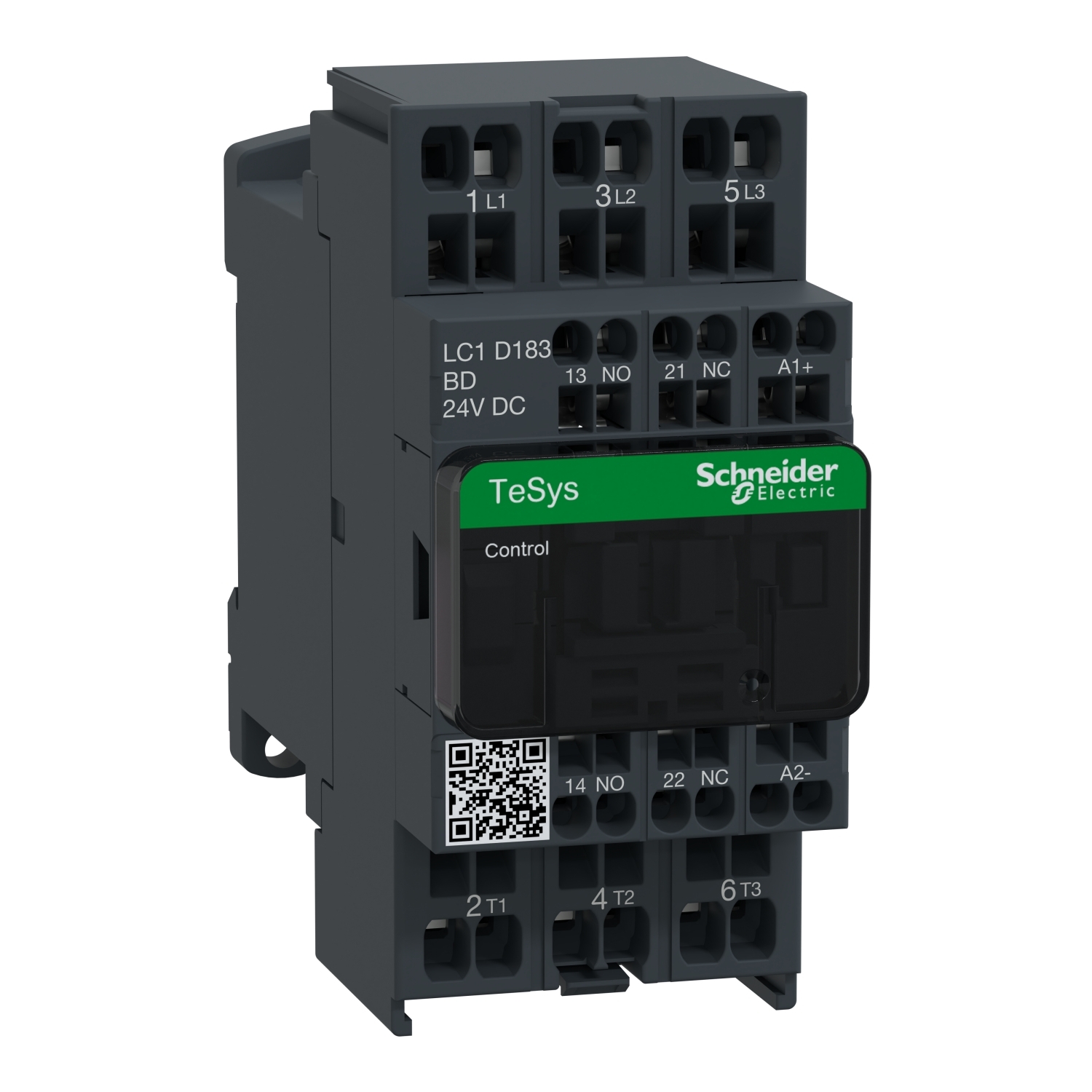

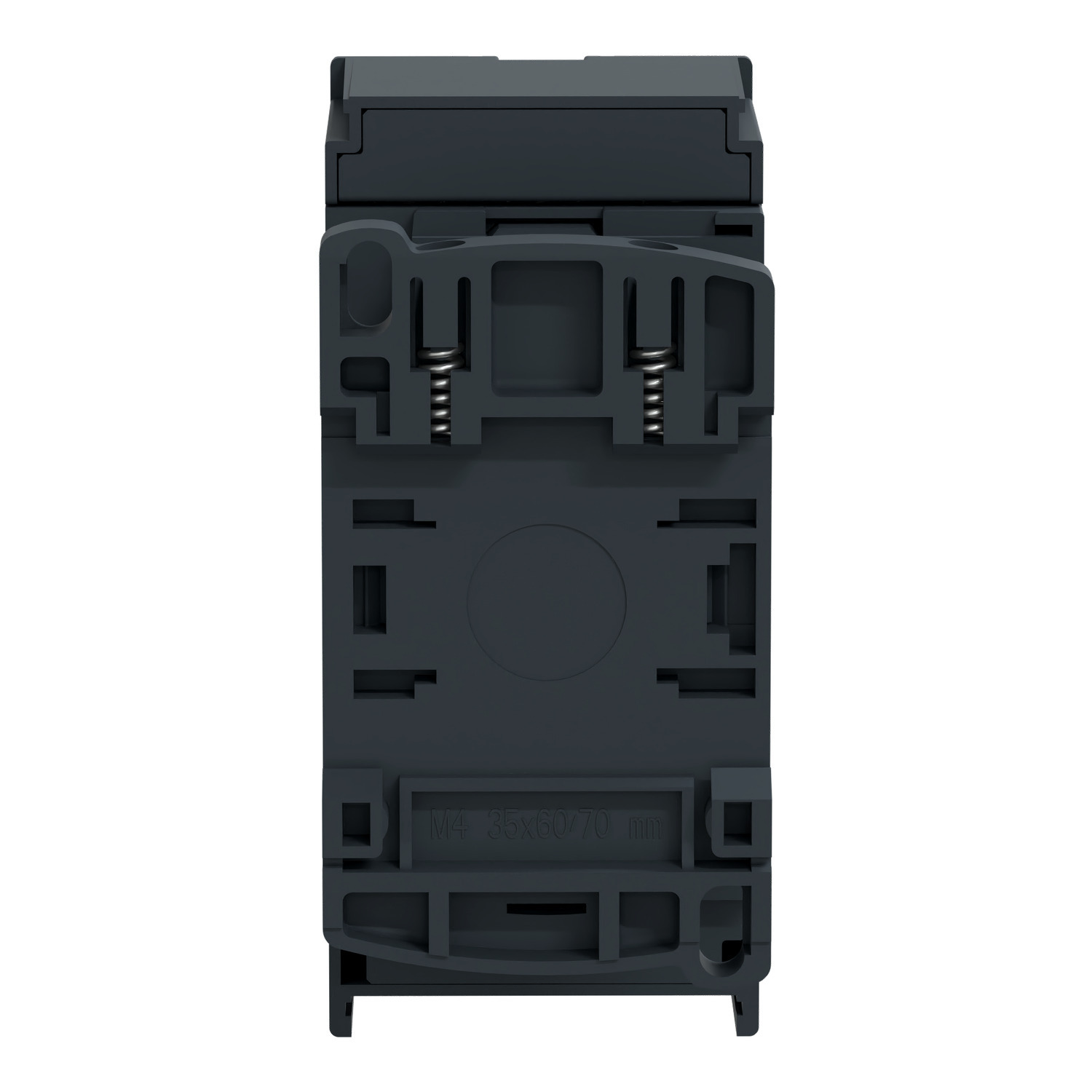

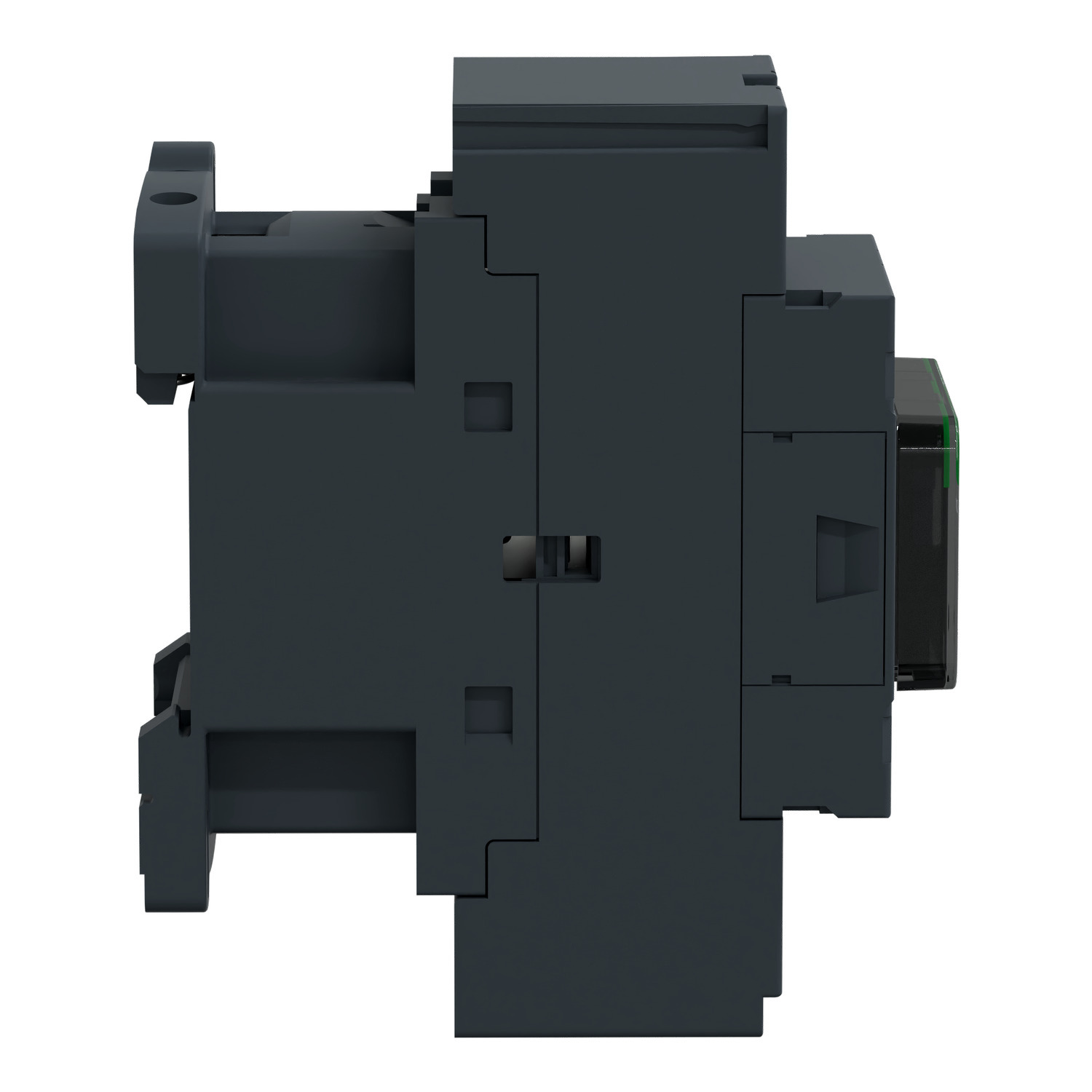

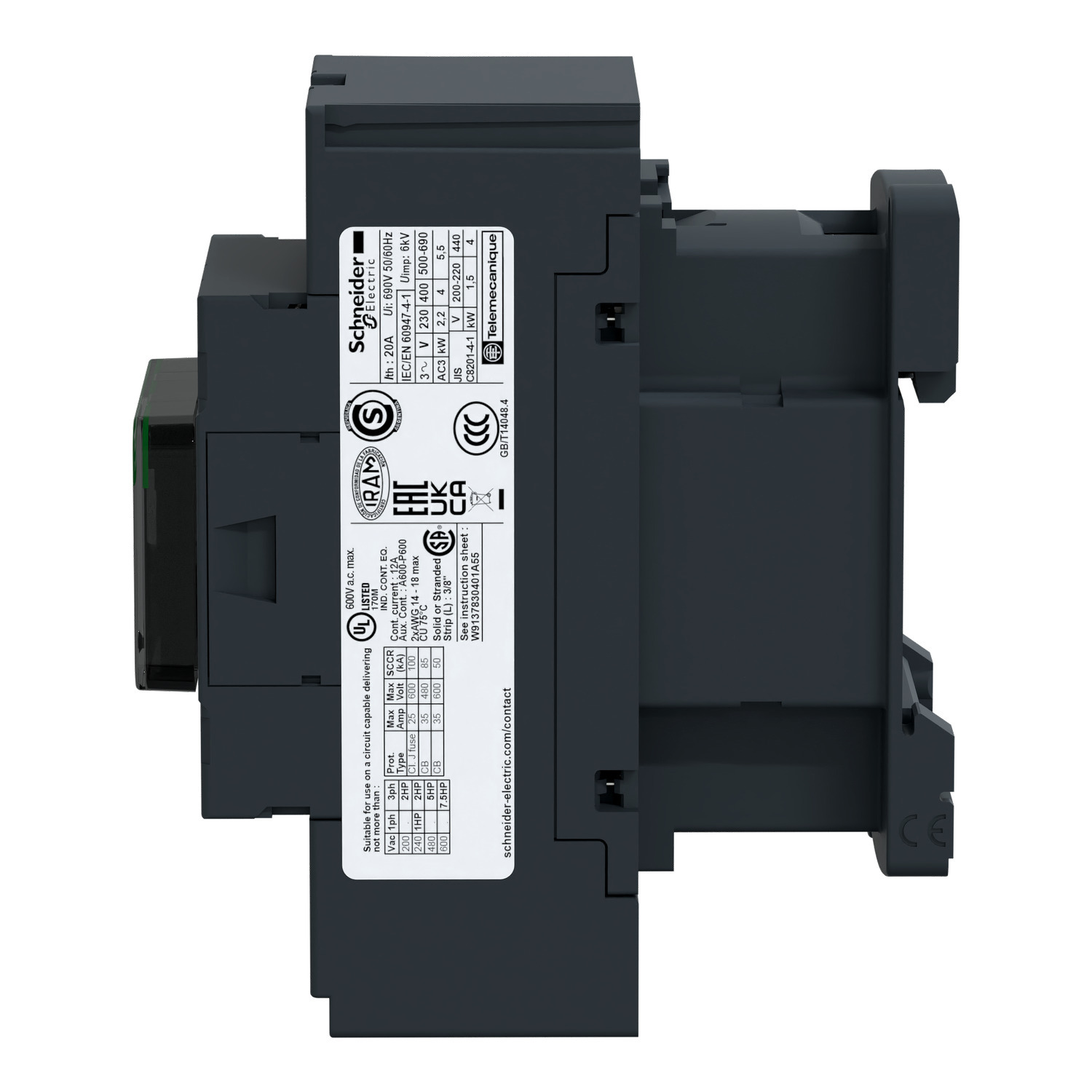

LC1D183BD TeSys D LC1D Non-Reversing IEC Contactor With Safety Cover, 24 V DC V Coil, 18/32 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D183BD
- Item #:
- 443138
LC1D183BD TeSys D LC1D Non-Reversing IEC Contactor With Safety Cover, 24 V DC V Coil, 18/32 A, 3NO Contact, 3 Poles
- MFR #:
- LC1D183BD
- Item #:
- 443138
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 5HP at 200 to 208VAC, 5HP at 240VAC, 10HP at 480VAC and 15HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Spring terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.90 inches tall, 1.77 inches wide and 3.98 inches deep. It weighs 1.08 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals & Documentation
| Catalog Number | LC1D183BD |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | Resistive load;motor control |
| Coil Voltage | 24 V DC |
| Connection | Control circuit: spring terminals 1 2.5-2.5 mm² - cable stiffness: flexible without cable end;control circuit: spring terminals 2 2.5-2.5 mm² - cable stiffness: flexible without cable end;power circuit: spring terminals 1 4-4 mm² - cable stiffness: flexible without cable end;power circuit: spring terminals 2 4-4 mm² - cable stiffness: flexible without cable end |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | With integral suppression device |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=614152&lang=en-us |
| GTIN | 03389110806953 |
| Item Type | Contactor |
