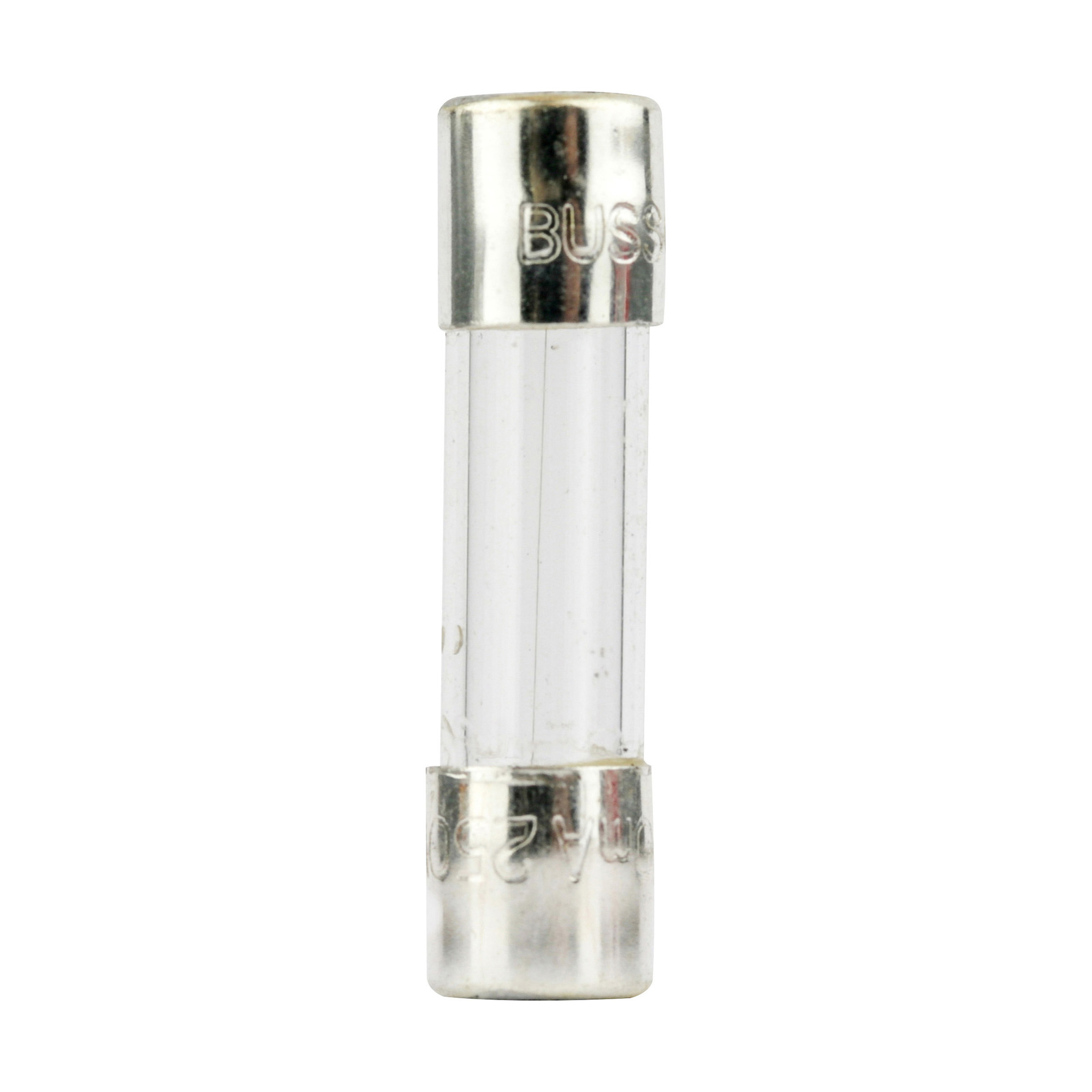

GMA-600-R Low Breaking Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 600 mA, 250 V AC, 35 A, 10 kA Interrupt, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- GMA-600-R
- UPC:
- 051712648028
- Item #:
- 441911
GMA-600-R Low Breaking Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 600 mA, 250 V AC, 35 A, 10 kA Interrupt, Cylindrical Body
- MFR #:
- GMA-600-R
- UPC:
- 051712648028
- Item #:
- 441911
| Catalog Number | GMA-600-R |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 600 |
| Application | Electronic Circuits |
| Connection | Ferrule End X Ferrule End |
| Indicator | Non Indicating |
| Material | Brass |
| Response Time | 2 Min Maximum At 200% |
| Special Features | Low Breaking Capacity, Interrupt Rating 35 Amp at 250 Vac, 10 kA at 125 Vac, Material Glass Tube, Brass Plated Brass Endcap, ROHS Compliant |
| Standard | UL 248-14, CSA, CE |
| UPC | 051712648028 |
| GTIN | 00051712648028 |
| Item Type | Electronic, Fast Acting |
| Length | 0.75 |
| Length UOM | Inch |
| Width | 0.25 |
| Width UOM | Inch |
| Height | 0.25 |
| Height UOM | Inch |
| Weight | 0.002 |
| Weight UOM | Pounds |
| Size | 5.20 mm Diameter X 20.00 mm Height |
| Voltage Rating | 32 V |
