Ideal

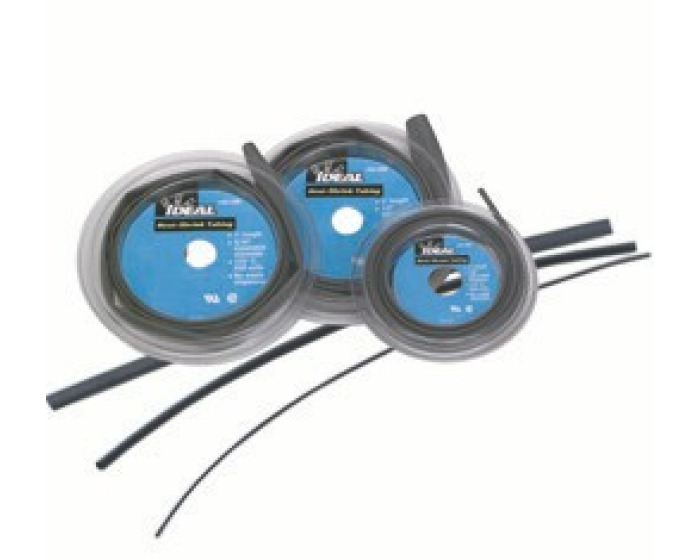

46-313 Thermo-Shrink Flexible Heat Shrink Tubing, 0.205 in ID Expanded, 0.094 in ID Recovered, 0.02 in THK Wall Recovered, 6 in L, Polyolefin, Black

MFR:
Ideal Industries
MFR #:
46-313
UPC:
783250463138
Item #:
44138

Polyolefin material electrically insulates and protects in-line components, disconnect terminals and splices with its high strength and excellent resilienceUse to bundle wires for very flexible light-duty harnessesHighly flame-retardant and flexible; resistant to common fluids and solventsMeets UL 486D 125C VW-1 600V; Material: No PBBs, PBBEs, conforms to ROHS2:1 shrink ratio; Minimum shrink temperature: 70C; Operating temperature: -55C to +125CRoHS compliantUV resistant

Catalog Number 46-313
Manufacturer Ideal Industries
Brand Ideal
Country of Origin United States
Made in USA Yes
Special Features Features: Polyolefin Material Electrically Insulates And Protects In-Line Components, Disconnect Terminals And Splices With Its High Strength And Excellent Resilience; Use To Bundle Wires For Very Flexible Light-Duty Harnesses; Highly Flame-Retardant And Flexible; Resistant To Common Fluids And Solvents; Meets UL 486D 125 Degrees C VW-1 600V; Material: No PBBs, PBBEs, Conforms To ROHS; Cable Range: 20 - 14 AWG; Nominal Recoveredi.d. (max.): 094 IN; Expanded I.d. (min.): 0.205; Elongation At Break: 600 PCT For ASTM D 638 Test Method; Elongation Of Break After Aging: 350 PCT For UL 224 Test Method; Cold Bend Test (-55 Degrees c/4 Hours): No Cracking For UL 224 Test Method; Copper Corrosion: Pass For UL 224 Test Method; Chemical Resistance: Pass For UL 224 Test Method; Longitudinal Shrinkage: 0 Plus Or Minus 5 PCT For UL 224 Test Method; Eccentricity: 30 PCT For UL 224 Test Method; Normal Size: 3/16 IN; Package: Bag
Standard C/US RU Listed,RoHS
RoHS URL https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
UPC 783250463138
GTIN 00783250463138
Item Type Thin-Wall
Length 6
Length UOM Inch
Outside Diameter 0.187 IN
Thickness 020 IN
