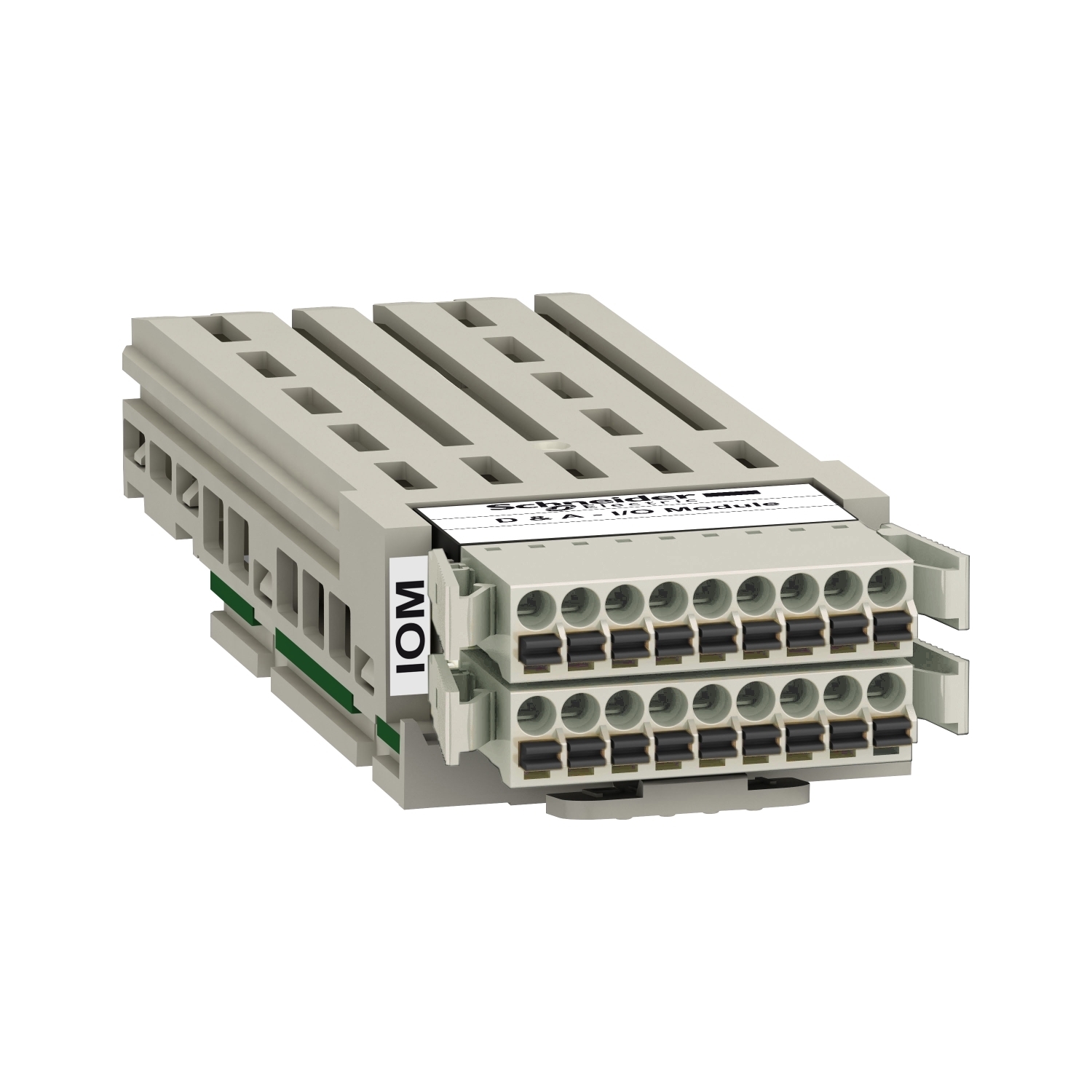

VW3A3203 Extended Input/Output Module, 24 V DC, 10 V DC, 0 to 20 mA, 4 to 20 mA, 2.5 mA Analog/Discrete Input, 24 VDC/100 mA Discrete Output
- MFR:
- Schneider Electric
- MFR #:
- VW3A3203
- Item #:
- 441237
VW3A3203 Extended Input/Output Module, 24 V DC, 10 V DC, 0 to 20 mA, 4 to 20 mA, 2.5 mA Analog/Discrete Input, 24 VDC/100 mA Discrete Output
- MFR #:
- VW3A3203
- Item #:
- 441237
This I/O expansion module enables your drive to meet the needs of application that manage additional or specific sensors. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600, Altivar Process ATV900 and Altivar Machine ATV340. It is also compatible with Altivar Easy 610. It has one removable spring terminal block 1.5 mm / AWG 16.
Manuals & Documentation
| Catalog Number | VW3A3203 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | Altivar Process ATV600;Altivar Machine ATV340;Altivar Process ATV900;Easy Altivar 610 |
| Input Voltage | 24 V DC <= 30 V)programmable |
| Output Voltage | 24 V DC <= 30 V) assignable logic |
| Special Features | 2 analog input configurable voltage, current or probe;6 discrete input;2 discrete output;Removable spring terminal block, 1.5 mm² / AWG 16;Reverse polarity protection digital input;short-circuit protection output |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432941354&lang=en-us |
| GTIN | 03606480702525 |
| Item Type | Additional I/O module |
