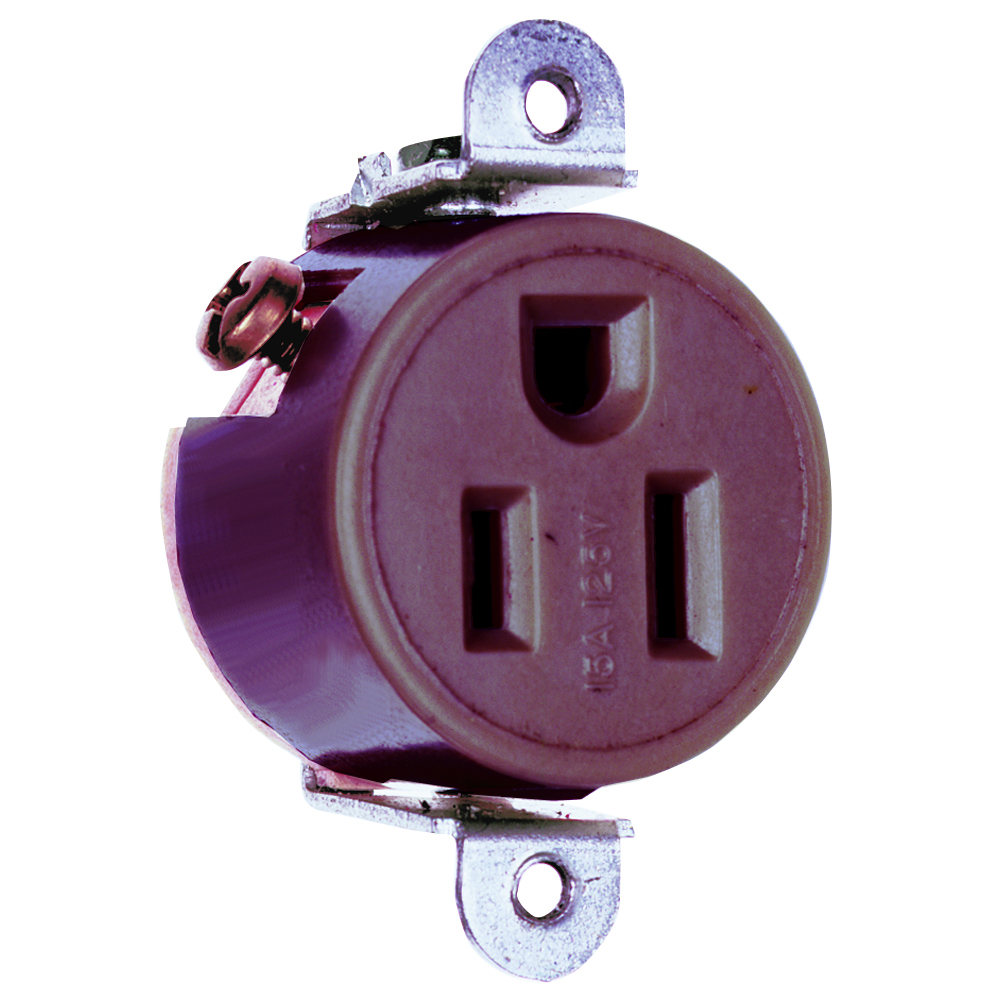

Short Strap Spec Grade Single Receptacle, Side Wire, 15A 125V

Catalog Number 5258
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin Mexico
Made in USA No
Amperage Rating 15
Application Commercial
Color Brown
Connection Back and side wire
Material Nylon
Mounting Wall
NEMA Rating 5
Number of Poles 2
Number of Wires 3
Special Features Short Strap: 1.750" screw spacing. Auto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Side wire capability. One-piece brass triple-wire power contacts for lasting retention.
Standard UL498, CSA C22.2 No. 42
UPC 785007525809
GTIN 00785007525809
Item Type Spec Grade Single Receptacle, Short Strap
Size 1.32 L x 1.00 W x 1.75 H
Environmental Conditions Flammability: UL94 V2
Temperature Rating -40° - 60° C
Voltage Rating 125
Wire Size 14 - 10 AWG
