ISFCH5C04ATL-XG IndustrialNet Type SF/UTP Copper Cable, Reel Packaging, 80 V AC, (4) 24 AWG Stranded Copper Conductor, 1000 ft L
- MFR:
- Panduit
- MFR #:
- ISFCH5C04ATL-XG
- UPC:
- 074983838233
- Item #:
- 440189
ISFCH5C04ATL-XG IndustrialNet Type SF/UTP Copper Cable, Reel Packaging, 80 V AC, (4) 24 AWG Stranded Copper Conductor, 1000 ft L
- MFR #:
- ISFCH5C04ATL-XG
- UPC:
- 074983838233
- Item #:
- 440189

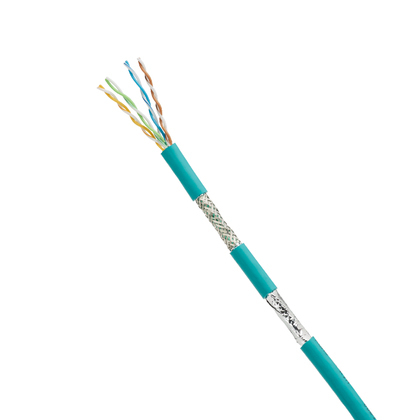

The Cat 5e SF/UTP copper cable is constructed of 24/7 AWG stranded copper conductors with a HDPE insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.
Manuals & Documentation
| Catalog Number | ISFCH5C04ATL-XG |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | Teal |
| Conductor Material | Copper |
| Construction | SF/UTP |
| Insulation Material | High-Density Polyethylene |
| Jacket Material | Polyurethane |
| Number of Conductors | 4 |
| Resistance | Abrasion-Resistant |
| Standard | Meets or exceeds the requirements IEC 61156-6 Category 5e, ANSI/TIA-568-C.2 Category 5e and ODVA Ethernet/IP^ and CC-Link standards; Standard compliances: UL AWM Style 2463 (80 Degrees C 600 V) Flex Life Test: 1 million cycles at 10 x cable diameter; 10 million c |
| UPC | 074983838233 |
| GTIN | 00074983838233 |
| Item Type | Copper Cable |
| Length | 1000 |
| Length UOM | Foot |
| Weight | 28.7 LBS |
| Outside Diameter | 0.285 IN |
| Temperature Rating | 176 °F |
| Voltage Rating | 80 |
