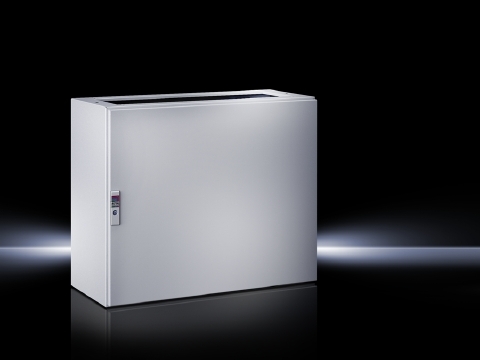

6705500 TP Series Pedestal Enclosure, 31 in W x 20 in D x 27 in H, NEMA 12/3R/IP55, Carbon Steel
- MFR:
- Rittal
- MFR #:
- 6705500
- UPC:
- 639889844469
- Item #:
- 439894
6705500 TP Series Pedestal Enclosure, 31 in W x 20 in D x 27 in H, NEMA 12/3R/IP55, Carbon Steel
- MFR #:
- 6705500
- UPC:
- 639889844469
- Item #:
- 439894
Pedestals, material: Enclosure: Sheet steel 1.5 mm, Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal, surface: dipcoat-primed, powder-coated on the outside, textured paint, Mounting plate: Zinc-plated, color: RAL 7035, description: Four widths and two different depths are the basis for every TopConsole solution., produkt group: Console systems for ergonomic functionality at the human/machine interface.
Features
- Size: 31.500 Inch Width x 19.700 Inch Depth x 26.600 Inch Height
- Right hand hinge
- Open base for individual cable entry options
| Catalog Number | 6705500 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Color | RAL 7035 |
| Consist of | Housing Open at Top, Depth-Adjustable Mounting Plate (with Depth 500 MM), Open Base for Individual Cable Entry |
| Material | Carbon Steel |
| Special Features | Features: One Door |
| Standard | UL Listed, UL 508A, cULus Listed, cUL |
| RoHS Indicator | Yes |
| UPC | 639889844469 |
| GTIN | 00639889844469 |
| Item Type | Pedestal |
| Length | 22.0470 |
| Length UOM | Inch |
| Width | 31.8900 |
| Width UOM | Inch |
| Height | 24.0160 |
| Height UOM | Inch |
| Weight | 110.229 |
| Weight UOM | Pounds |
| Size | 27 (H) x 31 (W) x 20 (D) |
