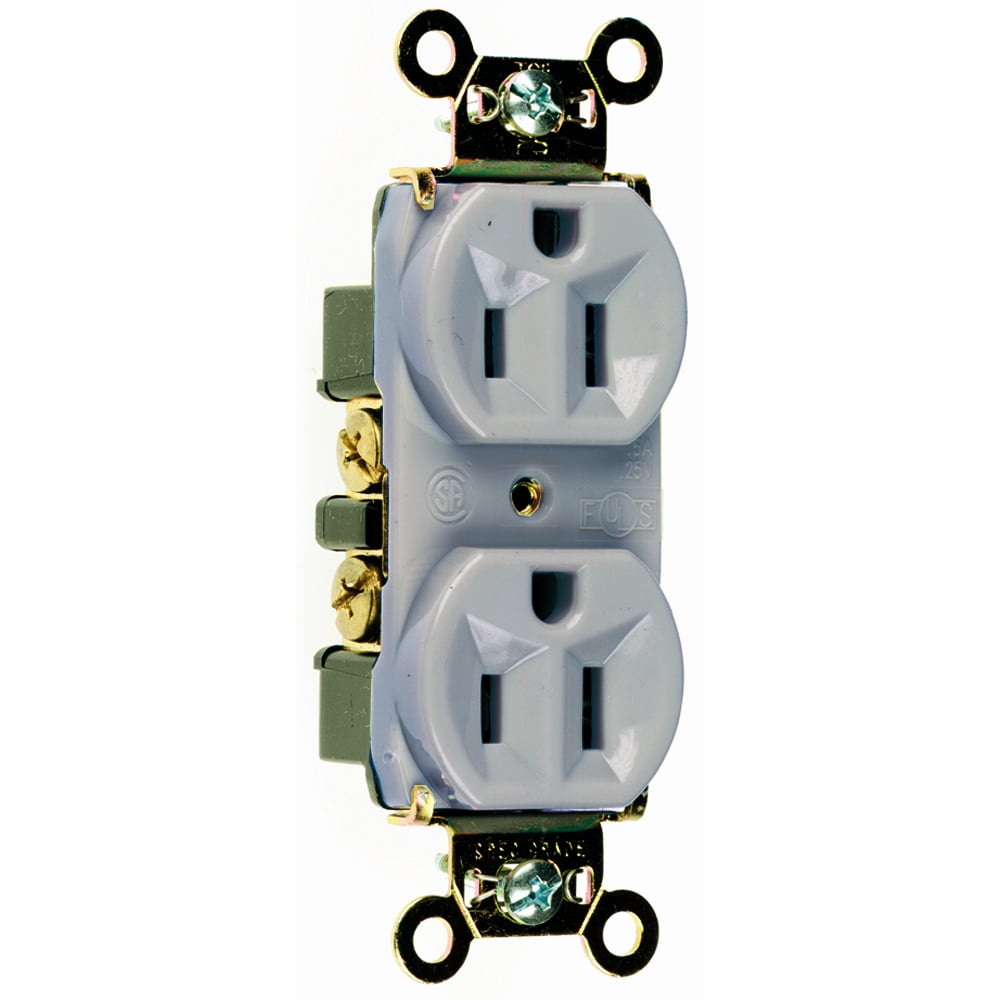

Hard Use Spec Grade Duplex Receptacle Back and Side Wire 15A 125V

Catalog Number 5262GRY
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Warranty Description 1-Year Limited Warranty
Country of Origin Mexico
Made in USA No
Amperage Rating 15
Application Commercial
Color Gray
Connection Back and side wire
Material Nylon
Mounting Wall
NEMA Rating 5
Number of Poles 2
Number of Wires 3
Special Features Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. 8 hole internal screw-pressure-plate back wire terminals accept #14 – #10 AWG solid or stranded copper or copper-clad conductors. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
Standard UL498, CSA C22.2 No. 42
UPC 785007526233
GTIN 00785007526233
Item Type Spec Grade Receptacle, Hard Use
Size 1.322 L x .780 W x 3.281 H
Environmental Conditions Flammability: UL94 V2
Temperature Rating -40° - 60° C
Voltage Rating 125
Wire Size 14 - 10 AWG
