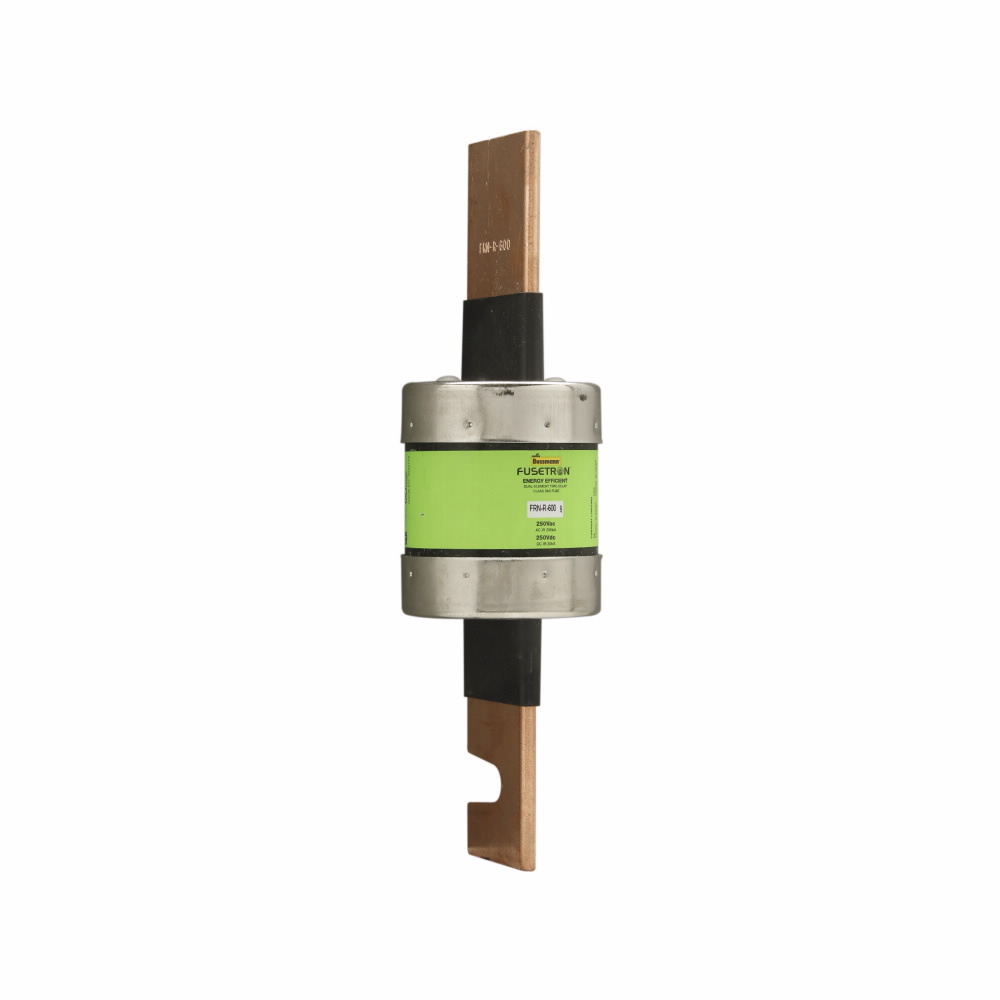

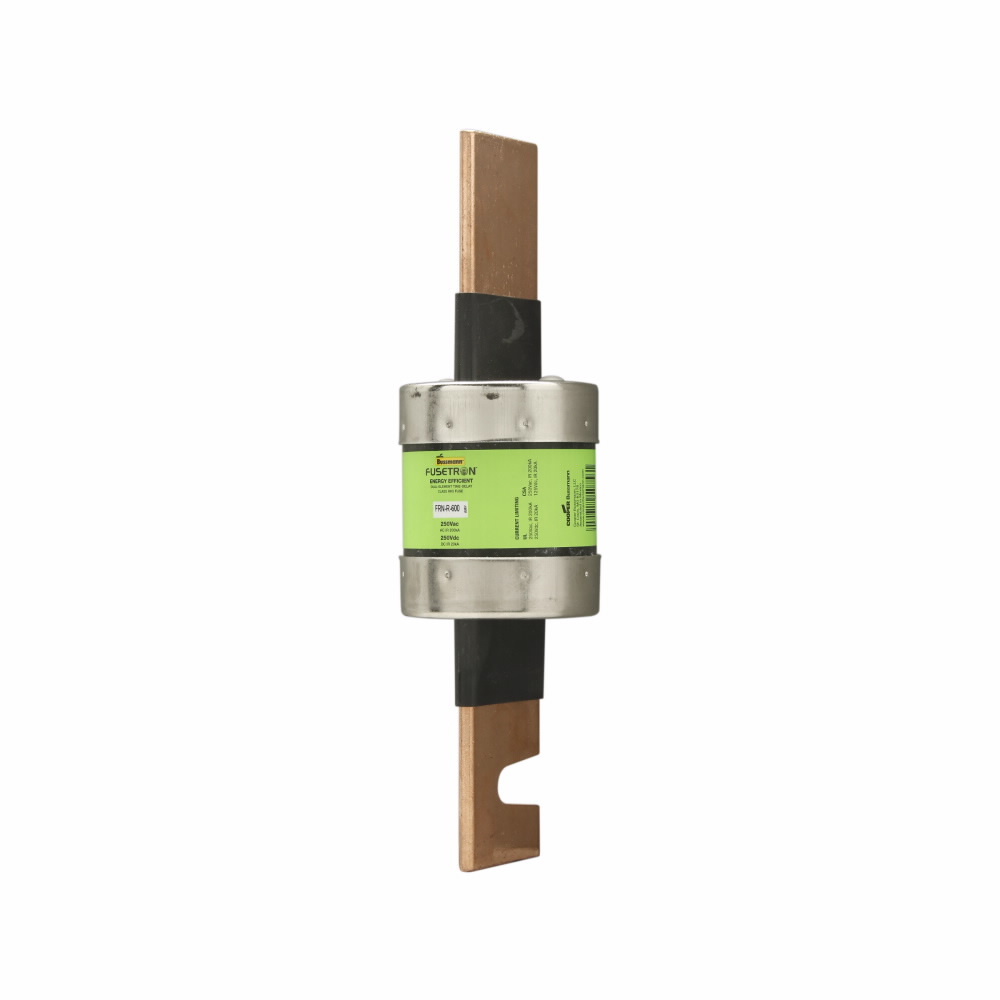

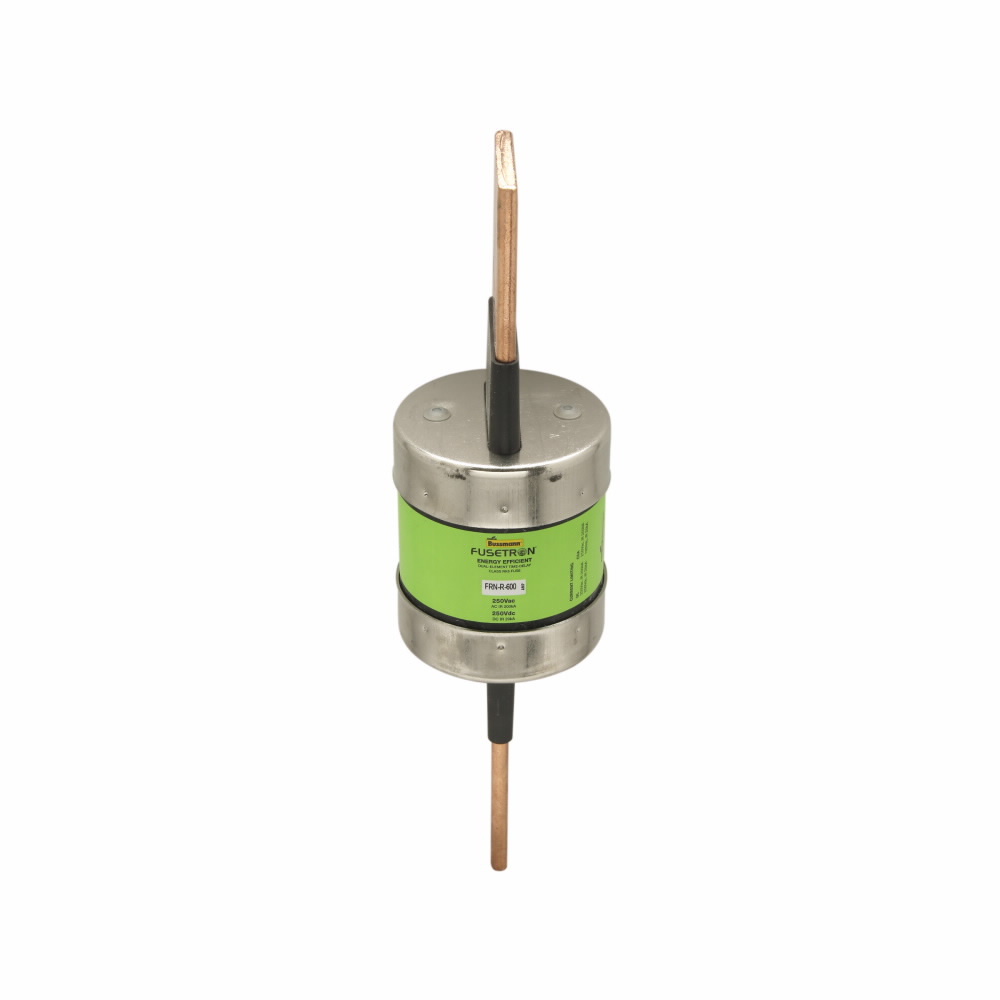

FRN-R-500 Fusetron Current Limiting Time Delay Fuse, 500 A, 250 V AC/125 V DC, 200/20 kAIC Interrupt, RK5 Class, Cartridge Body
- MFR:
- Eaton Bussmann
- MFR #:
- FRN-R-500
- UPC:
- 051712507554
- Item #:
- 436587
FRN-R-500 Fusetron Current Limiting Time Delay Fuse, 500 A, 250 V AC/125 V DC, 200/20 kAIC Interrupt, RK5 Class, Cartridge Body
- MFR #:
- FRN-R-500
- UPC:
- 051712507554
- Item #:
- 436587
Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500 of rated current (8 seconds for 1/10-30A sizes).
Manuals & Documentation
| Catalog Number | FRN-R-500 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 500 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Blade end x blade end |
| Interrupt Rating | 200 kAIC at 250 Vac|20 kAIC at 125 Vdc |
| Response Time | 10 S at 500% |
| Standard | CE Marked |
| UPC | 051712507554 |
| GTIN | 00051712507554 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 2.88 In Diameter X 10.38 In Length |
| Voltage Rating | 250 Vac, 125 Vdc |
