BLACKBURN MECHANICAL

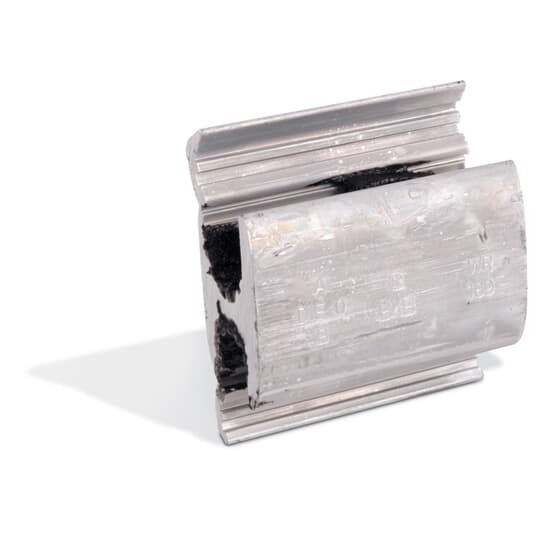

WR399 Blackburn Type H Wide Range Compression Tap Connector, H Shape, 4/0 to 3/0 AWG ACSR/Stranded Main/Run, 1 to 2/0 AWG ACSR, 1/0 to 2/0 AWG Stranded, 2/0 to 3/0 AWG Solid Tap, Aluminum

MFR:
ABB - Installation Products
MFR #:
WR399
UPC:
783786100101
Item #:
436423
Manuals & Documentation
Catalog Number WR399
Manufacturer ABB - Installation Products
Brand BLACKBURN MECHANICAL
Country of Origin Mexico
Made in USA No
Application For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Compression
Material Aluminum
Number of Conductors 2
Special Features Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard RUS Accepted. Complies with ANSI C119.4 Specifications
UPC 783786100101
GTIN 00783786100101
Item Type H-Type Compression Tap Connector
Size Length 2-3/16 inch
Environmental Conditions All Seasons / Conditions
Temperature Rating up to 90 C
Wire Size Main: 4/0 to 3/0 ACSR or 4/0 to 3/0 STR AWG , Tap: 2/0 to #1 ACSR or 2/0 to 1/0 STR or 3/0 to 2/0 SOL AWG
Cross Reference Products ABBInstall DB-4020|ABBInstall WR339|ABBInstall WR389|ABBInstall WR399|Burndy KDR30|Burndy YC26A25|Burndy YC28A2|Burndy YC28A25|Burndy YC28A26|Burndy YFD-365
