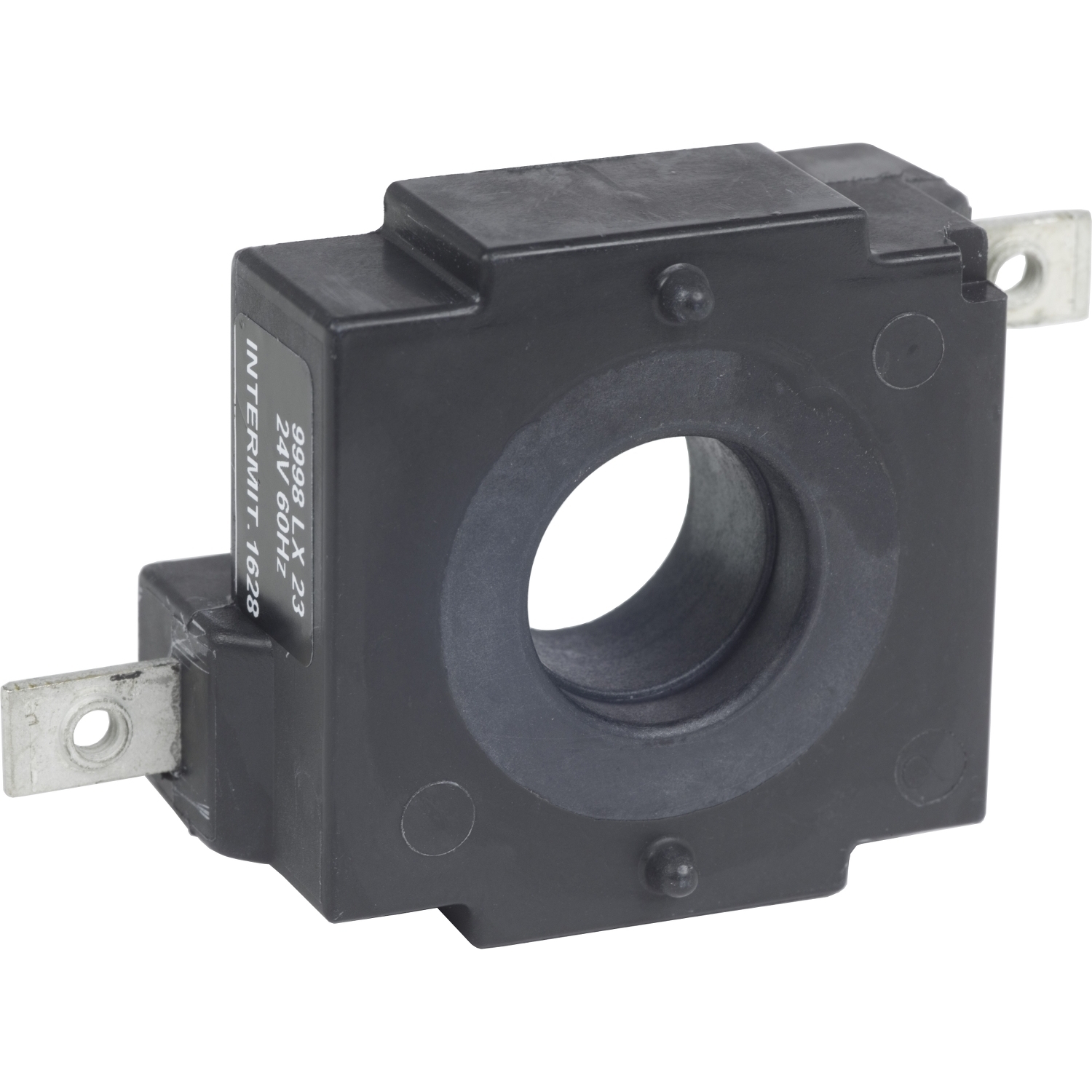

8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 LX mechanically held lighting contactor. By changing out the coil, the unlatch of the lighting contactor can be a different voltage. This will also save the cost of a whole new contactor if the coil were to fail. This unlatch coil is used in any 8903LX mechanically held lighting contactors. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 25 VA. This coil has a height of 1.75 inches, a width of 2.46 inches and a depth of 1.13 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
