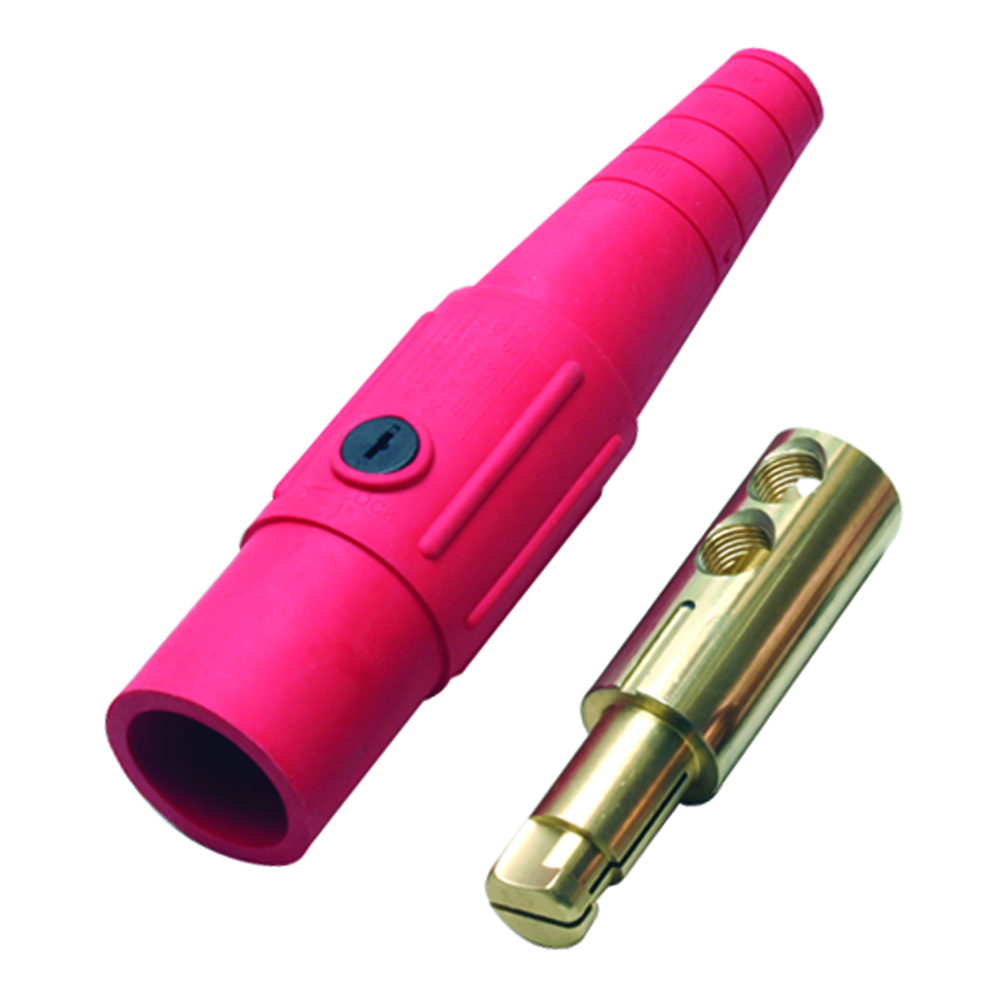

400A 600V MALE CAM TYPE PLUG

Catalog Number PS40MBR
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin Mexico
Made in USA No
Amperage Rating 400
Application Commercial/Industrial
Color Red
Material Thermoplastic Elastomer
Number of Poles 1
Special Features Thermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity. Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product. Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity. Heavy-duty hex set screws allow greater termination torque. Copper wire provides quality strain relief. Copper shim bundles wire strands to reduce "splaying."
Standard UL, cCSAus
UPC 785007308075
GTIN 00785007308075
Item Type Cam-Type Series 16 In-Line Connector Male
Size 6.875
Environmental Conditions Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
Voltage Rating 600
Wire Size 2/0 - 4/0
Cross Reference Products GEIndust 10000290011|GEIndust CLS40MBC|GEIndust E10168364|GEIndust HBL400MR
