Appleton

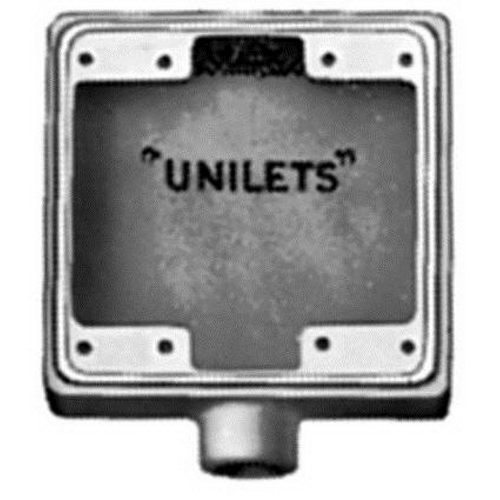

FD275 Unilets Type FD Deep Heavy Duty Device Box With Internal Ground Screw, Malleable Iron, 45 cu-in Capacity, 2 Gangs, 1 Outlets, 1 Knockouts, 4.63 in H x 4.63 in W x 2.69 in D

MFR:
Appleton Electric
MFR #:
FD275
UPC:
781381334303
Item #:
43564

UNILETS FD Deep Depth 2-Gang Cast Device Box, Number Of Outlet: 1, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (1) 3/4 IN Hub, Cubic Capacity: 45 CU-IN, Knockouts: No, Height: 4.63 IN, Width: 4.63 IN, Depth: 2.69 IN, Finish: Triple

Manuals & Documentation
Catalog Number FD275
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit And IMC
Cable Entry (1) 3/4 IN Hub
Cubic Capacity 45 CU IN
Knockouts No
Material Malleable Iron
Special Features Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
Standard UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
RoHS Indicator Contact Manufacturer
UPC 781381334303
GTIN 00781381334303
Item Type FD Deep Depth 2-Gang Cast Device Box
Length 1.7900
Length UOM Inch
Width 1.0600
Width UOM Inch
Height 0.7500
Height UOM Inch
Weight 3.190
Weight UOM Pounds
Size 3/4
