Appleton

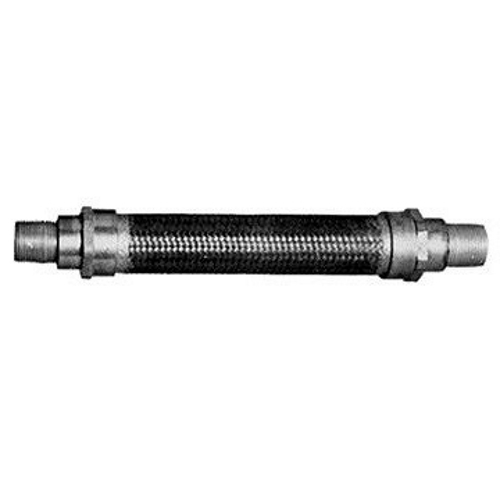

Explosion-Proof Dust Ignition Proof Flexible Conduit Coupling, 1 inch Diameter, 36 inch Flex Length, Bronze Braid/Brass Core, Natural

MFR:
Appleton Electric
MFR #:
EXGJH-336
UPC:
781381318600
Item #:
433587

UNILETS Flexible Coupling, Trade Size: 1 IN, Outside Diameter: 2.06 IN, Flex Length: 36 IN, Radius: 14 IN Bending, Flexibility: Rigid And IMC, Material: Outer Bronze Braid And Inner Brass Core With Insulating Liner, End Type: (2) Male Nipples

Manuals & Documentation
Catalog Number EXGJH-336
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Rigid Metal Conduit And IMC
Connection Female Threaded
Flexibility Rigid And IMC
Material Outer Bronze Braid And Inner Brass Core With Insulating Liner
Special Features Explosionproof, dust-ignitionproof, watertight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Heavy duty design resists mechanical abuse; Electrical conductivity equal to rigid conduit on a similar length basis no bonding jumper required; Interior insulating liner protects conductors from abrasion under vibrating conditions; Female end fitting with removable ductile iron union at one end and a female end fitting with a removable brass male nipple at the other end; Used in areas where vibration and movement is a problem, also used in place of rigid conduit in difficult-bend situations
Standard UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified, Class I, Division 1 And 2 and Class II, Division 1 And 2, Suitable for Class I, Groups C, D; Class II, Groups E, F, G; Class III
UPC 781381318600
GTIN 00781381318600
Item Type Flexible Coupling
Length 39.38
Length UOM Inch
Outside Diameter 2.06 IN
Trade Size 1 IN
